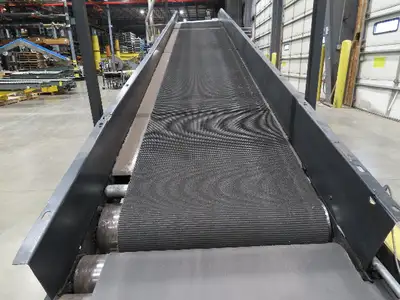

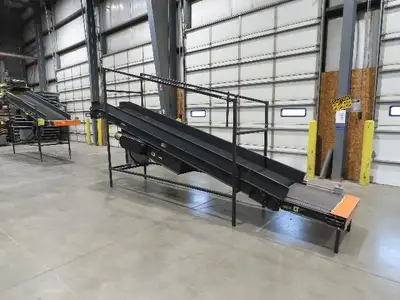

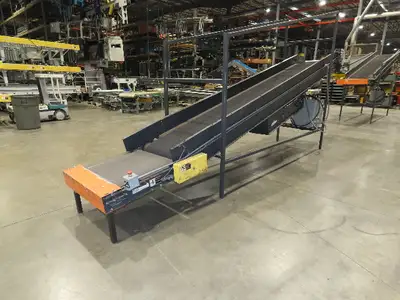

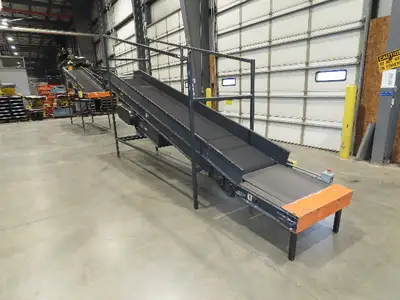

Alvey 28"x 17' Slider Bed 24" Belt Incline Conveyor Variable Speed Drive 460V

Conveyor In Good Used Condition.  Tested in our shop.

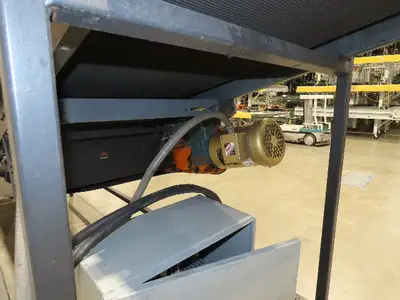

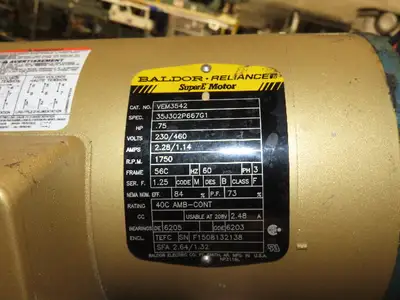

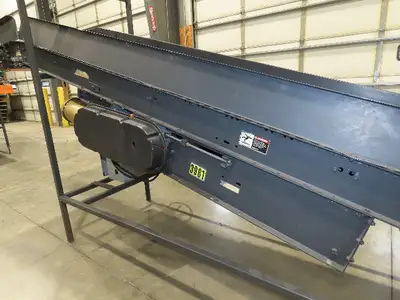

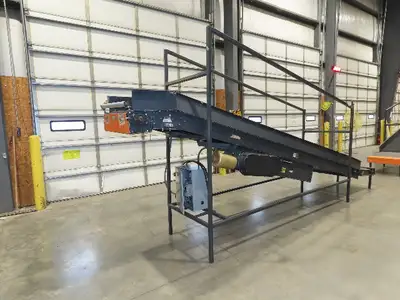

3/4Hp 230/460V 3-phase motor chain drive with 10:1 reducer.  (Left side drive)

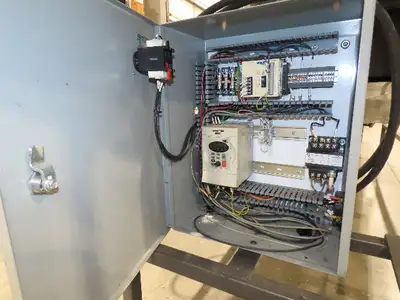

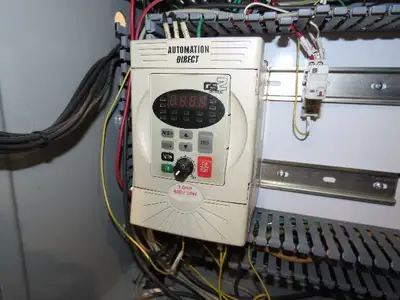

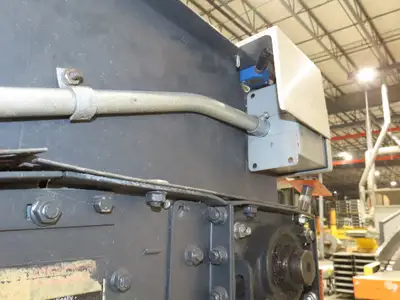

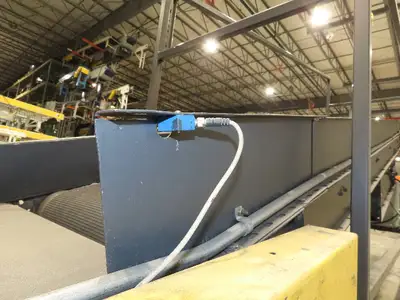

Set up with a GS2 VFD drive 3-phase input power.  Set up with photoeye sensors at bottom and top of incline to start and stop flow.
Max Belt Speed:  168 FPM (Infeed bed is 30 fpm faster)

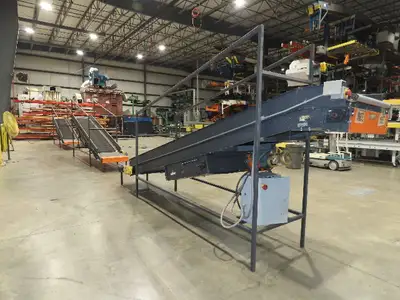

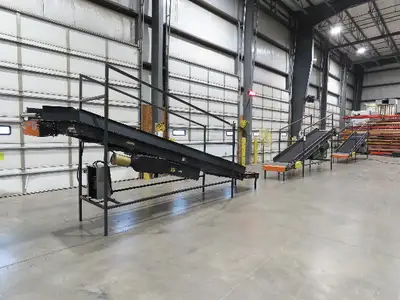

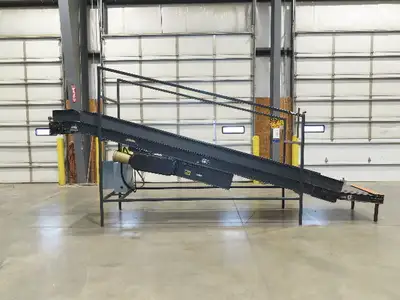

17' Overall length.  Incline flattens at the top.
Frame width: 30.5"  (28" inside width)

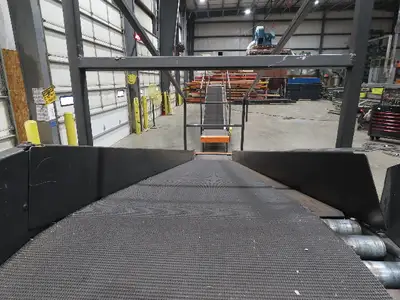

Belt width:  24"  (Tail pulleys:  26-3/4" length)

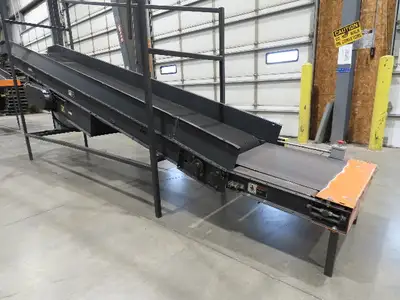

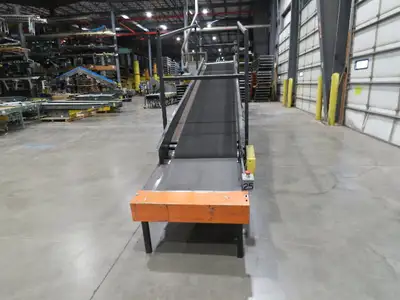

Infeed length:  32"
Infeed height:  17"

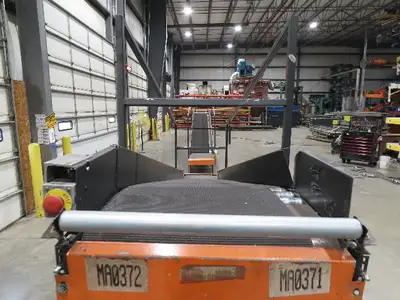

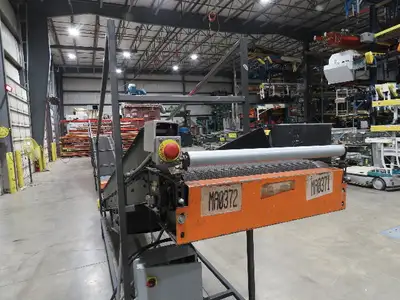

Discharge height:  64"
Skirting height:  7"
Frame height:  6-1/2"
Leg supports are 1-1/2" tube steel welded to the frame. Non-adjustable height.
Leg support frame is 37" wide x 10' 2" length x 96" height.  The cross bars over the conveyor bed are 21" clearance at the bottom and 17" at the top.
