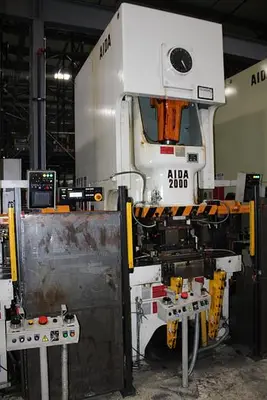

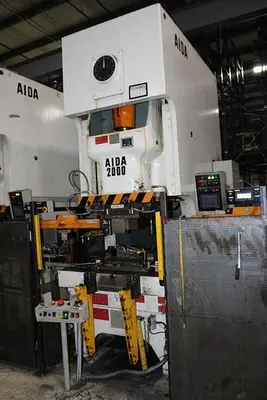

The AIDA NC1-2000(2)E is a sturdy 220-ton gap frame press ideal for metal forming and fabrication tasks. Manufactured in 2015, this used press boasts a stroke length of 9.8 inches and an adjustment capacity of 4.33 inches, complemented by a shut height of 17.72 inches. These features allow for flexibility in operational depths, catering to various fabrication requirements.

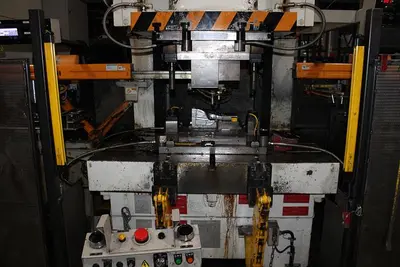

The machine incorporates a slide area of 34.6 inches by 25.6 inches and a bed area measuring 54.7 inches by 33.1 inches. It is equipped with an air clutch and brake system, air counterbalances, and hydraulic overloads, ensuring both efficiency and safety during operations. The inclusion of light curtains, die clamping mechanisms, and palm buttons emphasizes operator safety and streamlined usability.
Overall, the AIDA NC1-2000(2)E is a dependable and effective option for businesses looking to boost their manufacturing efficiency with a high-performance gap frame press.

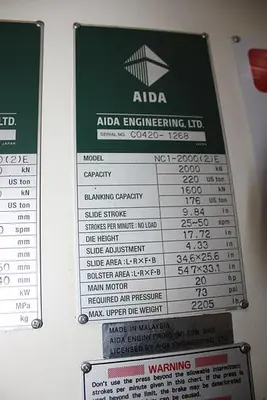

MODEL NUMBER: NC1-2000(2)E
SERIAL NUMBER: C0420-1268
MANUFACTURE YEAR: 2015
CAPACITY: 220 TONS
SLIDE AREA: 34.6" LR x 25.6" FB
BED AREA: 54.7" LR x 33.1" FB
LENGTH OF STROKE: 9.8"
STROKES PER MINUTE: 25-50
SHUT HEIGHT: 17.72"
SLIDE ADJUSTMENT: 4.33"
