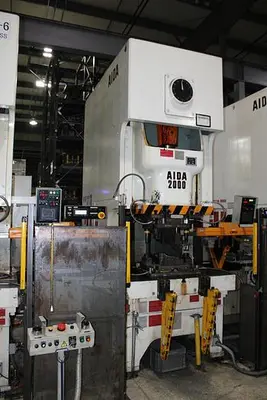

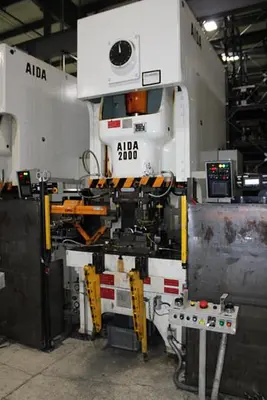

The 2015 AIDA NC1-2000(2)E is a rugged 220-ton gap frame press ideal for metal forming and fabrication tasks. This used model features a 9.8-inch stroke length with a 4.33-inch adjustment capacity and a 17.72-inch shut height, accommodating a range of operational depths.

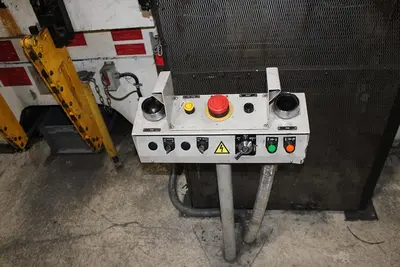

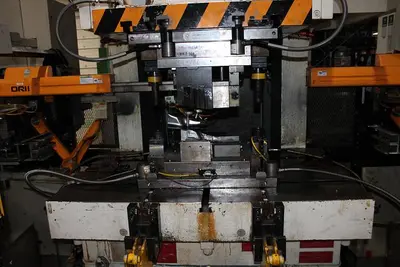

The press has a slide area of 34.6 inches by 25.6 inches and a bed area of 54.7 inches by 33.1 inches. Designed with safety and performance in mind, it includes an air clutch and brake system, air counterbalances, and hydraulic overloads. Operator safety is further assured with light curtains, die clamping mechanisms, and palm buttons.
The AIDA NC1-2000(2)E provides a reliable, high-performance solution for businesses aiming to enhance their manufacturing capabilities with a dependable gap frame press.

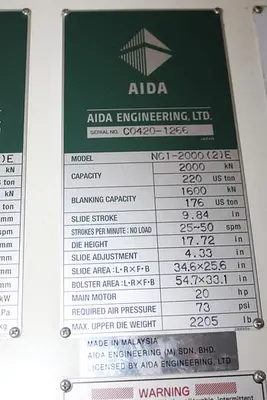

MODEL NUMBER: NC1-2000(2)E
SERIAL NUMBER: C0420-1266
MANUFACTURE YEAR: 2015
CAPACITY: 220 TONS
SLIDE AREA: 34.6" LR x 25.6" FB
BED AREA: 54.7" LR x 33.1" FB
LENGTH OF STROKE: 9.8"
STROKES PER MINUTE: 25-50
SHUT HEIGHT: 17.72"
SLIDE ADJUSTMENT: 4.33"
