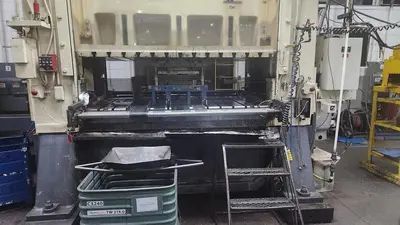

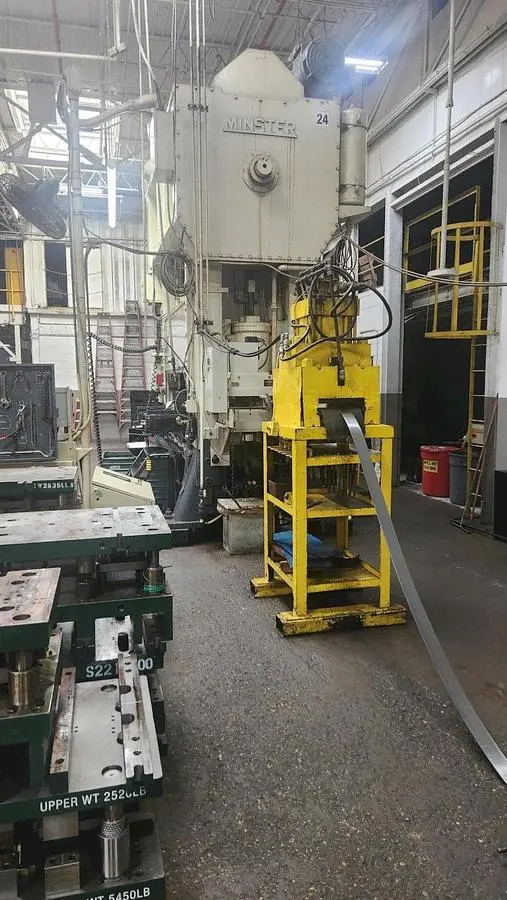

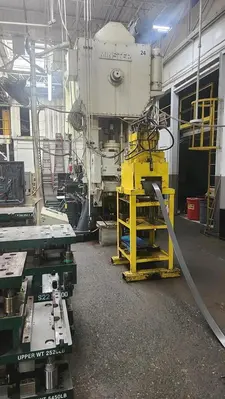

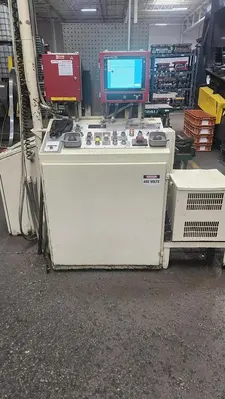

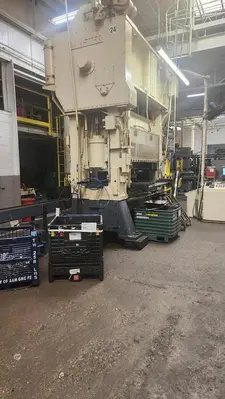

The 300-ton Minster Model E2-300-84-48 Hevi Stamper is a robust straight side mechanical press, ideal for heavy-duty industrial applications. Manufactured in 1985 and rebuilt in 2000, it features a 6" T-slotted bolster and advanced control systems including the Helm Loadgard Trend Series 4 TLG 4500 digital tonnage monitor, and a SmartPac Wintriss press control. For added efficiency, it includes a Data Instruments Dipro Sensor Interface System and a Pulse Spray stock lubricating system.
The press has a bed area of 84" left to right and 48" front to back, with a 4" stroke length and variable stroke rates of 0-80 per minute. The air clutch and air counterbalance systems enhance operational precision, and it is mounted on vibration isolator pads for stability. An additional Vamco Model 6-10LL roll feed offers a 10" programmable servo adjustable cam operation, boosting its versatility.
Included with the press is a Jaybird Model JCS-1266 combination coil cradle and straightener, which can handle coils up to 66" in diameter and weighs up to 10,000 pounds. It features a variable speed drive, a 3-roll straightener, serrated entry and exit pinch rolls, and a pneumatic tip-up table. Overall, this used machine offers substantial capabilities for metal stamping and forming tasks.
MODEL NUMBER: E2-300
SERIAL NUMBER: E2-300-26094
MANUFACTURE YEAR: 1985
CAPACITY: 300 TONS
BED AREA: 84" LR x 48" FB
LENGTH OF STROKE: 4"
STROKES PER MINUTE: 0-80 VARIABLE
SHUT HEIGHT ON BED: 26"
SLIDE ADJUSTMENT: 6"
WINDOWS: 26"
