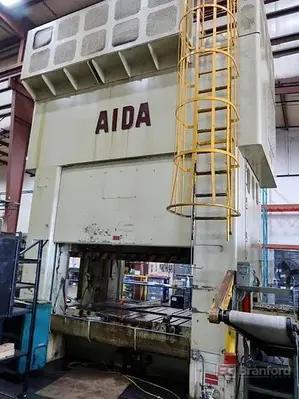

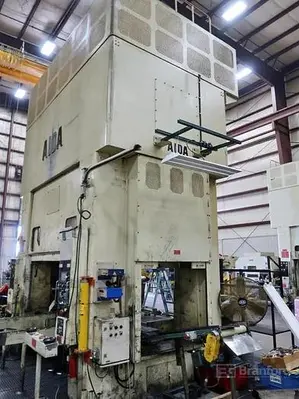

USED 1998 AIDA PMX-L2-6000(1)

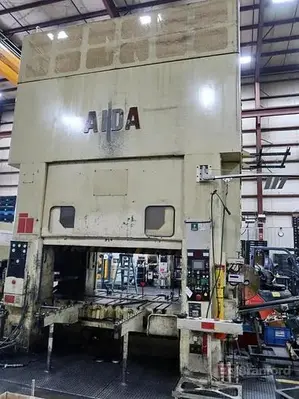

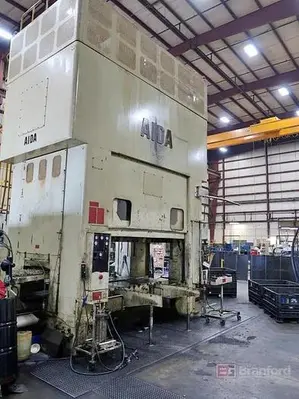

The AIDA Model PMX-L2-6000(1) is a used straight side mechanical press with a 600-ton capacity, designed for heavy-duty applications. With a stroke length of 9.84 inches and speeds between 30 to 70 strokes per minute, it offers production flexibility. It features a slide area of 96.45 inches by 49.21 inches and a bolster area of 96.45 inches by 55.11 inches, providing ample room for larger dies. The press is powered by a 90 kW motor, ensuring reliable performance for various industrial needs.

The machine is equipped with a die height of 29.52 inches and a slide adjustment of 5.90 inches, accommodating different die setups effectively. Sold "as is, where is," it is suitable for buyers familiar with industrial equipment who can manage installation and potential refurbishments themselves. The press promises robust performance, aligning with AIDA's quality standards.

The unit’s serial number is 12906-0753, further supporting its traceability and history. This high-capacity machining solution is ideal for businesses seeking cost-effective and reliable industrial equipment.

MODEL NUMBER: PMX-L2-600(1)-245-125
SERIAL NUMBER: 12906-0753
TYPE: LINK MOTION 2 POINT PRESS
CAPACITY: 600 TONS
RATED TONNAGE POINT: 0.39"
CONTINUOUS WORKING ENERGY: AT 40 SPM, 5000 KGF/M
INTERMITTENT WORKING ENERGY: 10,000 KGF/M AT 9 INTERMITTENT SPM & 40 CONTINUOUS SPM
LENGTH OF STROKE: 9.84"
STROKES PER MINUTE UNDER NO LOAD: 30-70
NUMBER OF INTERMITTENT STROKE: 9 SPM
MICRO-INCHING: 10 SPM (APPROX)
DIE HEIGHT: 29.52"
SLIDE ADJUSTMENT: 5.90"
SLIDE AREA: 96.45" LR x 49.21" FB

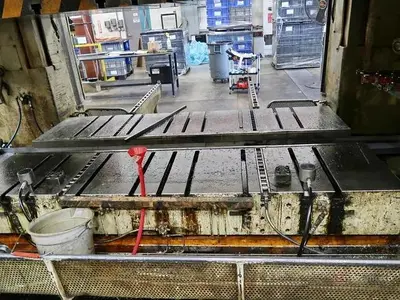

BOLSTER AREA: 96.45" LR x 55.11"
BOLSTER THICKNESS: 10.62"
FLOOR TO TOP OF BOLSTER: 33.46"
PRIME POWER SOURCE: 440V, 60HZ
CONTROL VOLTAGE: 100V
HEIGHT ABOVE FLOOR: 261.8"
WINDOWS: 50"
