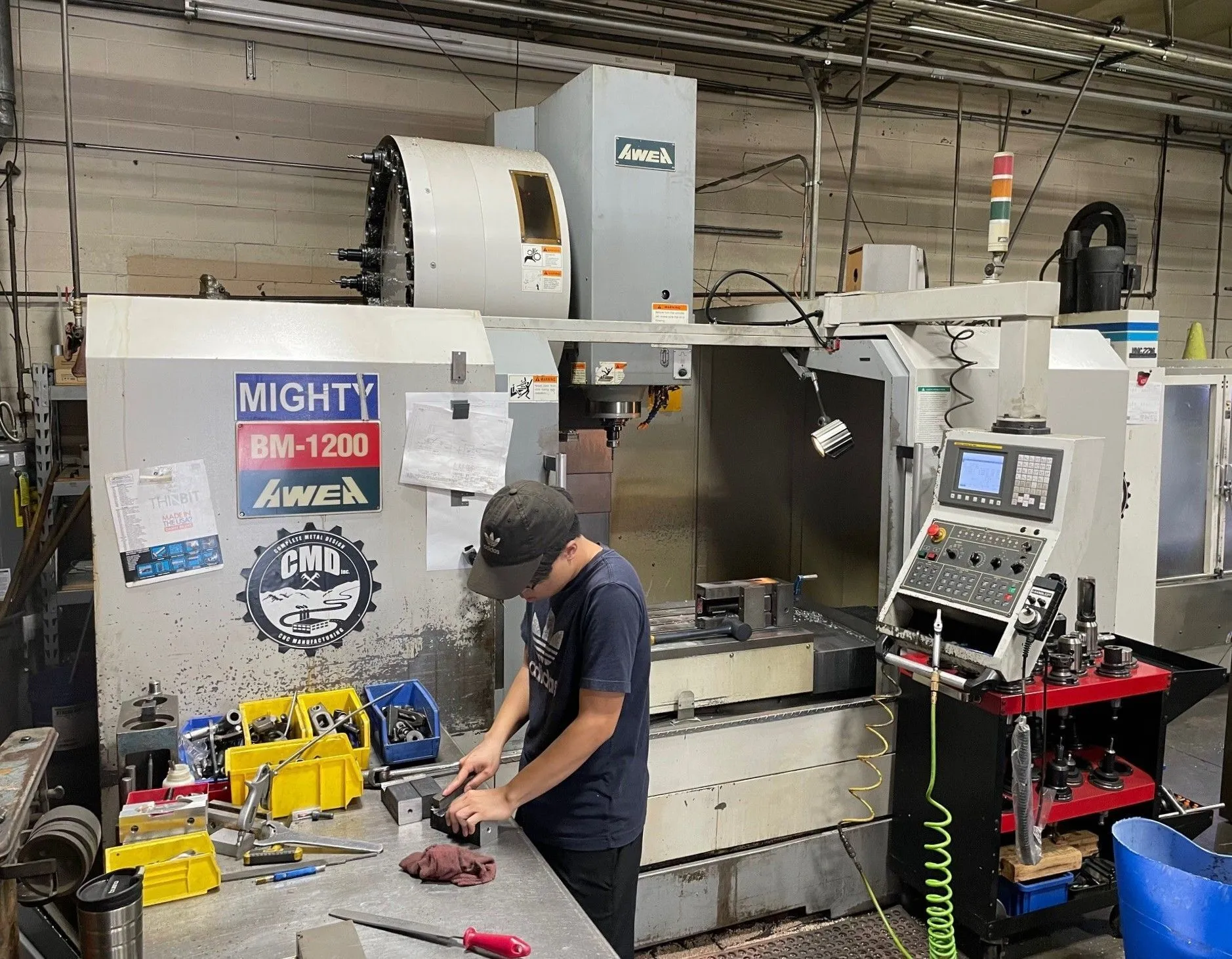

Fanuc 0i-MC Series Control, Chip Conveyor, New Tethered Jog Handle, New Internal Air Line Replaced
| X Axis Travel | 47.2" | 1,198.9 mm |
| Y Axis Travel | 23.6" | 599.44 mm |
| Z Axis Travel | 23.6" | 599.44 mm |
| Spindle Speed | 8,000 RPM | 8,000 RPM |
| ATC Capacity | 24 | 24 |
| Spindle Taper | CAT-50 | CAT-50 |
| Table-W | 23.62" | 599.95 mm |
| Table-L | 51.18" | 1,300 mm |
| Table dimensions | 23.62" x 51.18" | 23.62" x 51.18" |
| Max. Table Load | 2400 Lbs | 2400 Lbs |
| Control | CNC (Fanuc 0i-MC Series) | CNC (Fanuc 0i-MC Series) |
| Weight | 15000 | 15000 |
Fanuc 0i-MC Series Control
Chip Conveyor
New Tethered Jog Handle
New Internal Air Line Replaced
