USED 1996 PTC MPL-2-300-96 X 48

Safety note

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

Overview

Type:

Hydraulic Presses

Manufacturer:

PTC

Model:

MPL-2-300-96X48

Year:

1996

Stock #:

4734

Description

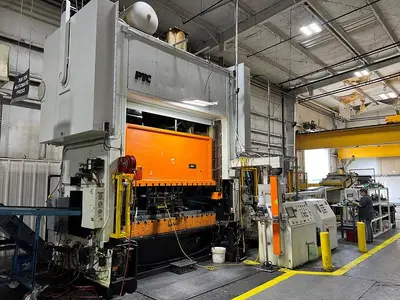

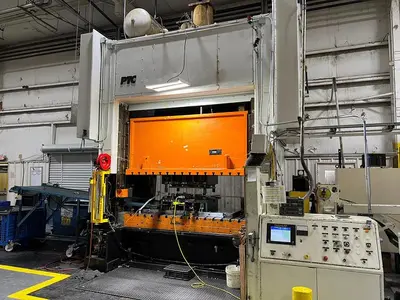

The PTC MPL-2-300-96 X 48 is a used straight side mechanical press with a robust capacity of 300 tons. Manufactured in 1996, this model features a stroke length of 12 inches and operates at a versatile speed range of 20 to 60 strokes per minute. The press includes a shut height of 30 inches and a slide adjustment range of 6 inches, allowing for precise customization to suit a variety of pressing requirements.

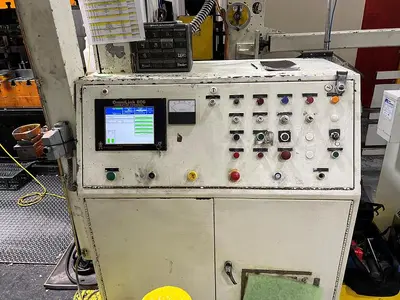

The press is equipped with an air clutch and brake system, ensuring smooth and efficient operation. An air counterbalance is also included to enhance performance. The bed area measures a spacious 96 inches by 48 inches, providing ample space for diverse industrial applications. Additionally, the machine features an Omni Link II touchpad control with an LED display, facilitating ease of use and adjustment for operators.

This PTC press includes a belt-type conveyor (24" x 12") which aids in streamlining workflow and material handling. Suitable for heavy-duty applications, this press is an ideal choice for those in need of reliable and efficient mechanical pressing solutions. Its durable construction and user-friendly features position it as a valuable asset for any industrial setting.

Floor standing
Approximate weight: 110,000 LBS

Specifications

RAM ADJUSTMENT: 6"
STROKES PER MINUTE: 20-60
MODEL NUMBER: MPL-2-300-96 X 48
YEAR NEW: 1996
LENGTH OF STROKE: 12"
SHUT HEIGHT: 30"
SLIDE ADJUSTMENT: 6"
FLOOR TO TOP OF BOLSTER: 36"
APPROXIMATE WEIGHT: 110,000 LBS
BOLSTER THICKNESS: 6"
