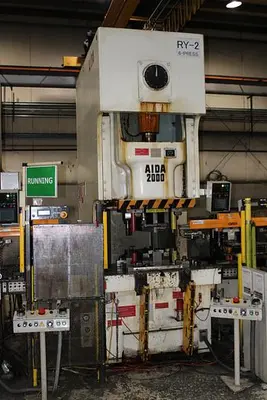

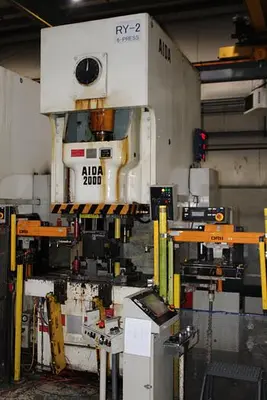

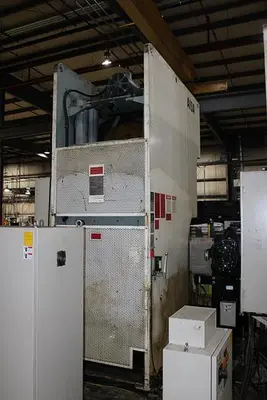

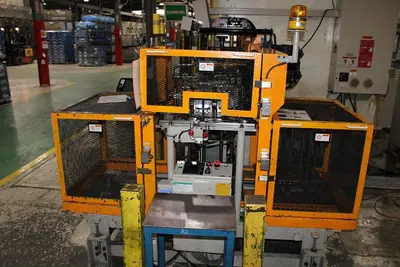

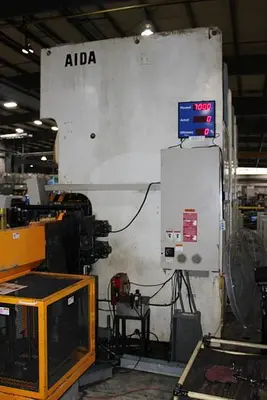

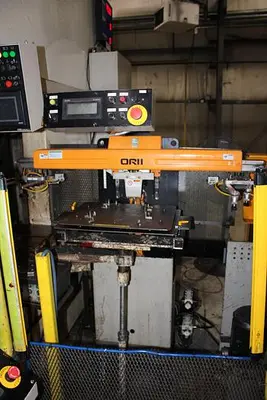

The 2007 AIDA Model NC1-2000(2)E is a used 220-ton gap frame press, well-suited for a variety of industrial applications. It features a hydraulic system with overload protection to ensure both safety and long-term durability. Additionally, the air clutch and brake, along with an air counterbalance system, enhance performance and maintain precision in fabrication processes.
This press boasts a stroke length of 9.84 inches and operates at a rate of 25 to 50 strokes per minute, offering efficiency and adaptability. It has a slide adjustment of 4.33 inches and a slide area measuring 34.6 inches by 25.6 inches, which accommodates diverse pressing requirements. The bed area, sized at 54.7 inches by 33.1 inches, further supports various operations.

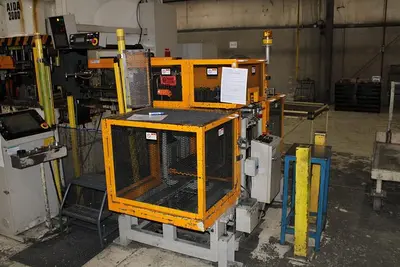

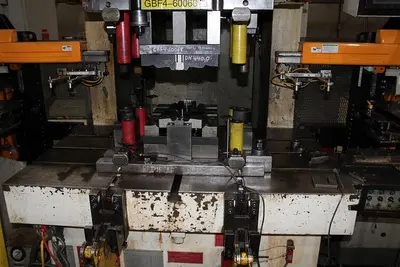

For safety, the press is equipped with palm buttons and light curtains, providing added protection for operators. It also features hydraulic die clamping, facilitating quicker and more reliable die changes to minimize downtime. The serial number C0420-0542 identifies this unit as a reliable choice for those requiring precision and reliability in pressing tasks.

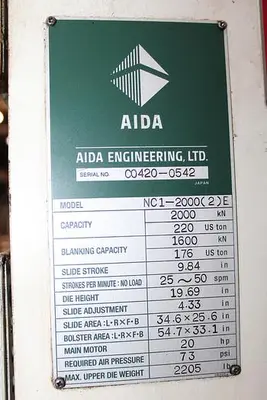

MODEL NUMBER: NC1-2000(2)E
SERIAL NUMBER: C0420-0542
MANUFACTURE YEAR: 2007
CAPACITY: 220 TONS
SLIDE AREA: 34.6" LR x 25.6" FB
BED AREA: 54.7" LR x 33.1" FB
LENGTH OF STROKE: 9.84"
STROKES PER MINUTE: 25-50
SHUT HEIGHT: 19.69"
SLIDE ADJUSTMENT: 4.33"
Die Cushion: Yes
