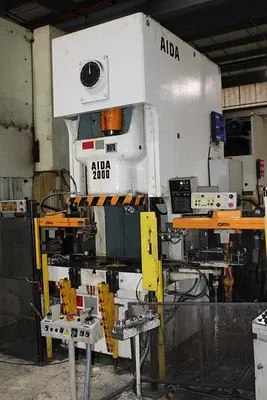

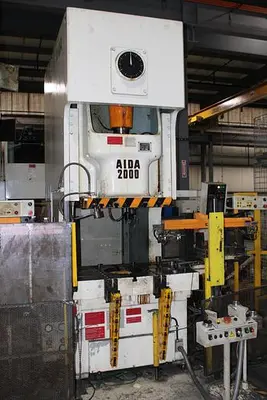

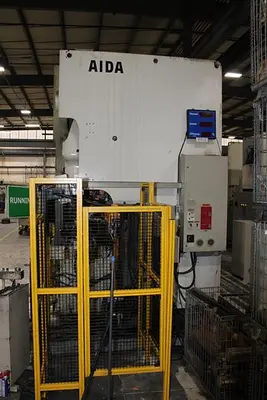

The 2010 AIDA Model NC1-200(2) is a reliable 220-ton gap frame press, designed for diverse industrial uses. This used press offers a stroke length of 9.84 inches and operates at cycle speeds ranging from 25 to 50 strokes per minute. It includes a slide adjustment capacity of 4.33 inches and a shut height of 17.72 inches, providing flexibility for various operations.

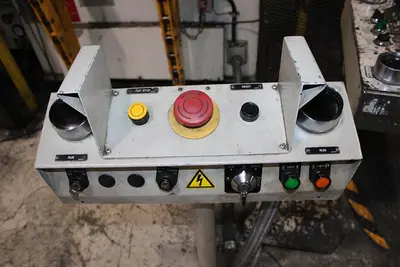

The press features a slide area of 34.6 inches by 25.6 inches and a bed area of 54.7 inches by 33.1 inches, facilitating a broad range of tasks. Enhanced safety and user-friendly elements include an air clutch and brake, air counterbalance, palm buttons, and light curtains. Hydraulic overloads and die clamping further improve control and convenience for operators.
Identified by serial number C0420-1315, this AIDA press is ideal for industries that prioritize precision and dependability. It stands out for its efficient operation and comprehensive safety feature set, ensuring both high performance and protection in demanding environments.
MODEL NUMBER: NC1-2000(2)E
SERIAL NUMBER: C0420-1315
MANUFACTURE YEAR: 2010
CAPACITY: 220 TONS
SLIDE AREA: 34.6" LR x 25.6" FB

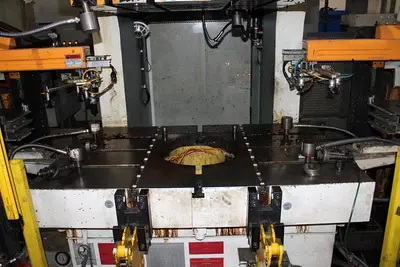

BED AREA: 54.7" LR x 33.1" FB
LENGTH OF STROKE: 9.8"
STROKES PER MINUTE: 25-50
SHUT HEIGHT: 17.72"
SLIDE ADJUSTMENT: 4.33"
Die cushion: yes
