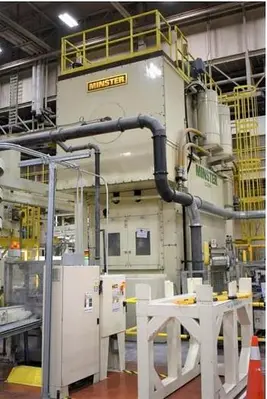

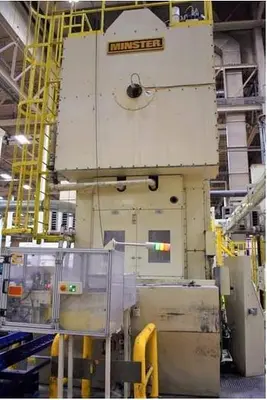

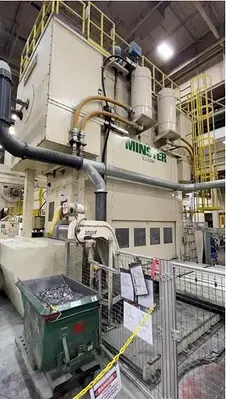

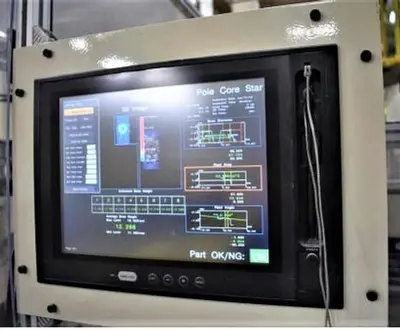

The Minster E2-1200 Eccentric Shaft Straight Side Transfer Press is a robust machine built for demanding industrial applications, offering a 1200-ton capacity. Manufactured in 2011, it features a 12" stroke, 44" shut height, and a slide adjustment of 12". The press has a generous bolster size of 120" LR x 60" FB, making it suitable for large-scale operations. Operating at a variable speed of 25-45 strokes per minute, it ensures efficiency and precision.

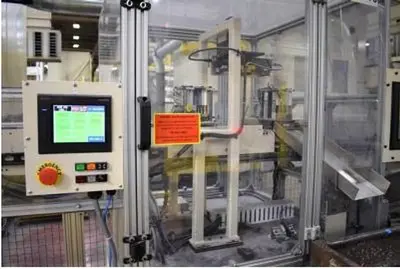

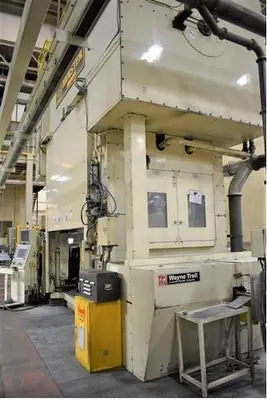

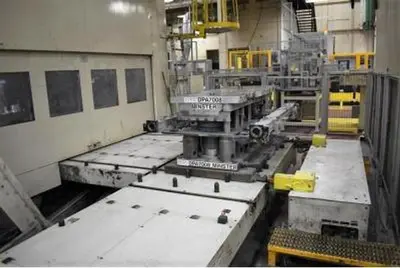

This used press comes equipped with valuable features such as an air clutch and brake, hydraulic overload protection, and a mechanical bed knockout system. It includes a 10.8" bolster plate and 63" wide windows. Additional features include automatic counterbalance adjustment, adjustable die safety blocks, and a bed draw cushion for enhanced performance. The unit is fitted with Wayne Trails Transfer feed and four Vibro-Dynamics isolator mounts, and it comes with a complete sound enclosure.
The Minster E2-1200 stands as a rare and reliable find in the market of heavy-duty presses. Specifications are subject to verification, and the availability can change, so a timely inspection is recommended.
STROKE: 12"
SPEED: 25-45
BED SIZE: 120 X 60
SDAU: 44"
RAM ADJUSTMENT: 12"
BOLSTER THICKNESS: 10.8"
FLYWHEEL ENERGY: 753 @ 25 SPM / 808 @ 45 SPM
WINDOWS: 63"
HYDRAULIC OVERLOAD PROTECTION: YES
BED KNOCKOUTS: MECHANICAL - EQUIPED
SLIDE KNOCKOUTS: 4 STATIONS
BED DEFLECTION: .001 PER FOOT
BED DRAW CUSHION: 1 STATION
CLUTCH: HYDRAULIC
TRANSFER: WAYNE TRAIL
ISOLATION MOUNTS: VIBRO DYNAMIC
