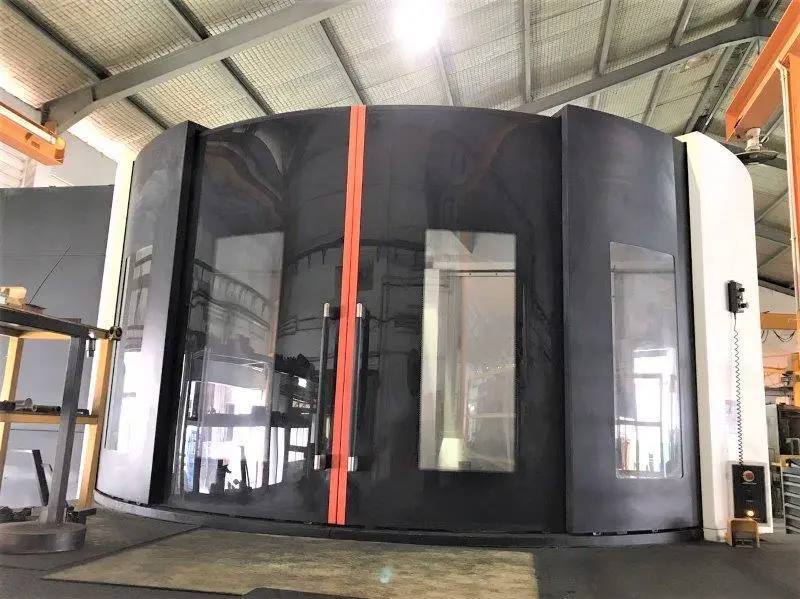

Mazatrol Matrix 2 5-Axis Control, ONLY 2500 Hours, CAT-50,
| X-Axis | 73.32" | 1,862.3 mm |
| Y-Axis | 41.73" | 1,059.9 mm |
| Z-Axis | 57.09" | 1,450.1 mm |
| W-Axis | 35.43" | 899.92 mm |
| Number of Pallets | 2 | 2 |
| Working Surface | 78.74" | 78.74" |
| # Axis | 5 | 5 |
| Spindle Motor | 50 hp | 37.3 kW |
| Spindle Speed | 10,000 RPM | 10,000 RPM |
| ATC Capacity | 120 | 120 |
| Taper | CAT-50 | CAT-50 |
| Table Load Capacity | 11023 lb | |
| Control | CNC (Mazatrol matrix 2 5-Axis) | CNC (Mazatrol matrix 2 5-Axis) |
| Dimensions | 260" X 385" X 205" | 260" X 385" X 205" |
| Weight | 127,000 | 127,000 |
AUTOMATIC PALLET CHANGER (2) PALLETS 55"
PALLET CHANGER SYSTEM ROTARY TYPE
PALLET {TURNING SPINDLE 300 RPM
PALLET LOAD CAPACITY 11,023 LBS
PALLET CHANGER TIME 25 SEC.
MAX WORKPIECE DIAMETER 78.74"
MAX WORKPIECE HEIGHT 56.69"
X-AXIS STROKE (LONGITUDINAL TABLE MOVEMENT) 73.82"
LESS THAN WORKPIECE DIAMETER 66.93"
67.91" WORKPIECE DIAMETER 66.93" OR LARGER
Y-AXIS STROKE ( CROSSWISE SPINDLE MOVEMENT 41.73"
Z-AXIS STROKE ( VERTICAL SPINDLE MOVEMENT) 57.09"
W-AXIS STROKE (RAM SPINDLE MOVEMENT) 35.43"
RAPID TRAVERSE X/Y/Z 1654/1181 IPM
B/C TRAVEL 150/360 DEG.
DISTANCE FROM THE CENTER OF B-AXIS ROTATION TO THE CENTER OF PALLET
X-AXIS ZERO POINT 64.96"
X-AXIS MINUS STROKE END 8.86"
LESS THAN WORKPIECE DIAMETER 66.93"
2.95" WORKPIECE DIAMETER 66.93" OR LARGER
DISTANCE FROM THE SPINDLE NOSE TO THE CENTER OF PALLET B-AXIS = +90 DEG.
X-AXIS ZERO POINT 53.15"
DISTANCE DROM THE CENTER OF B-AXIS ROTATION TO THE TOP SURFACE OF PALLET
3.94" TO 61.02"
DISTANCE FROM THE SPINDLE NOSE TO THE TOP SURFACE OF PALLET B-AXIS=0 DEG.
-7.87 TP 49.21"
MILL SPINDLE NOSE TYPE 7/24 TAPER, NO. 50
MILL SPINDLE SPEED 25 TO 10,000 RPM
NUMBER OF MILL SPINDLE SPEED CHANGE RANGES 2 STEPS (ELECTRIC)
I.D. OF MILL SPINDLE BEARING 3.94"
MILL SPINDLE DRIVE MOTOR AC INVERTER MOTOR 50 HP
RAM SPINDLE NOSE TYPE HSK-63
RAM TOOL STORAGE CAPACITY {RAM SPINDLE 40
RAM SPINDLE SPEED 3,000 RPM
RAM SPINDLE DRIVE MOTOR (AC INVERTER MOTOR) 10 HP
MACHINE DIMENSIONS 260" X 385" X 205" TALL
MACHINE WEIGHT 127,000 LBS
ONLY 2500 Hours
Mazatrol Matrix 2 5-Axis Control
EIA
High Smoothing Control
Spiral
EIA 3D Comp.
Rotation, Geometric
Scaling
EXT-Data I/O
High-Speed
Shape Comp.
Thread, Dynamic Comp.
3D
Co-or Rot.
Auto TLM
Polar Coordinates
Comparison Stop
Sync. Cont.
Spline
G65.1
Spline
Sync. Mill Tapping
Inch/mm Convert. Cylinder
Simultaneous 5-Axis
EIA-Helical Tap Cycle
EIA-Pattern Cycle
Tilted Working
Table Unbalance Detect
5-Axis Tool Comp.
Auto Pecking
Tool Center-Point
Thread Start Point Comp.
Re-Thread
Program memory Expansion
Mill-Turning Mazatrol,Thread Cut-Speed Override
5-Axis Spline
120 Position Automatic Tool Changer
Chip Conveyor
Coolant System. Laser Part Probing System
