USED 2000 SUTHERLAND SP2-D300-120-60-12

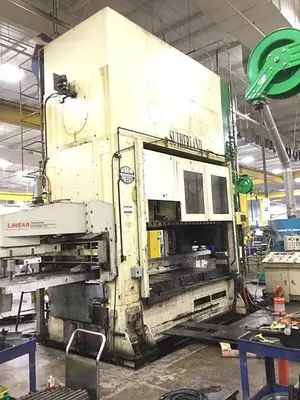

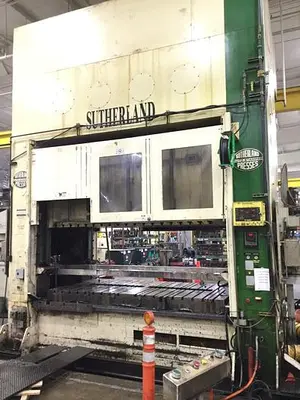

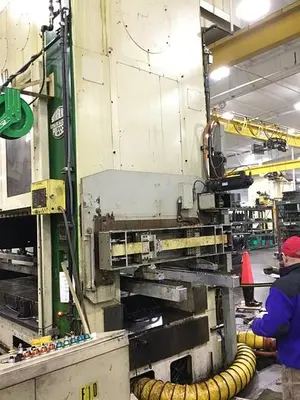

This used 2000 Sutherland SP2-D300-120-60-12 is a robust 330-ton straight side mechanical press featuring a double crank and 8-point gibbing. Notably, the crown was rebuilt in 2019, accompanied by a remanufactured gearbox with new gears and reworked clutch and brake systems. The equipment includes updated locking devices, main bearing refitting, and a meticulous crankshaft cleaning and polishing. A full inspection of the crown revealed no cracks, and the press comes with a six-month warranty on the torque box and clutch work.

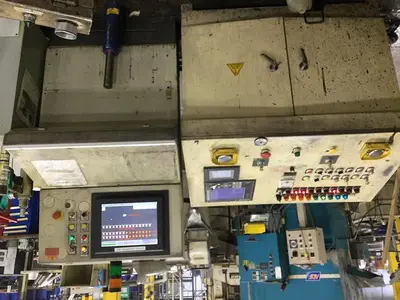

The machine operates with an air clutch and brake system, featuring a free-standing control console, Wintriss SmartPAC 2, T-slotted slide and bolster on 6" centers, and palm buttons for ease of use. Additionally, it includes a recirculating lubrication system for improved maintenance efficiency. With a stroke of 12 inches and a speed range of 30 to 60 strokes per minute, this press offers reliability and performance in demanding industrial settings.

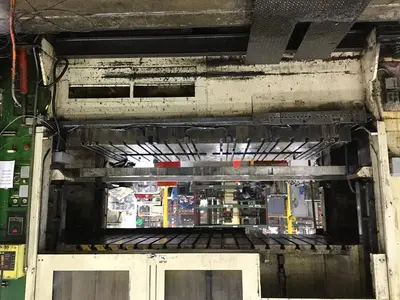

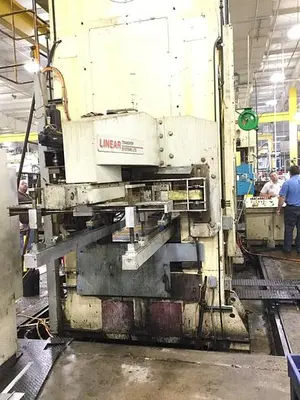

The press has a bed and slide area of 120" x 60" and a bolster plate measuring 120" x 60" x 7.6" thick. It stands at approximately 236 inches tall and weighs an estimated 165,000 lbs. For those requiring enhanced capabilities, a linear transfer system is available at an additional cost.

Conditon: Used
Capacity: 330 TONS @ .5" ABOVE BOTTOM
Stroke: 12"
Shut height over bolster: 30" S.D.A.U.
Slide adjustment: 10"
Bed area: 120" LR x 60" FB
Slide area: 120" LR x 60" FB
Bolster plate: 120" LR x 60" FB x 7.6" THICK
Speed: 30-60 SPM
Approximate overall dimensions: 174" LR x 96" FB x 236" ABOVE FLOOR
Estimated weight: 165,000 LBS
