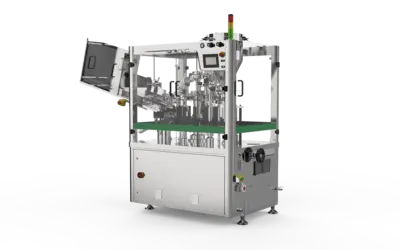

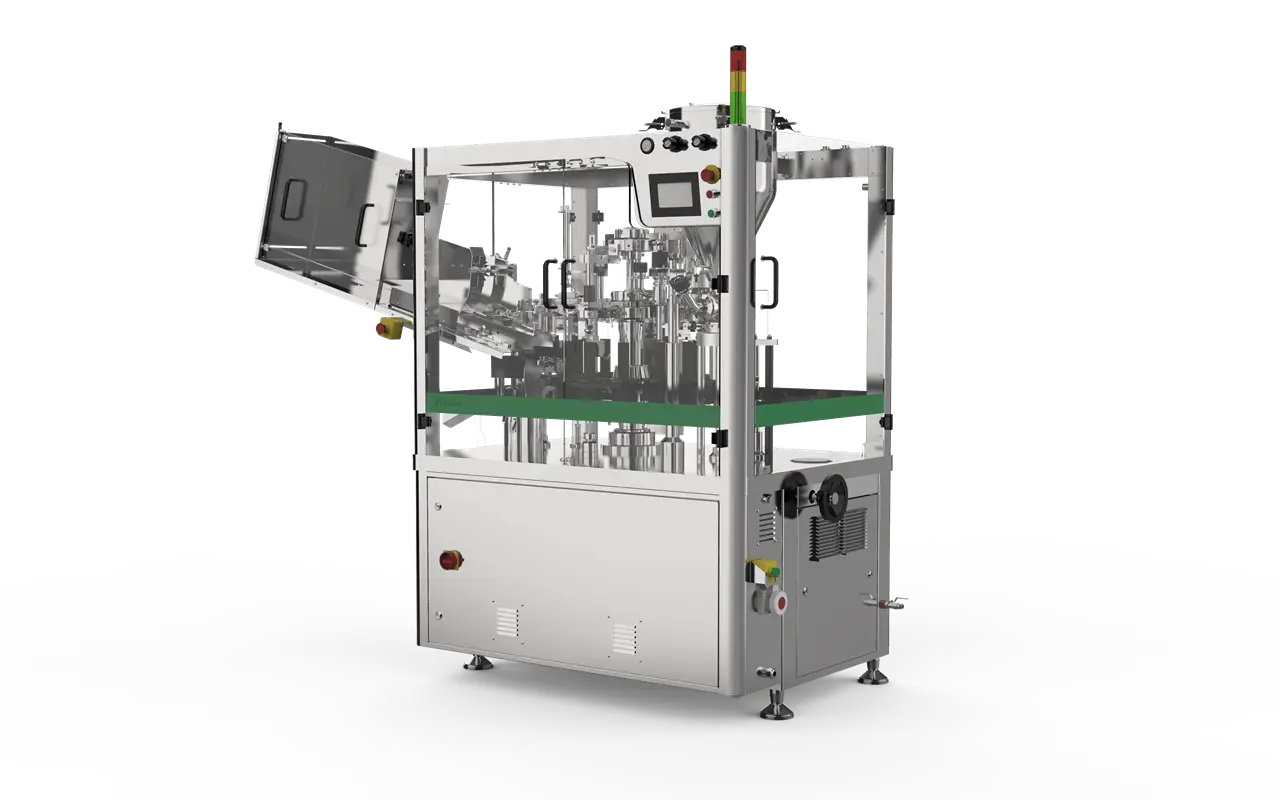

NEW BUSCH MACHINERY BMZF-60B
Overview
Description
The Aluminum Tube Filling and Sealing Machine can be used in pharmaceutical, food, cosmetic, and daily chemical industries to fill ointment or viscous fluid materials into aluminum tubes. It folds, seals the tube tails, and can print batch numbers & production dates on tubes.
Fulfills tube feeding, marking identification, filling, fold sealing, code printing, and finished product ejection through an automatic control system.
Adopts a touch screen and PLC control system. Non-contact operation. Easy to operate.
Compact configuration. Automatic tube feeding. Fully-enclosed conveyer part.
Tube feeding is conducted pneumatically via a vacuum device.
Multiple edge folding ways. Can get a double fold, three-time fold, or saddle-type fold on the same machine by adjusting or replacing the robot hand.
Filling volume 5-150ml（tube）
Filling accuracy ≤±1%
Capacity 1800-3000(tubes/hour Adjustable）
Tube diameter ф10- 32mm
Tube length 185mm (Max. Length)
Hopper volume 40 L
Power 380/220V (Optional)
Compressed Air 0.5-0.7MPa
Power 2Kw
Dimension 1900×850×1900mm LxWxH
Weight (Approx) 850kgs
