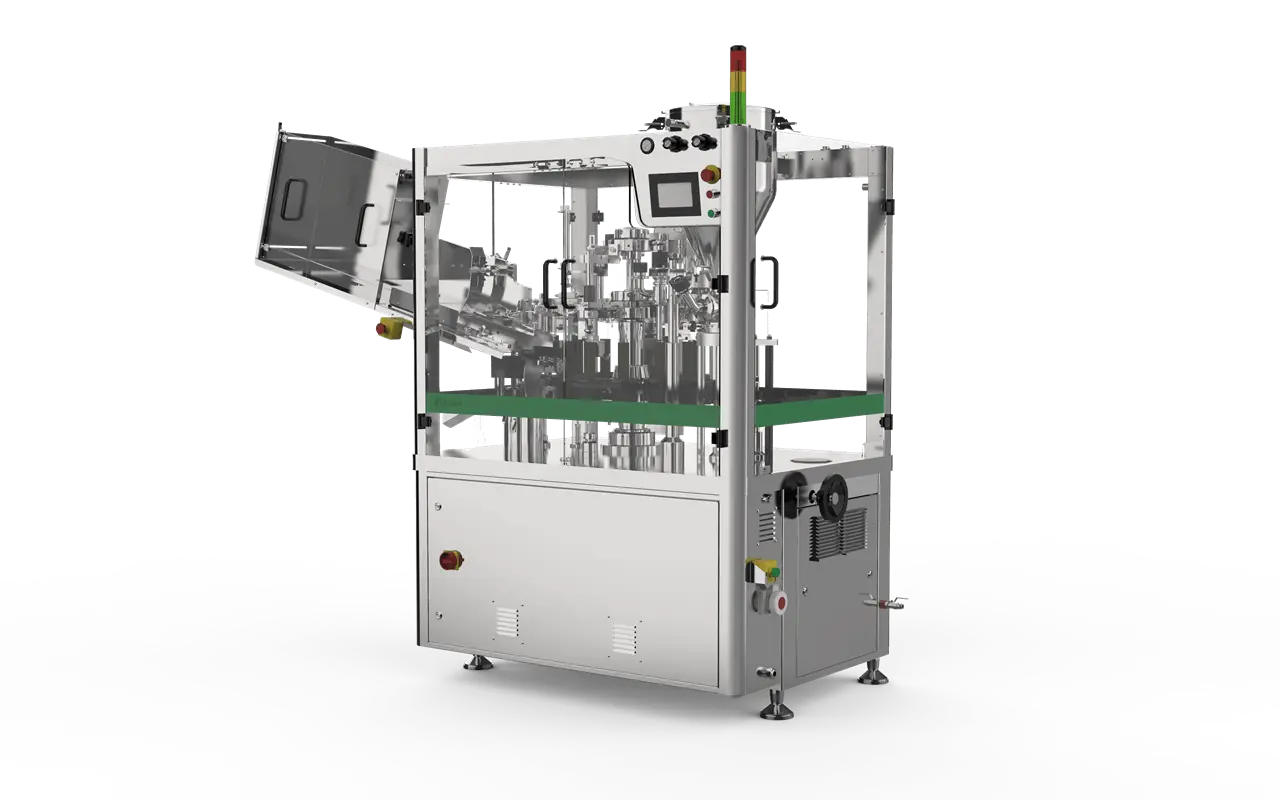

NEW BUSCH MACHINERY BMZF-80B
Overview
Description
Aluminum Tube Filling and Sealing Machine can be used in the industries of pharmaceutics, foodstuffs, cosmetics, and daily chemicals for smoothly and accurately filling all kinds of pasty and viscous fluid and materials alike, into metal tubes and then carrying out tube end folding, sealing, and lot number embossing.
With a touch screen and PLC control system, it is convenient and reliable. Compact design and auto tube feeding.
Tube washing and feeding, marking identification, filling, folding, sealing, code embossing, and finished product output are all conducted automatically.
Tube feeding is conducted pneumatically, accurately, and reliably.
Filling volume 5-200ml(tube)
Filling accuracy ≤±1%
Capacity 1800-4800 tubes/hour (Adjustable)
Tube diameter ф13- 40mm
Tube length 75-210mm (Max. Length)
Hopper volume 40 L
Power 380/220V (Optional)
Dimension 2390×1180×2140mm LxWxH
Weight (Approx) 1500kgs
