19.7" x 19.7" BEHRINGER "HPB-513A" AUTOMATIC HEAVY-DUTY DUAL-COLUMN HORIZONTAL BAND SAW - Bundling Capabilities - 20" Rounds - 29.5" Single Stroke Feed - 2012
| Rect-Cap (H) | 19.7" | 500.38 mm |
| Rect-Cap (W) | 19.7" | 500.38 mm |
| Rounds-Cap | 20" | 508 mm |
| Square-Cap | 19.7" | 500.38 mm |
| Power | 7.4 hp | 5.5 kW |
| Type (Auto, Manual, Semi) | 'Auto' | 'Auto' |
| Blade Width | 2" | 50.8 mm |
| Blade Thickness | 0.063" | 1.6002 mm |
| Blade Length | 252" | 6,400.8 mm |

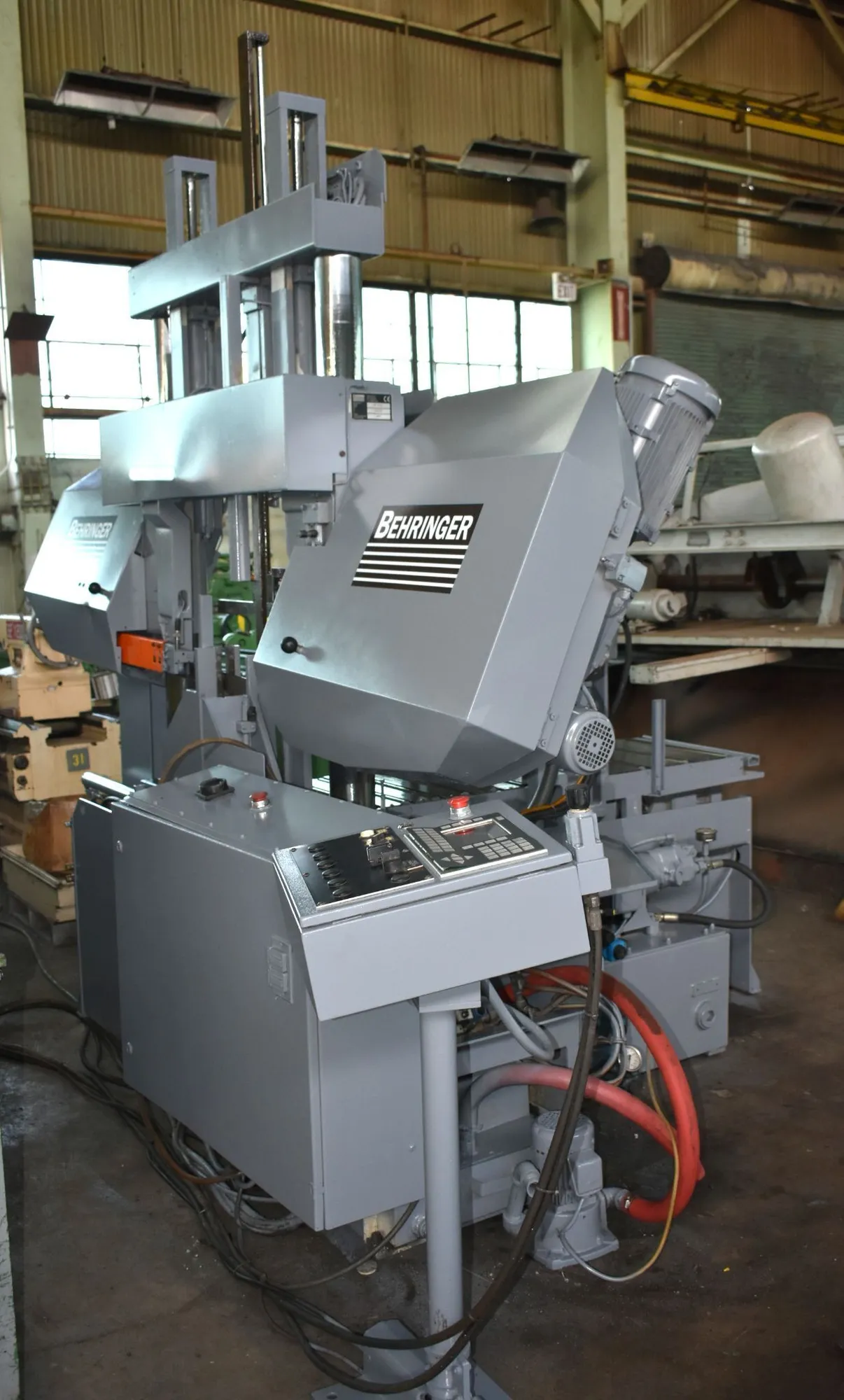

19.7" X 19.7" BEHRINGER AUTOMATIC HORIZONTAL BAND SAW
New 2012, Serial No 10003878, Model HBP513A
EQUIPPED WITH:
Bundling Capabilities
Multi-Stroking
Twin Pillar Design
Double Vise Arrangement
Automatic-Driven Stock-Feed Table
Hydraulic Band Saw Up-Feed & Down-Feed
Automatic Hydraulic Band Tension
Automatic Swarf/Chip Conveyor
Coolant System (Built-In)
CATALOG SPECIFICATIONS:
Flat Stock Capacity, Maximum 19.7" x 19.7"
Square Stock Capacity, Maximum 19.7" x 19.7"
Rounds Capacity, Maximum 20"
Band Length 21'
Band Width 2"
Band Thickness .063"
Blade Speeds, Infinitely Variable 65 To 460 FPM
Feed Length, Single Stroke 29.5"
Feed Length, Multi-Stroke, 265"
Blade Motor, Horsepower 7.4 HP
Floor Space Required, L x W 124" 92"
Overall Height 100"
Weight, Approximately 6600 LBS
F.O.B. OUR WAREHOUSE
