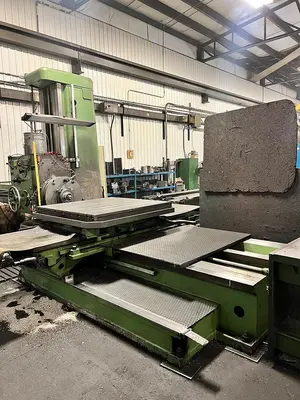

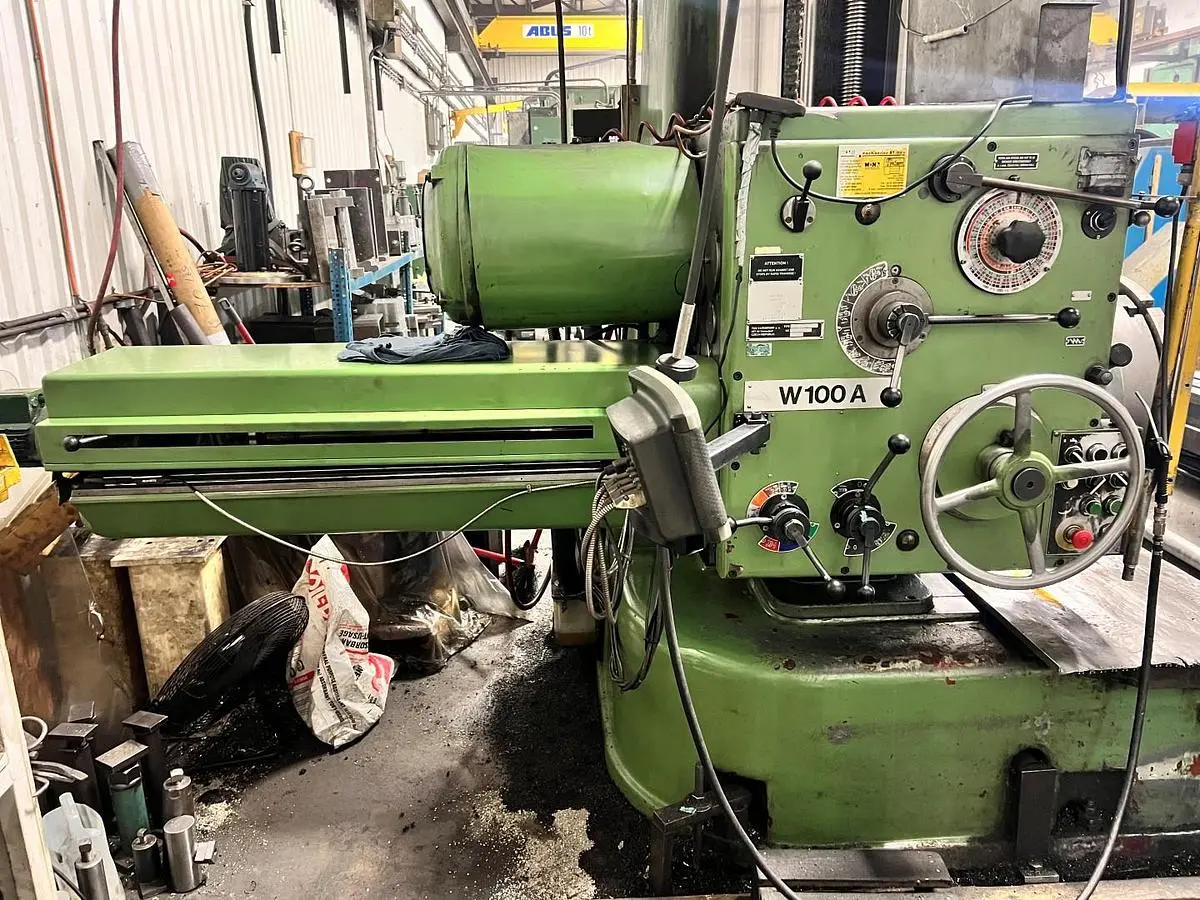

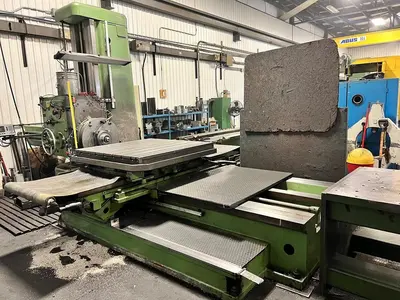

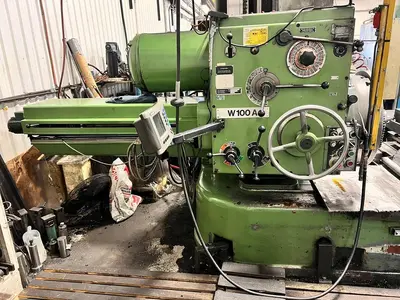

The TOS W100A Horizontal Boring and Milling Machine is a heavy-duty, precision-engineered solution for large-scale machining. Equipped with a 100 mm spindle diameter and Morse 6 taper, this machine delivers reliable performance for demanding industrial applications. Featuring a 1250 x 1250 mm table with a 3000 kg load capacity, it offers generous travel distances (X: 1250 mm, Y: 1600 mm, Z: 1180 mm) to handle oversized components with accuracy. With 23 spindle speed ranges (7.1 – 1120 RPM) and 32 feed rates, plus a Acu-Rite DRO, the TOS W100A ensures versatility, control, and efficiency. Built to last with a net weight of approx. 17,500 kg, this horizontal boring mill is ideal for shops seeking durability, precision, and productivity in one machine.
Spindle Diameter: 100 mm (3.94 in)
Spindle Taper: ISO 50
Spindle to Table Distance: 1120 mm (44.09 in)
Max Distance Between Faceplate and Back Rest: 2800 mm (110.23 in)

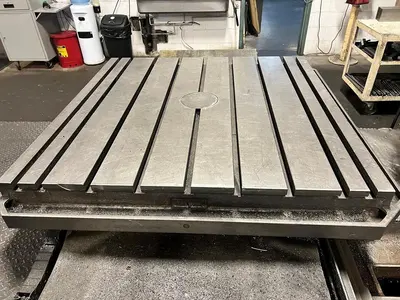

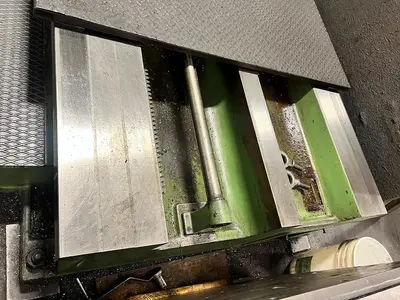

Table Size: 1250 x 1250 mm
Max Permissible Loading of Table: 3000 kg (6600 lbs)
X- Longitudinal Travel of Saddle: 1250 mm (49.21 in)
Y- Vertical Travel of Spindle Head: 1180 mm (46.5 in) approx
Z- Cross Travel of Table: 1600 mm (63 in)
Spindle Speeds: 23 ranges, 7.1 – 1120 RPM
Feeds: 32 feed rates, 0.000787 – 0.4724 in/rev; multiple power feeds
Approx. Weight: ≈ 17,500 kg (38,500 lbs)

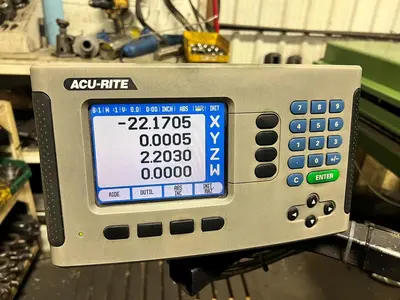

4 Axis Acu-Rite DRO

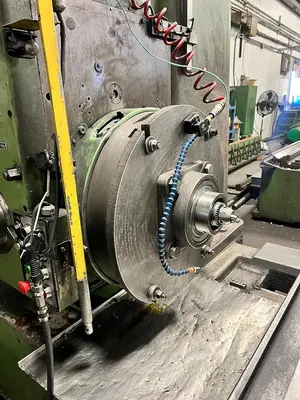

Built-in Facing head
Built-in Rotary table
