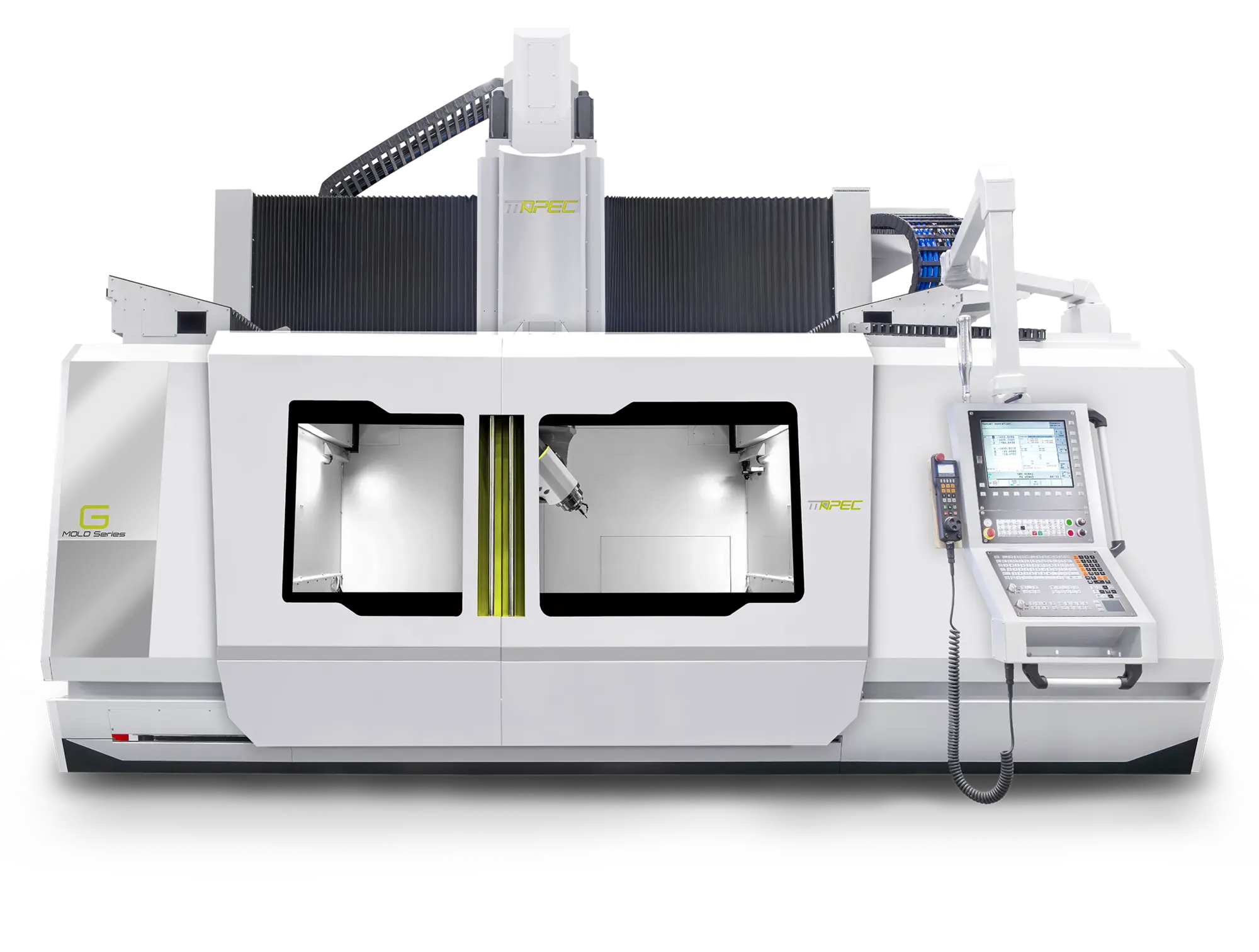

The APEC G3050 is a state-of-the-art 5-axis high-speed gantry machining center designed for large-scale, high-precision applications in industries such as aerospace, automotive, mold, and heavy equipment manufacturing. With a massive X-axis travel of 5,000 mm, Y-axis travel of 3,000 mm, and Z-axis travel of 1,200 mm, it provides exceptional machining capacity for oversized workpieces while maintaining superior accuracy. Equipped with an HSK100A spindle capable of reaching 15,000 RPM and delivering up to 54 kW of power and 143 Nm of torque, the G3050 ensures reliable cutting performance across aluminum alloys, composite materials, and complex mold components.
The dual-axis milling head (A/C) features direct-driven motors with ±125° swivel and full 360° rotation, enabling precise undercut and freeform surface machining with outstanding rigidity. Its gantry-type structural design provides increased stability, compact footprint, and excellent cutting rigidity. The G3050 is powered by linear motor drives on the X and Y axes, delivering rapid feed rates of 60 m/min, while the Z-axis employs a high-speed ballscrew with 40 m/min feed. High-end Heidenhain TNC640 control with 5-axis simultaneous capability ensures advanced contouring, TCPM (Tool Center Point Management), and real-time error compensation for complex geometries.
With a 60-tool automatic tool changer (HSK100A), integrated spindle cooling, automatic lubrication, and robust counterbalance systems, the APEC G3050 is built for continuous high-precision machining. Optional accessories such as BLUM non-contact tool measurement, workpiece probing, and advanced kinematic calibration systems further enhance productivity and process reliability.
Specifications
| X-Axis Travel | 5,000 mm | 196.85" |
|---|---|---|
| Y-Axis Travel | 3,000 mm | 118.11" |
| Z-Axis Travel | 1,200 mm | 47.244" |
| Spindle End to Table Distance | 580-1780 mm | 580-1780 mm |
| Table Size-X | 5,000 mm | 196.85" |
| Table Size-Y | 3,000 mm | 118.11" |
| Table Load Capacity per sqm | 8 T | 7,257.5 kg |
| Spindle Speed | 15,000 RPM | 15,000 RPM |
| Spindle Taper | HSKA100 | HSKA100 |
| Spindle power (S1/Max) | 45/54 kW | 45/54 kW |
| Spindle torque (S1/Max) | 119/143 Nm | 119/143 Nm |
| Swivel/Rotation Speed | B/C 60RPM | B/C 60RPM |
| ATC | 60 | 60 |
| Max. Tool Length | 350 mm | 13.78" |
| Max. Tool Weight | 16 kg | 35.3 lb |
| CN Control | Heidenhain TNC640 | Heidenhain TNC640 |
Equipped With
HEIDENHAIN TNC640 WITH HR520 MPG
AGA MONO TYPE MILLING HEAD
EXTENDED Z-AXIS TRAVEL TO 1,200 MM
15,000 RPM BUILT-IN SPINDLE, HSKA100
60 TOOLS ATC MAGAZINE
70 BAR COOLANT THROUGH SPINDLE SYSTEM AND AIR THROUGH THE SPINDLE
AUTOMATIC KINEMATICS MEASUREMENT & CALIBRATION SYSTEM WITH CERAMIC BALL SET
BLUM WORKPIECE TOUCH PROBE
BLUM TOOL MEASURING SYSTEM
AUTO ROOF
OIL-AIR LUBRICATION DEVICE FOR SPINDLE
X/Y-AXIS WITH LINEAR MOTOR DRIVE
X/Y-AXIS LINEAR MOTOR DRIVE
Z-AXIS WITH HIGH SPEED BALL-SCREW DRIVE
X/Y/Z-AXIS WITH HIGH RIGIDITY ROLLER TYPE LINEAR GUIDE-WAY
GERMANY BRAKING SYSTEM FOR LINEAR MOTOR
CHILLER FOR LINEAR MOTORS
5 AXES WITH HEIDENHAIN OPTICAL LINEAR/ CIRCULAR SCALE
COUNTER BALANCE SYSTEM
CHIP AUGER SYSTEM - INCLUDING CHIP CONVEYOR
STANDARD COOLANT TANK
SPINDLE CHILLER
SPINDLE THERMAL COMPENSATION
AIR THROUGH SPINDLE
AIR AROUND SPINDLE
OIL MIST AROUND SPINDLE
COOLANT AROUND SPINDLE
AIR-CONDITIONER FOR ELECTRICAL CABINET
WATER-PROOF LED WORKING LAMP
SECURITY DOOR INTERLOCKS
