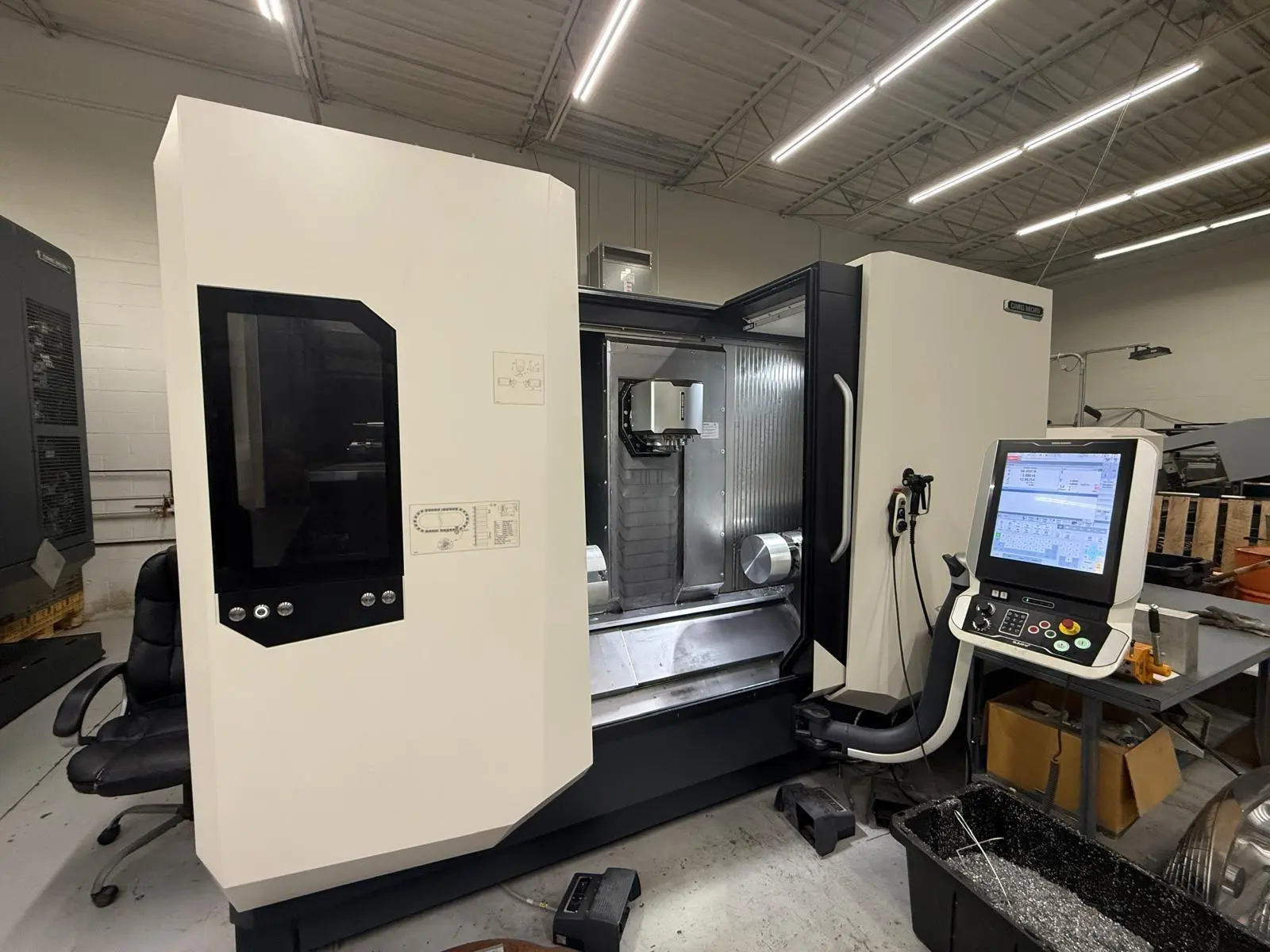

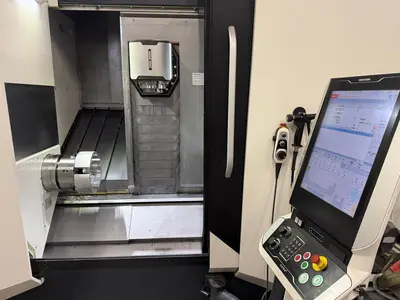

USED 2023 DMG MORI CLX-450TC

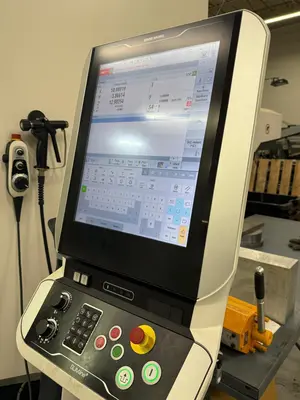

Siemens 840D SLIMline Touchscreen CNC Control

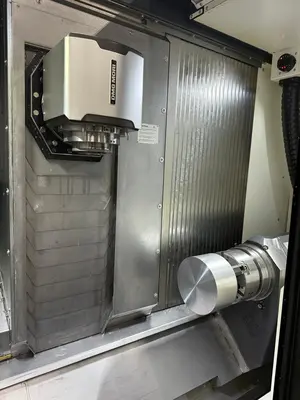

Milling Spindle - 12,000 rpm | HSK-A63

60 Station Tool Changer

LIKE NEW, EXCELLENT CONDITION

48 Power on Hours | 42 Cutting Hours
The DMG Mori CLX-450TC is an exclusive part of our Lathes (3-Axis or More) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.

CNC Control: yes
Control Type: Siemens 840D SLIMline
# Axis: 7
Swing: 19.68"
Turning Diameter: 15.74"
Max Turning Length: 43.3"
Center Distance: 56.4"
Chuck Size: 8"
Bar Capacity: 2.6"
X Axis Travel: 29.53"
Y Axis Travel: 7.87"
Z Axis Travel: 43.3"
B Axis Travel (Sub Spindle): 47.24"
B Axis Head Tilt: +/- 120°
C Axis Index: 0.001°
Rapid Traverse (X/Y/Z): 40 m/min
Spindle Nose: A2-8
Spindle Speed: 5,000 rpm
Main Motor: 23 hp
Tailstock: no
Y Axis: yes
Live Tooling: yes
Live Tooling Spindle Taper: HSK-A63
Live Tooling Speed: 12,000 rpm - Milling Spindle
Live Tooling Motor: 14 hp
Sub Spindle: yes
Sub Spindle Chuck: 8"
Sub Spindle Bar Capacity: 2.6"
Sub Spindle Nose: A2-8
Sub Spindle Speed: 5,000 rpm
Sub Spindle Motor (HP): 23 hp
Tool Changer Capacity: 60 Stations
Machine Dimensions: 154" x 107" x 100"
Machine Weight: 21,000 pounds

- Siemens 840D SLIMline Touchscreen CNC Control
- Chip Conveyor
- Coolant Tank & Pump
- Renishaw Probing
- Tool Breakage Monitoring
- Machine Protection Control
- Easy Tool Monitor 2.0
- Coolant Thru Spindle
Replacement Cost Today - $596,295 as Equipped
LIKE NEW - EXCELLENT CONDITION
** 48 Power On Hours **
** 42 Cutting Hours **
