NEW BUSCH MACHINERY BM-705
Overview
Description

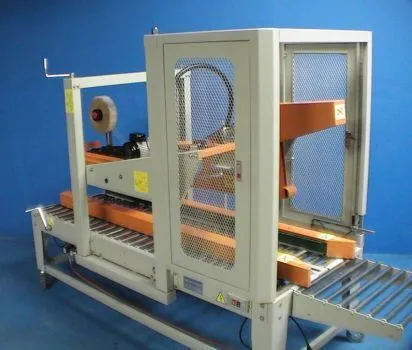

The BM-705 is an Auto Uniform Flap Folding and Case Sealing Machine, designed with heavy-duty steel construction, which can meet the requirements of a variety of carton sealing profiles and high production rates. Automatic means that this uniform case sealer folds the major and minor flaps and then tapes the top and bottom of the box. It includes top and bottom side drive belts, auto top flap folding, manual adjustment for carton size, and three drive motors.
Case Handling Specifications:
Length: 6″ minimum to 25.6” maximum
Width: 4″ minimum to 21.6″ maximum
Height: 4″ minimum to 20″ maximum
Throughput Speed: 75 feet/minute drive belt speed
Includes:
Standard 2″ Wide Taping Heads
Casters (4)
Tool Kit
110 VAC, 60 Hz, 1P
Options:
In-feed and Discharge Roller Tables
3” Width Taping Heads
