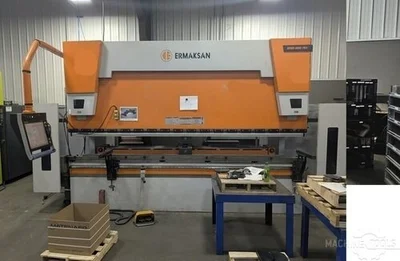

USED ERMAKSAN SPEED BEND PRO 3760-175

Brand – ERMAKSAN Model – SPEED BEND PRO 3760-175 Type – Press Brakes Year – 2023 Condition – Used – Excellent

Tonnage: 193 T
Type: HYD
Overall Length: 12.34′
Between Housings: 128″
Stroke: 10.8″
# Axis: 6
Dimensions: 193x85x110
Weight: 25000
Control: CNC (DELEM 69T)

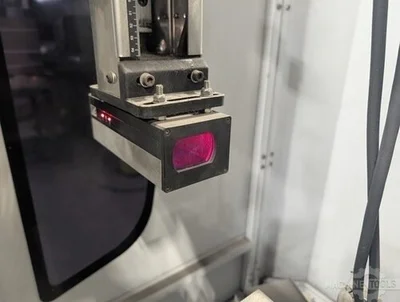

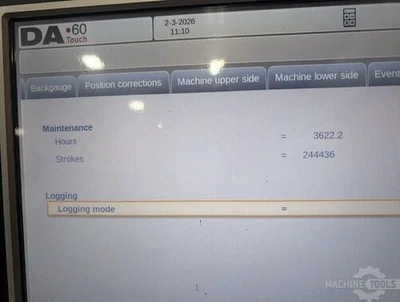

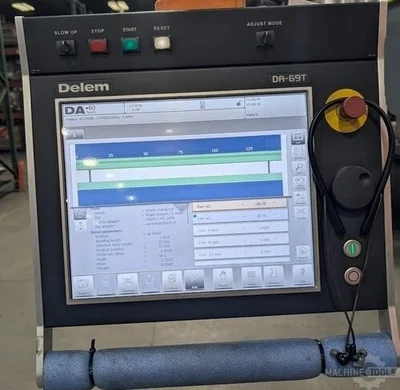

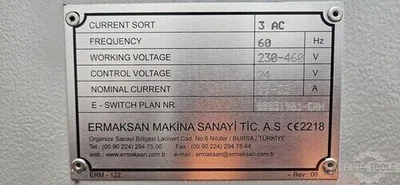

Pre-Owned 2023 Low Hours: 3,622.2 Hours, 244,436 Strokes (as of February 3, 2026) Delem DA69 Touch CNC 3D CAD Control Profile-T 3D CAD Offline Programming Software 6-Axis Configuration (Y1, Y2, X, R, Z1, Z2) Heidenhain Linear Glass Scales ±0.0002″ Resolution ±0.0004″ Repeatability Mitsubishi MelServo JS Servo Motors & Drives 31.5″ X-Axis Travel 9.8″ R-Axis Travel Belt-Driven Z1 & Z2 CNC Motorized Wedge Crowning (Anti-Deflection) LazerSafe PCSS Ram-Mounted Laser Safety 6mm Mute Point / 24–40 IPM Bending Speeds Precision Tooling Package (See Image) Wilson Express Rail 1000 W/T (Z2 Upper) Flat-Top American Die Riser Hoerbiger Hydraulic Valve System Siemens Electrical System (2) Micro-Adjustable Backgauge Fingers (2) Front Sliding Support Arms on THK Linear Ways Rear Guard with Photocell (Fiessler / Sick W2000, CAT .04) Side Guards with Safety Switch Double Foot Pedal Dual Voltage Electrical: 230/460V, 3-Phase, 60Hz RAL 7035 / RAL 9007 Color Scheme

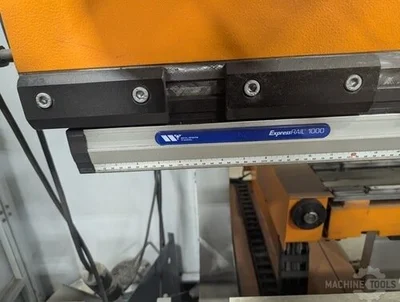

Wilson Express Rail 1000 W/T (Z2 Upper Hydraulic Clamp) Wilson Hydraulic Pump American Die Riser (Full Length) CNC Crowning System Delem DA69 Touch CNC 3D CAD Control Profile-T 3D CAD Offline Programming Software 6-Axis CNC Configuration (Y1, Y2, X, R, Z1, Z2) Heidenhain Linear Glass Scales ±0.0002″ Resolution ±0.0004″ Repeatability Mitsubishi MelServo JS Servo Motors & Drives 31.5″ X-Axis Travel 9.8″ R-Axis Travel Belt-Driven Z1 & Z2 CNC Motorized Wedge Crowning (Anti-Deflection) LazerSafe PCSS Ram-Mounted Laser Safety System 6mm Mute Point / 24–40 IPM Bending Speeds Precision Tooling Package Wilson Express Rail 1000 (W/T) Flat-Top American Die Riser Hoerbiger Hydraulic Valve System Siemens Electrical System (2) Micro-Adjustable Backgauge Fingers (2) Front Sliding Support Arms on THK Linear Ways Rear Safety Guard with Photocell (Fiessler / Sick W2000) Side Guards with Safety Interlock Switches Double Foot Pedal Control Dual Voltage Electrical (230/460V, 3-Phase, 60Hz) RAL 7035 / RAL 9007 Color Scheme English Labels & Manuals
