| Swing | 33.86" | 860.04 mm |
| Machining Length | 120" | 3,048 mm |
| # Axis | 2 | 2 |
| Chuck Size | 7.2" | 182.88 mm |
| Bar Capacity | 10.8" | 274.32 mm |
| Power | 50 hp | 37.3 kW |
| Max RPM | 1,000 RPM | 1,000 RPM |
| Turning Dia | 31.89" | 810.01 mm |
| Tailstock | Yes | Yes |
| Live Tooling | Yes | Yes |
| Sub Spindle | No | No |

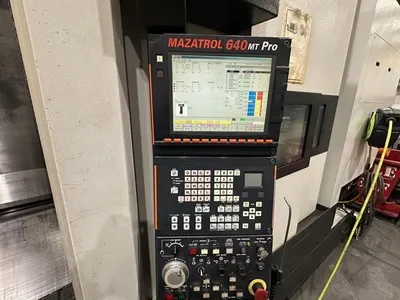

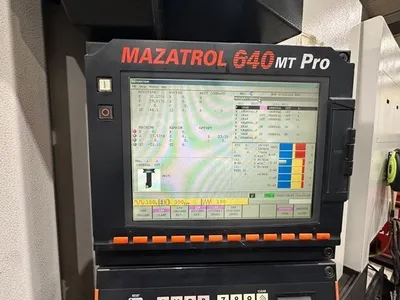

| Control | CNC | CNC |
| Weight | 40000 lbs | 40000 lbs |
Specifications (subject to buyer verification):
Swing Over Bed: 33.86"
Swing Over Cross Slide Upper/Lower: 27.5"
Machining Diameter: 31.89"
Machining Length Upper/Lower: 120"
X-Axis Travel: 21.26”
Z-Axis Travel: 82"
C-Axis Incremental Movement: 0.001 Degree
Spindle Bore/Bar: 10.8"
Spindle Speeds: 1,000 RPM
Main Spindle Motor: 50 HP
Rotary Tool Speed: 3,000 RPM
Rotary Tool Motor: 15 HP

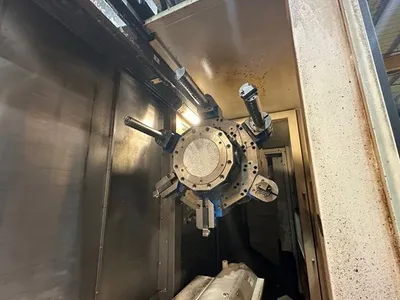

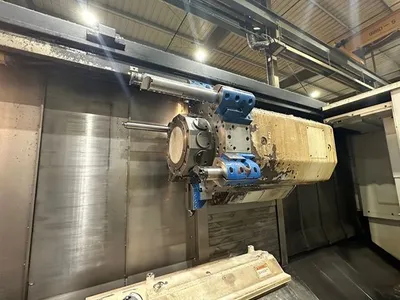

Number of Turret Positions: 12 Positions, All Live
Rapid Traverse X: 945 IPM
Rapid Traverse Z: 1,181 IPM
Tailstock Taper: MT# 5
Machine Weight: 40,000 lbs
Equipped With (subject to buyer verification):

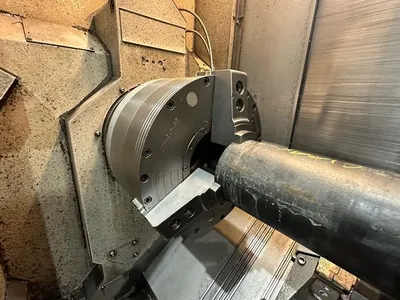

Schunk EP-460-185 Air Chuck with 7.2" Spindle Bore

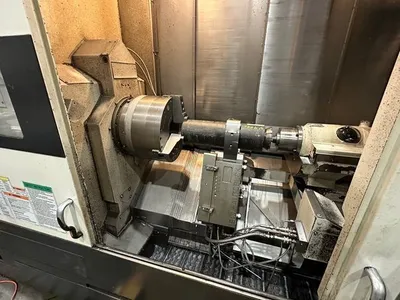

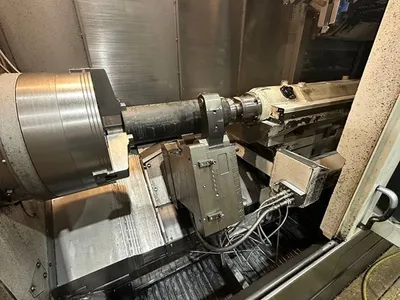

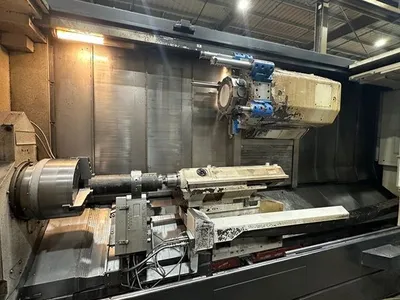

SMW Autoblok Hydraulic Steady rest

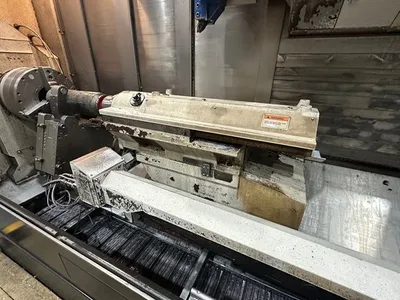

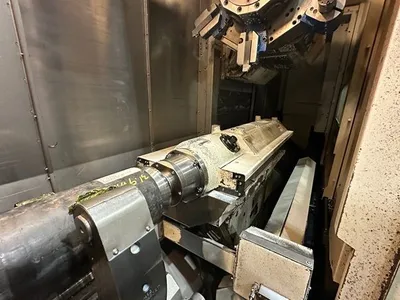

Tailstock
Boring Bar Stocker
