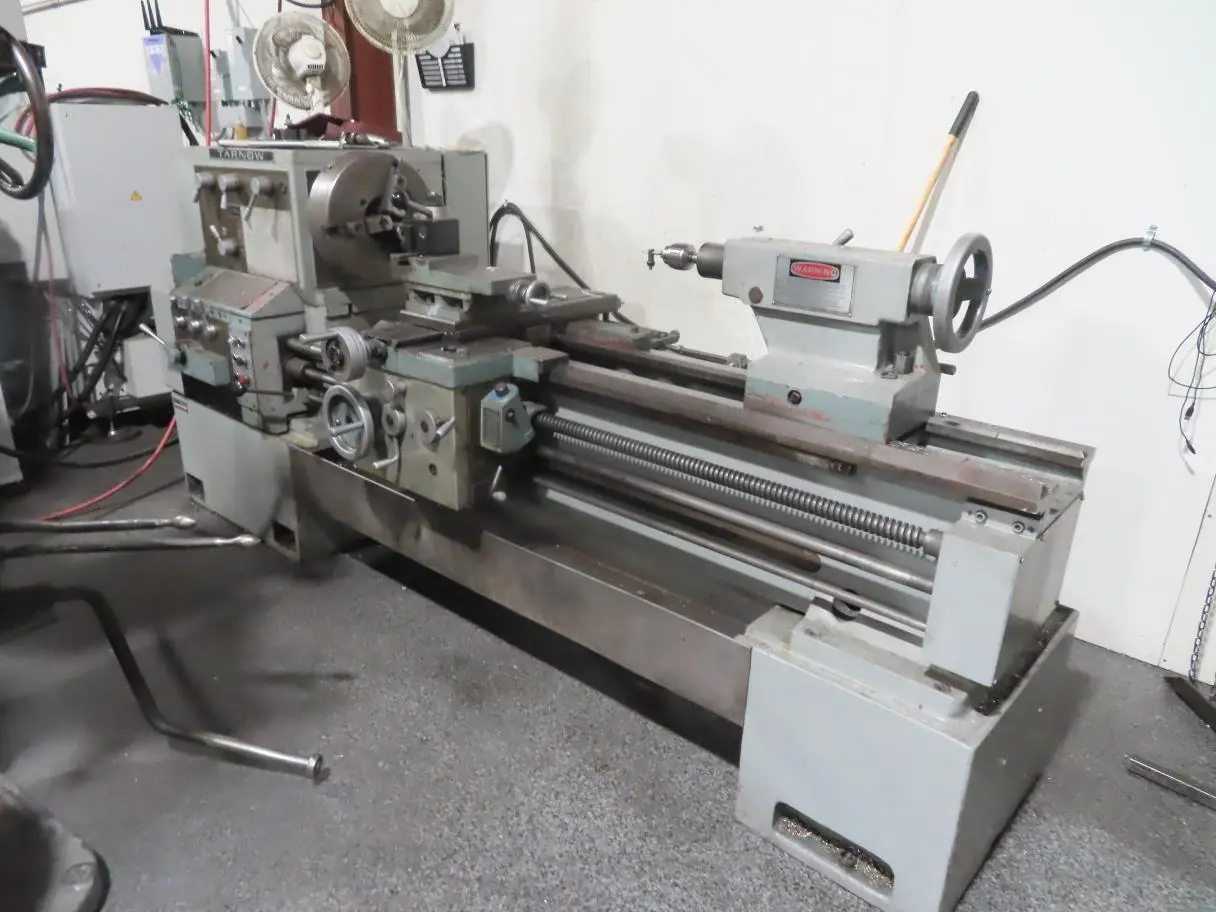

USED 1981 TARNOW TUJ-50M

Heavy Duty Engine Lathe
OEM: Tarnow (Poland)
Model: TUJ-50M
Serial No.: 0381-1526
Age: 1981
Electrics: 230 Volt, 60 Cycle, 3 Phase, 40 Amp
Main Motor: 15 HP

Features and Specifications:
...Swings:
......Over Bed: 22"
......Over Gap: 31-1/2"
......Over Carriage: 14-1/2"
...Distance Between Centers: 60"
...Spindle Specs:
.....Speeds (18): 20 - 1600 RPM
.....Nose: D1-11" Camlock
......Spindle Bore: 3-1/2"
...Carriage, Apron Travels:
......X-Slide: 13"
......Top Slide: 8"
...Feedrates (IPR):
.....Longitudinal Feed (98): .0007" - .720"
.....Crossfeed (98): .0004" - .360"
...Threading:
......Inch (70): 1/4 - 56 TPI
......Metric (60): 0.5 - 112 mm/rev
...Tailstock:
......Quill Diameter: 3"
......Taper: MT#5
......Travel: 5"
...Tooling:
......16" 4-Jaw Chuck
......Centers
......Quick Change Tool Post

Equipment Dimensions (approx.): 120" x 55" x 60"
Equipment Weight (approx.): 7,500 lbs.

Advertising specifications taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended. Price, location, and specifications are subject to change.

Functionality Notes & History:

This machine is coming out of a large manufacturing house currently consolidating equipment from three buildings to one building. Selling older equipment that no longer fits in with future business plan; owner purchasing new equipment. Machine is presently connected to power; available for inspection in current condition. Will be disconnected from power within next 4-8 weeks.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS

EQUIPMENT LOCATION: Portland, OR Metro Area

Equipment is presently under power; available for inspection.
Buyer responsible for loading onto transportation.
Buyer responsible for freight logistics and expenses.
MD Equipment Services (MDES) can quote loading and freight.

Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.
