USED 2009 T & H WU11-9

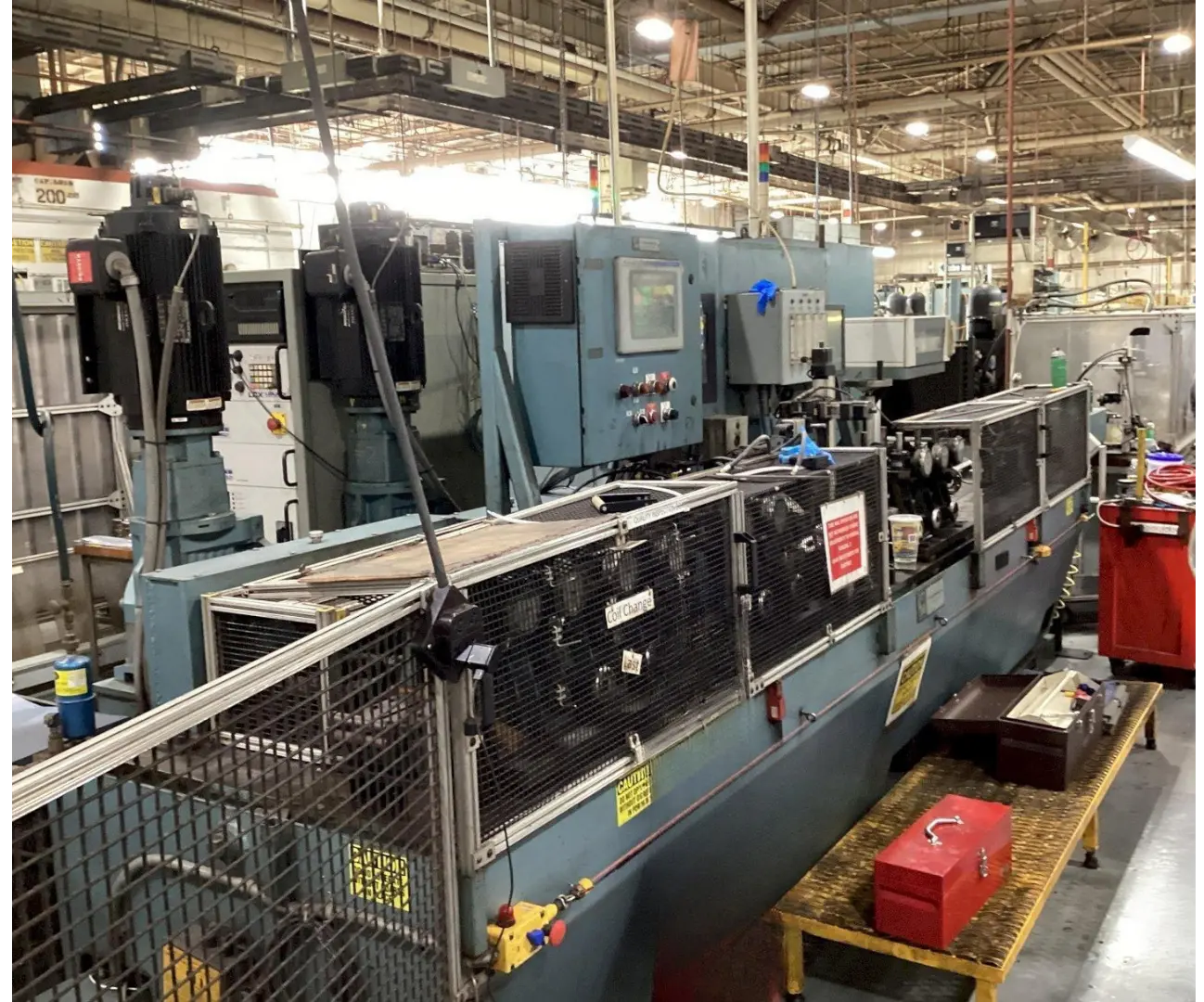

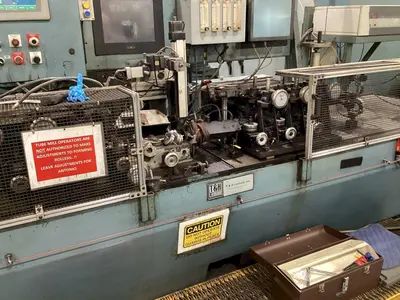

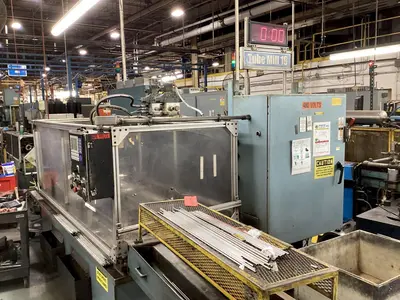

This listing is for a 3/8" T&H Lemont WU11-9 Tube Mill.

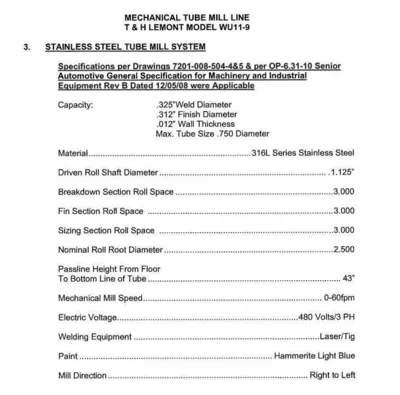

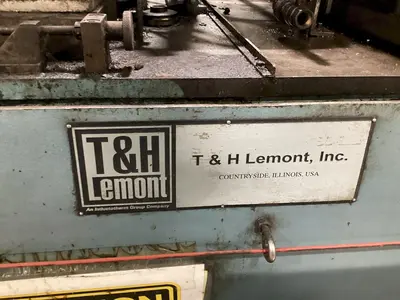

Manufacturer: T & H Lemont
Model: WU11-9

Tube OD Range: .236" – 1.000"
Finished Tube Diameter: .312"
Wall Thickness Range: .012" – .030"
Maximum Tube Diameter: .750"
Material Capability: 316L Stainless Steel

Mill Speed: 0–60 FPM
Passline Height: 43"
Mill Direction: Right to Left
Voltage: 480V / 3 Phase
Welding: Laser / TIG

Driven Roll Shaft Diameter: 1.125"

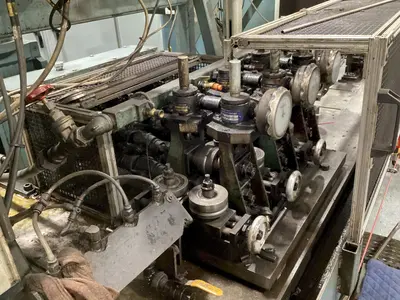

Roll Space (Breakdown / Fin / Sizing): 3.000"
Nominal Roll Root Diameter: 2.500"

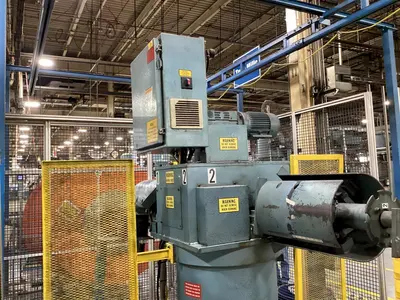

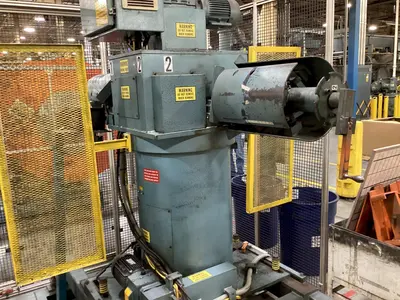

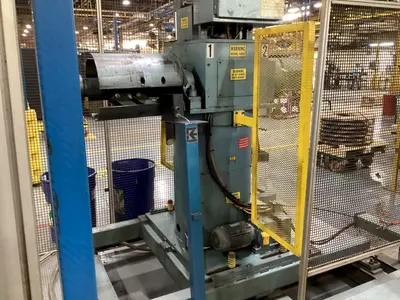

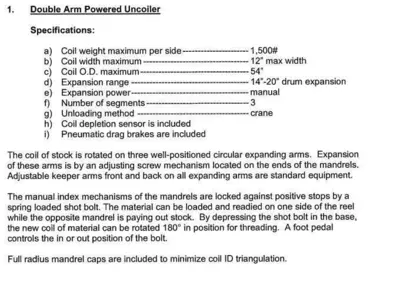

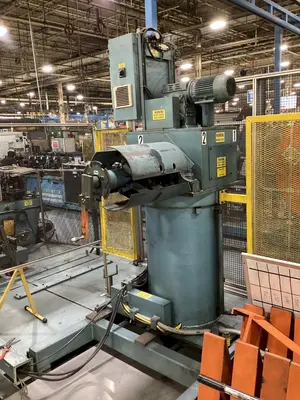

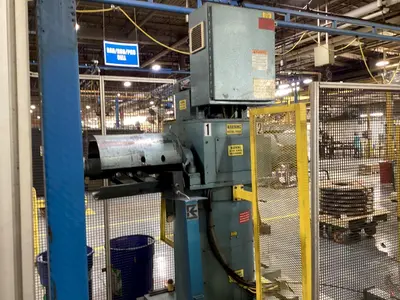

Uncoiler Capacity: 1,500 lbs per side
Maximum Coil Width: 12"
Maximum Coil OD: 54"
Drum Expansion: 14"–20" Manual
Segments: 3

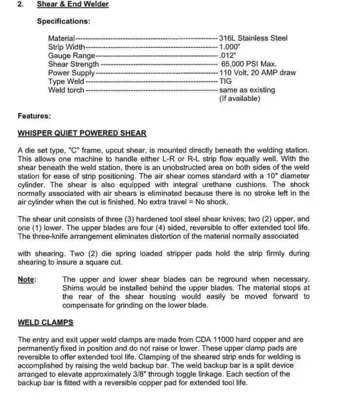

Shear & End Welder Material: 316L Stainless
Strip Width: 1.000"
Gauge Capacity: .012"
Maximum Shear Strength: 65,000 PSI
Power Supply: 110V, 20 Amp
Weld Type: TIG

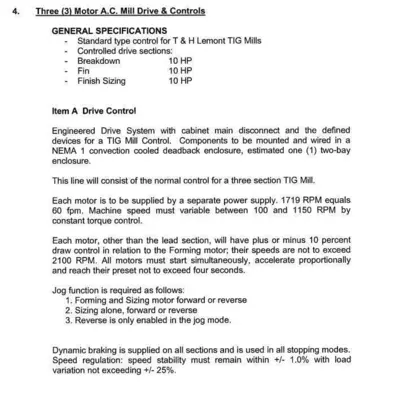

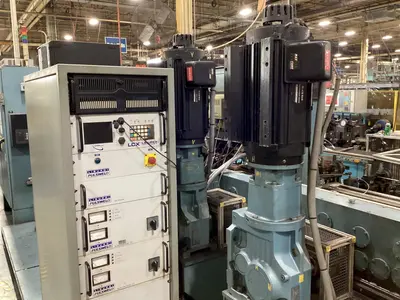

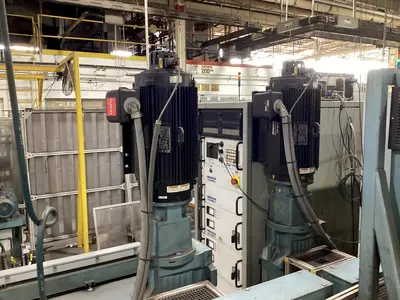

Drive Motors: (3) 10 HP
Variable Motor Speed: 100–1150 RPM (2100 RPM Max)
Dynamic Braking: All Sections
Speed Stability: ±1%

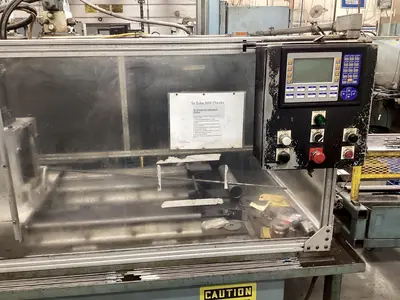

Flying Cutoff System: Technisales ACCU-CUT
Cut Capacity: .236" – 1.000" OD x .012" – .030" Wall
Maximum Line Speed: 60 FPM
Cut Length Range: 18' – 20'
Length Tolerance: ±.020"
Tube End Squareness: .008"
Maximum OD Burr: 10% of Wall Thickness

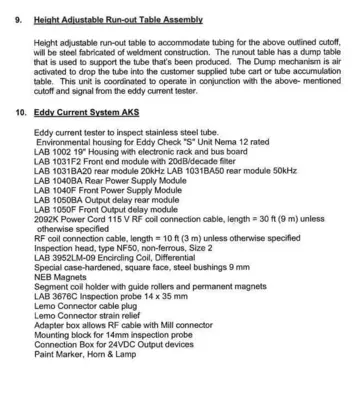

Run-Off Table: Height Adjustable Steel Weldment with Air-Activated Dump

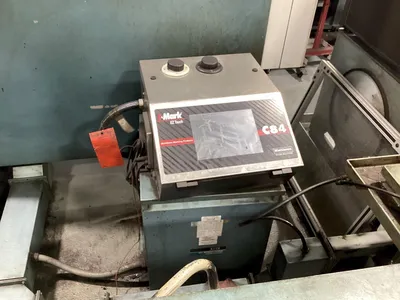

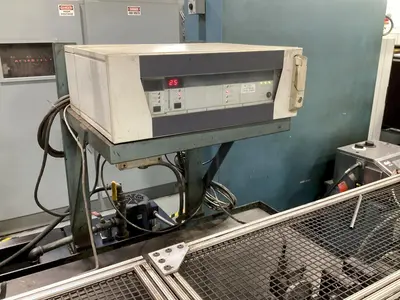

Eddy Current Inspection System: Eddy Check “S” NEMA 12 with Inspection Head, Differential Encircling Coil, Probes, RF Cables, Electronic Rack, Power Supplies, Connector Box, Paint Marker, Horn & Lamp

Location: Holland, OH
