| Swing | 40" | 1,016 mm |
| Machining Length | 51" | 1,295.4 mm |

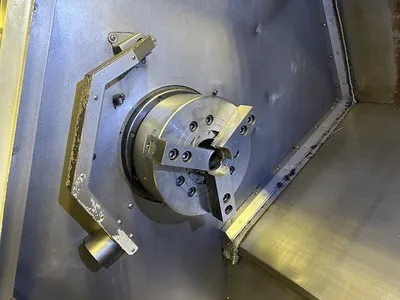

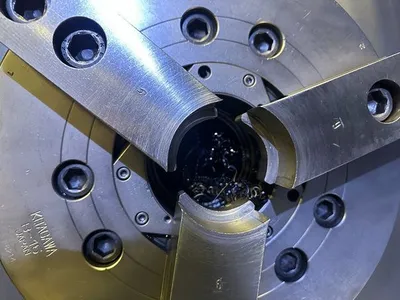

| Chuck Size | 15" | 381 mm |
| Bar Capacity | 4" | 101.6 mm |
| Power | 40 hp | 29.8 kW |
| Max RPM | 2,400 RPM | 2,400 RPM |
| Turning Dia | 25.5" | 647.7 mm |
| Tailstock | Yes | Yes |
Specifications (subject to buyer verification):
Maximum Turning Diameter: 25.5″
Maximum Turning Length: 44″
Maximum Bar Capacity: 4.56″
Swing Over Bed: 40″
X Axis Travel: 17″
Z Axis Travel: 34”
Rapid Traverse X Axis: 710 IPM
Rapid Traverse Z Axis: 710 IPM
Spindle Nose: A2-8
Spindle Bore: 4.62″
Spindle Speed: 24 – 2,400 RPM
Spindle Motor: 40 HP

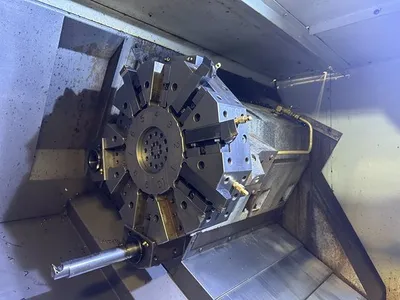

Turret Capacity: 10 Stations
Turret Index Time: 1 Second
Tailstock Taper: MT-4
Tailstock Body Travel: 44″
Power: 45 kVa, 220v / 3 Phase
Overall Dimensions: 180″ x 90″ x 90”
Weight: 25,000 lbs
