USED CARLTON 4A
Overview
Specs
Equipped With

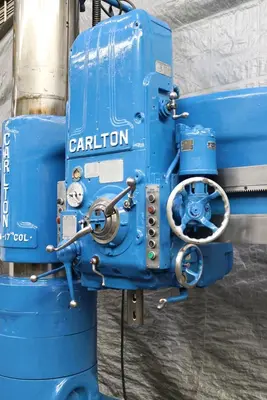

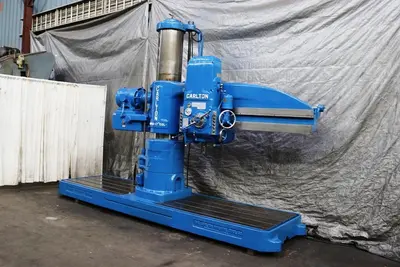

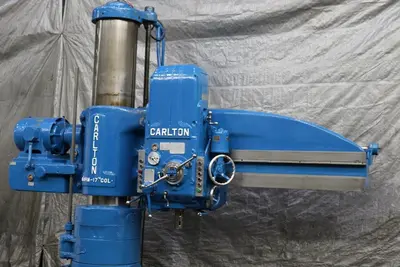

6' X 17" CARLTON MODEL 4A RADIAL DRILL

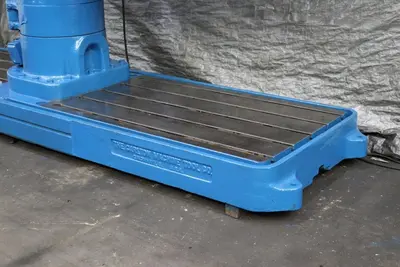

WORKING SURFACE OF BASE ................ 76" X 48"
SPINDLE SPEEDS ......................... (48) 15 TO 1500 RPM
FEEDS .................................. (18) .004 TO .125 IPR
THREADS ................................ 8, 11-1/2, 14, 18 TPI
SPINDLE TRAVEL ......................... 15"
DIAMETER OF SPINDLE .................... 3"
TAPER IN SPINDLE ....................... 6MT
DISTANCE SPINDLE TO BASE ............... 24" MIN, 66" MAX
DISTANCE SPINDLE TO COLUMN ............. 14" MIN, 72" MAX
TRAVEL OF HEAD ON ARM .................. 58"

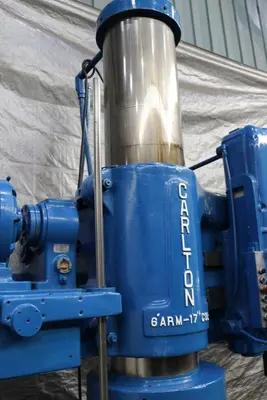

TRAVEL OF ARM ON COLUMN ................ 42"
POWER COLUMN CLAMP ..................... YES
POWER HEAD TRAVERSE .................... YES
POWER ELEVATION ........................ YES

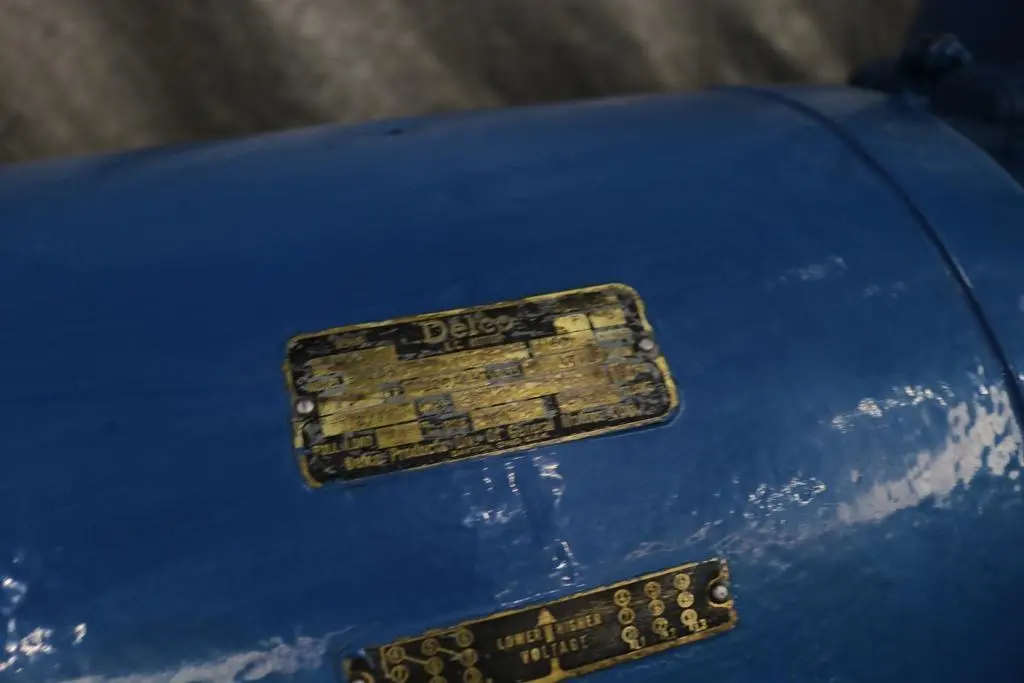

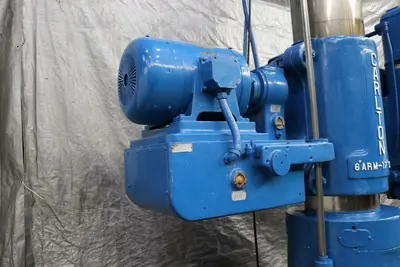

MOTOR .................................. 15 HORSEPOWER
