USED 1999 ACER AGS-1224AHD

Equipped With

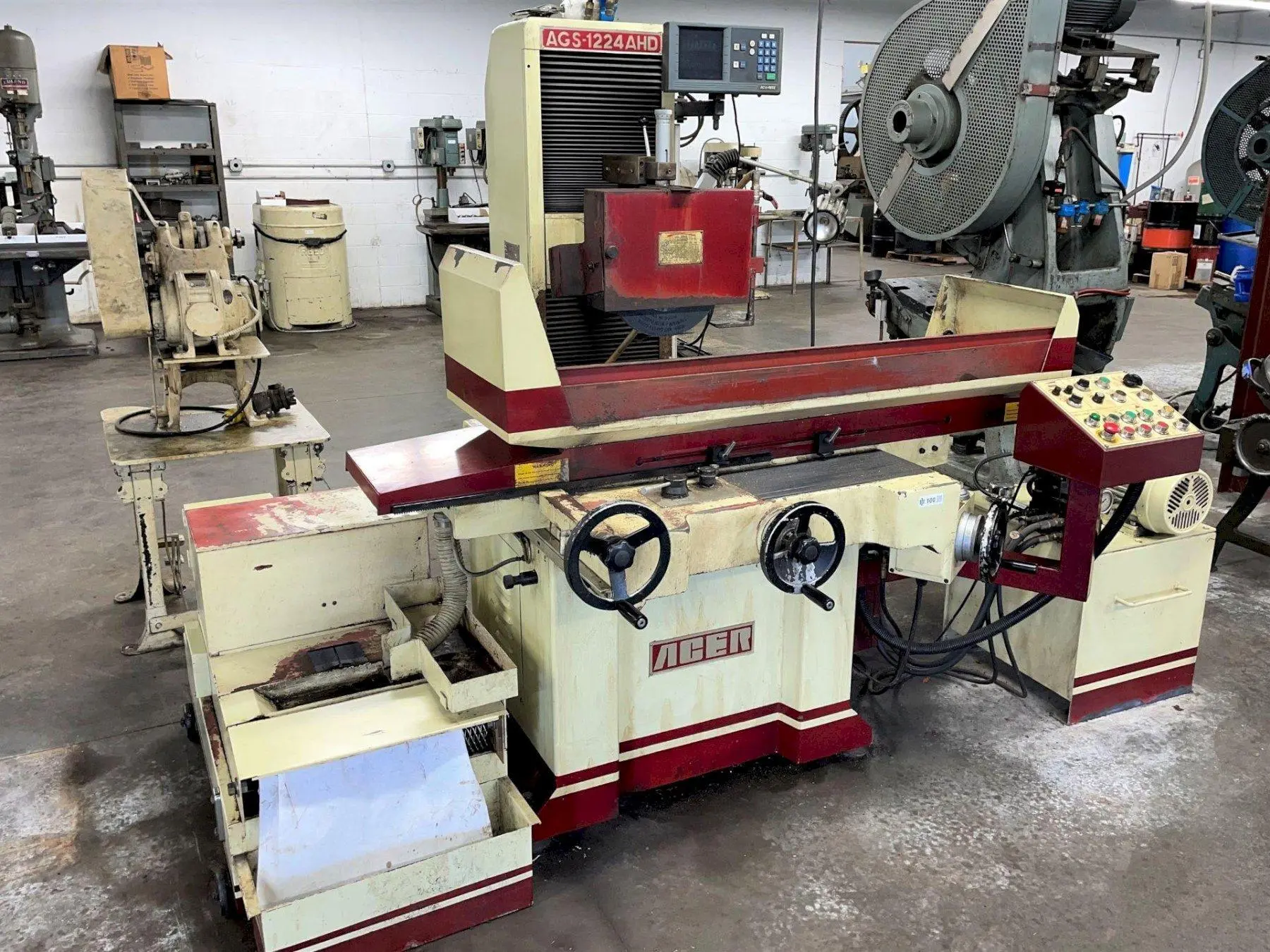

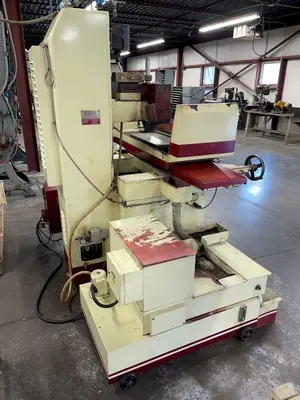

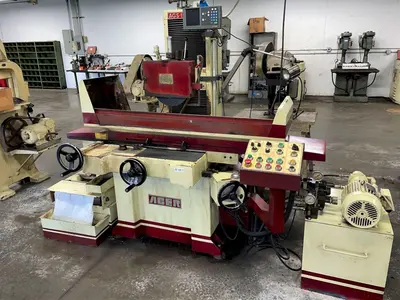

12" X 24" ACER MODEL AGS-1224AHD HYDRAULIC SURFACE GRINDER
New 1999
MAX. SURFACE GROUND ........................ 12" X 24"
DIST. FROM SPINDLE CENTER TO TABLE ......... 23- 1/2"
VARIABLE TABLE SPEED, HYDRAULIC ......       16' TO 80' FPM
MAX. TABLE TRAVEL .......................... 26.5"
AUTOMATIC CROSSFEED INCREMENT .............. 0" TO 1"
MAX. CROSSFEED TRAVEL (AUTO FEED) .......... 14"
PER REVOLUTION ............................. 0.1"
CROSSFEED HANDWHEEL PER GRADUATION ......... 0.001"
PER REVOLUTION ............................. 0.2"
AUTO INCREMENTAL DOWNFEED .................. 0.001" TO .0001"
VERTICAL GRADUATION ........................ 0.0005"
VERTICAL REVOLUTION ........................ 0.1"
MICRO ADJUSTMENT FOR VERTICAL HANDWHEEL .... 0.0001" GRAD.
SPINDLE MOTOR .............................. 5 H.P.
STANDARD GRINDING WHEEL .................... 14"D x 1- 1/4" x 5"
SPINDLE SPEED .............................. 1,750 RPM
MAXIMUM TABLE LOAD CAP. INCLUDING CHUCK ..   1,000 LBS.

APPROX. WEIGHT ............................. 4,180 LBS
FLOOR SPACE REQUIRED .................. 84"L-R x 67"W x 89"H

  EQUIPPED WITH:
AUTOMATIC INCREMENTAL DOWNFEED (SURFACE & PLUNGE)
POWER RAPID WHEELHEAD POSITIONING BY PUSHBUTTON ON CONSOLE
HYDRAULICALLY POWERED LONGITUDINAL FEED
ELECTRONIC POWER CROSSFEED
TURCITE-B ON THE LONGITUDINAL WAYS (LOW FRICTION & WEAR)

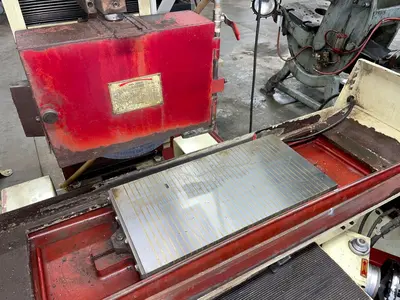

12" x 24" ELECTRO-MAGNETIC CHUCK

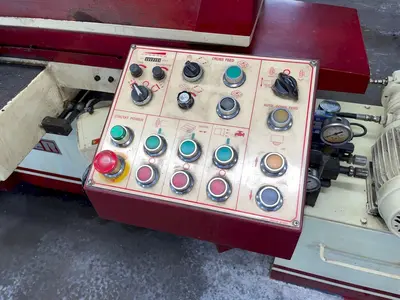

VARIABLE HOLD NEUTROFIER CONTROL, ON THE MACHINE CONSOLE CONTROL

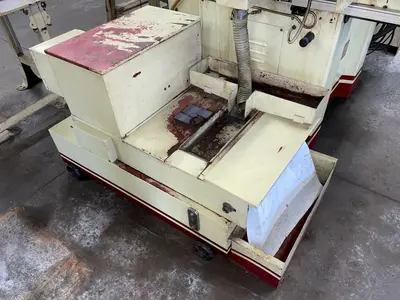

COOLANT SYSTEM WITH BOTH PAPER FILTRATION
OVER-THE-WHEEL DRESSER
EXTRA GRINDING WHEELS

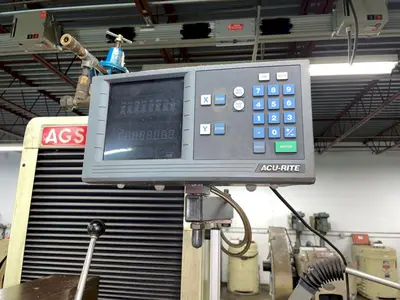

"ACU-RITE" 2-AXIS DRO
MEEHANITE CASTING
AUTO LUBE SYSTEM
EXTERNAL HYDRAULIC SYSTEM

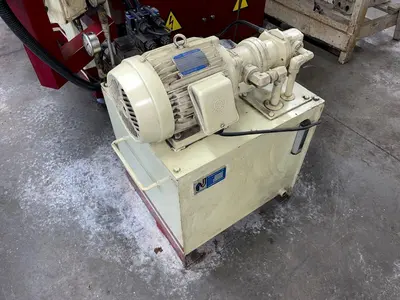

2 HP 3/60/230-460 VOLT EXTERNAL HYDRAULIC PUMP MOTOR & TANK
5 HP 3/60/230-460 VOLT SPINDLE MOTOR
