USED 1994 GMC NOT PROVIDED

Equipped With

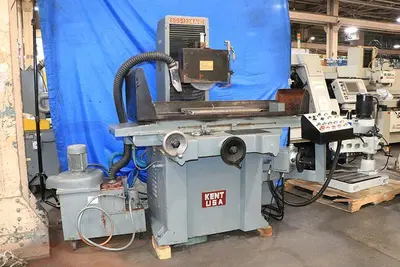

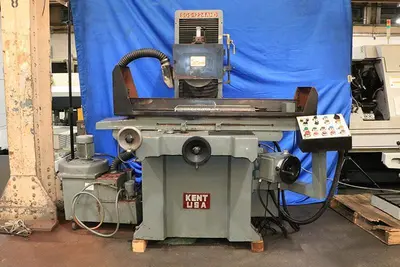

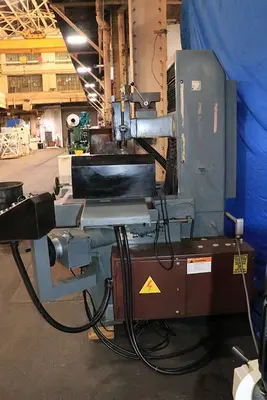

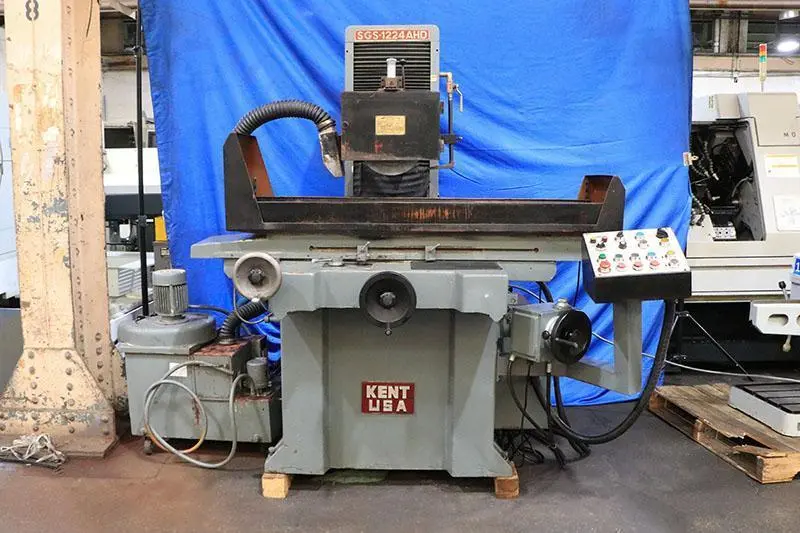

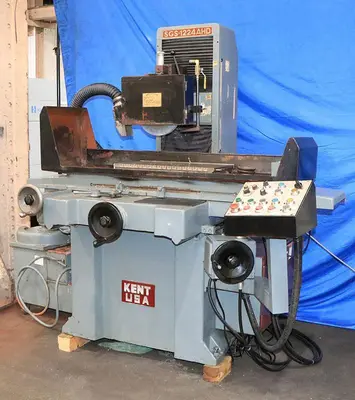

12" X 24" KENT MODEL SGS-1224AHD HYDRAULIC SURFACE GRINDER
New 1994
MAX. GRINDING CAPACITY ............... 12" X 24"
DIST. FROM SPINDLE CENTER TO TABLE ... 23- 1/2"
LONGITUDINAL TABLE TRAVEL ............ 28"
CROSS TRAVEL ......................... 13- 1/2"
VARIABLE TABLE SPEED, HYDRAULIC ...... 16' TO 80' FPM
AUTOMATIC CROSSFEED INCREMENT ........ 0 TO 5/8"
RAPID CROSS TRAVERSE RATE ............ 35" IPM
AUTO INCREMENTAL DOWNFEED ............ 0.001" TO .0001"
DOWNFEED HANDWHEEL PER GRADUATION .... 0.0005"
PER REVOLUTION ....................... 0.1"
CROSSFEED HANDWHEEL PER GRADUATION ... 0.001"
PER REVOLUTION ............. ......... 0.2"
SPINDLE MOTOR ........................ 5 H.P.
STANDARD GRINDING WHEEL .............. 14"D x 1.5" x 5"
APPROX. WEIGHT ....................... 4,180 LBS

EQUIPPED WITH:
AUTO INCREMENTAL DOWNFEED (SURFACE& PLUNGE)
POWER RAPID WHEELHEAD POSITIONING
HYDRAULIC TABLE TRAVERSE
POWER CROSSFEED

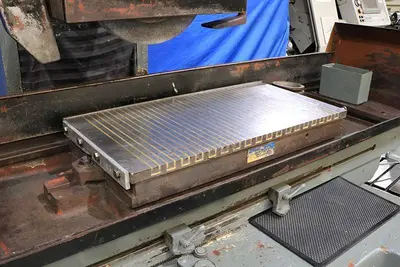

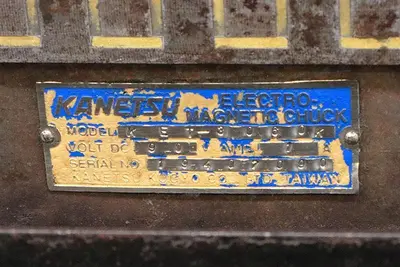

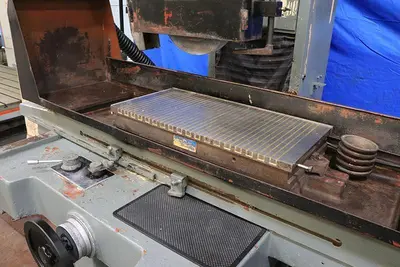

12" X 24" KANETSU STD. DIVISION, CROSS POLE,
 ELECTRO-MAGNETIC CHUCK
VARIABLE HOLD NEUTROFIER CONTROL

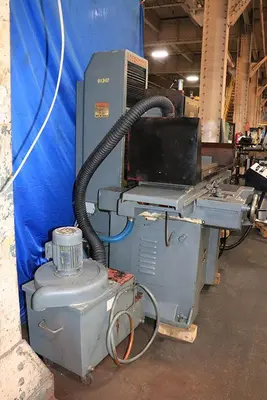

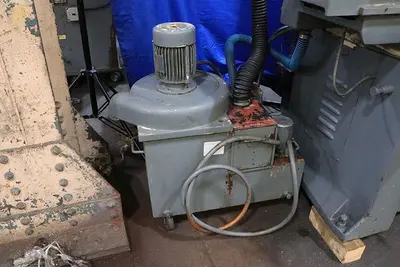

COMBINATION COOLANT SYSTEM & DUST COLLECTOR
MEEHANITE CASTING
VEE & FLAT TURCITE WAYS FOR SMOOTH LONGITUDINAL TRAVEL
CENTRALIZED LUBRICATION SYSTEM

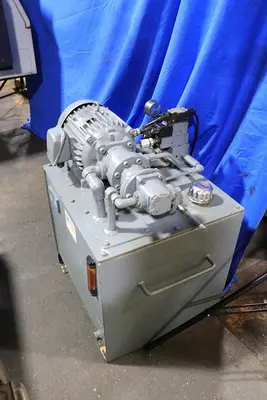

EXTERNAL HYDRAULIC SYSTEM
MOTORS ARE 3/60/220-440 VOLTS
MACHINE IS WIRED PRESENTLY FOR 3/60/440 VOLTS
