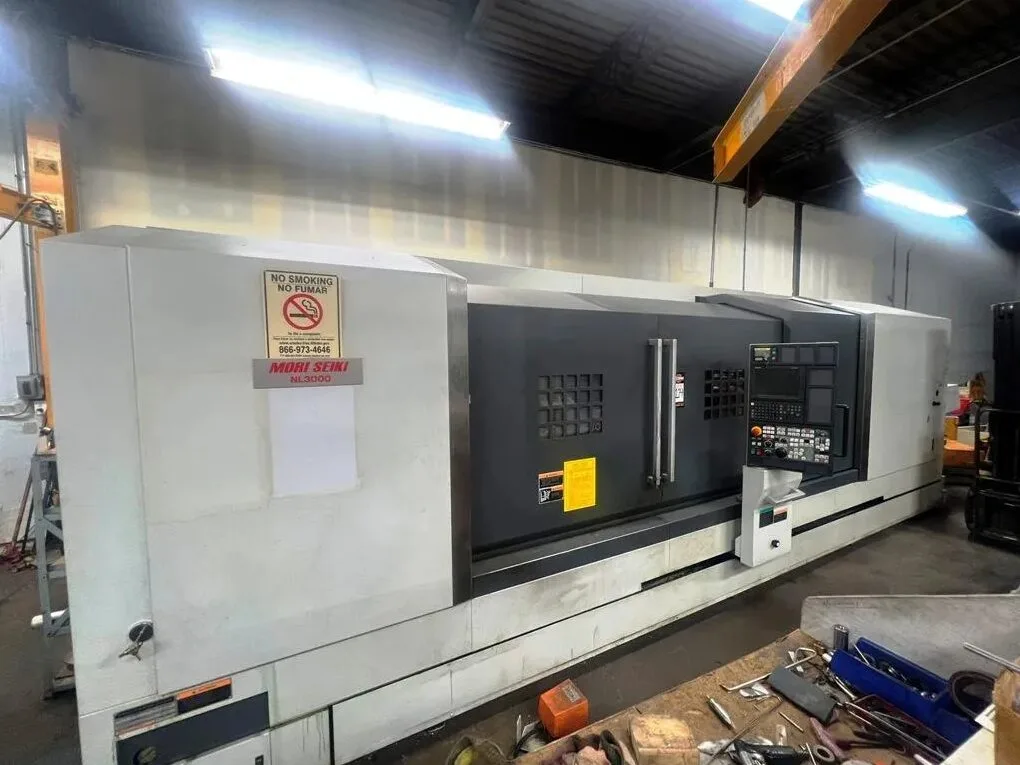

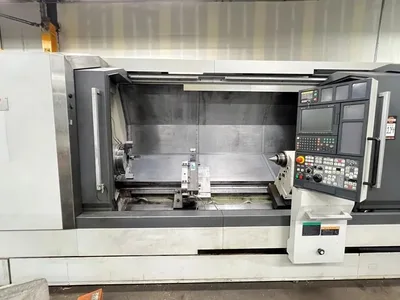

2007 MORI SEIKI NL-3000Y / 3000
Overview
Description
Mit, 3.5" Bar, 13" AirChuck, 16.5" Max Dia, 28" Length, 30 HP, 12 Tools, C & Y-Axis Milling, Tailstock, Chip Conveyor
Specifications
Chuck Size: 13"
Max Diameter Bar Capacity: 3.5"
Max Swing Over Bed / Cover: 39.2" / 26.4"
Turning Diameter (Max / Std): 16.5" / 12.2"
Spindle Motor: 30 / 24.7 HP
Spindle Speed: 3000 RPM
Spindle Nose: A2-8
Spindle Bore: 4.1"
Tools: 12 (All Live)
Rapid Traverse Rates: 1181 IPM
X-Axis Travel: 11"
Z-Axis Travel: 122.9"
Y-Axis Travel: +/- 2.4"
C-Axis Index: .001 Degrees
Turret Index (Single Step): 0.3 Seconds
Machine Dimensions (L x W x H): 321" x 102" x 95"
Machine Weight: 31,000LBS
Spindle Torque: 756 ft. lbs.
Steady Rest Diameter: 1.37" - 9.65"
Tailstock Taper: MT#5
Equipped With
MORIC MSX-850II CNC Control
10.4" Color LCD

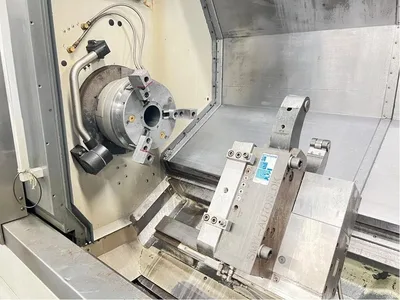

13" Air Chuck
C & Y-Axis Live Tooling Capability

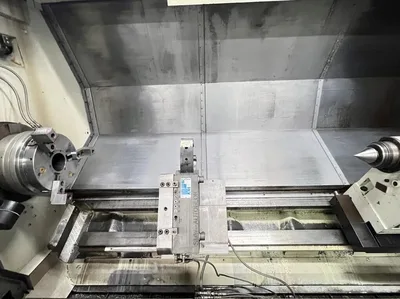

SMW Autoblok Steady Rest (1.37" - 9.65")

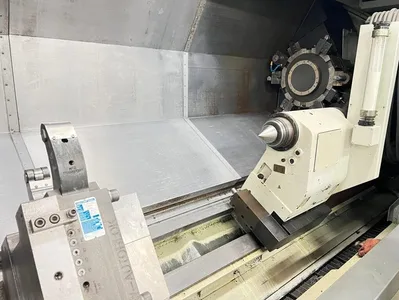

Servo Driven Tailstock
Built-in Integral Milling Spindle
PC/MCIA Interface
Automatic Tool Presetter

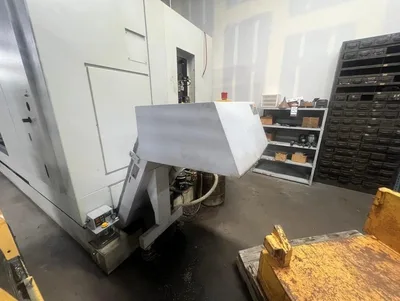

Chip Conveyor (Right Side Exit)

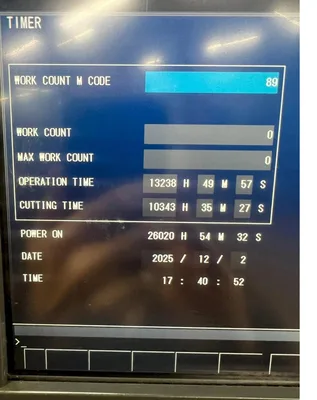

26,020 Power On Time
13,238 Operation Time
10,343 Cutting Time
