NEW W.F. WELLS W-914A CNC
Overview

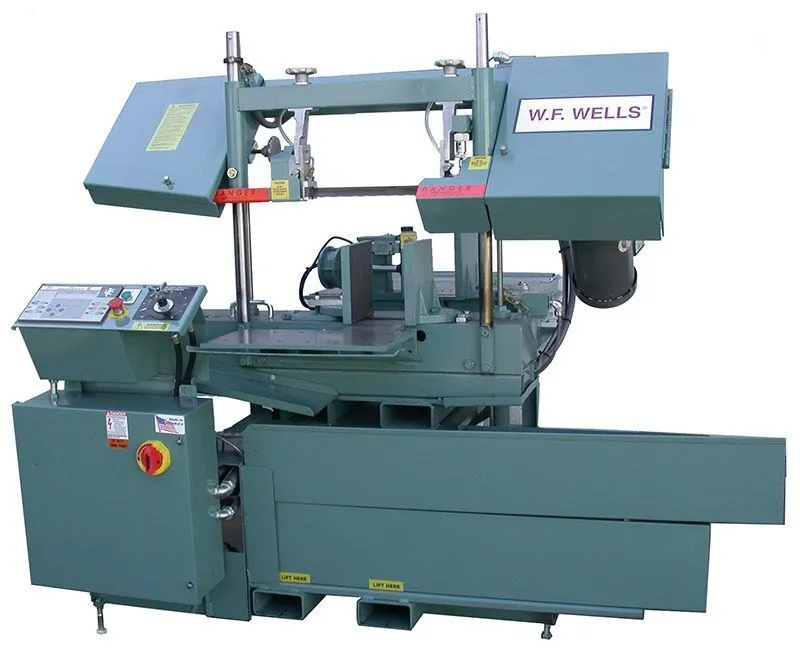

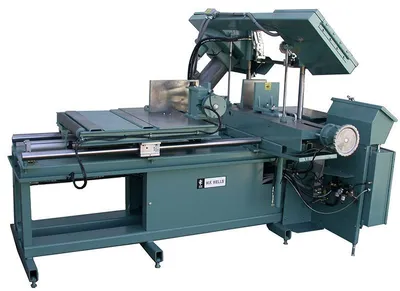

NEW W.F. WELLS Model W-914A CNC Saw, Capacity 9" x 14"
W.F. Wells, Inc. is a prominent American manufacturer of horizontal metal-cutting bandsaws, founded in Three Rivers, Michigan, in 1948. The company is widely credited with pioneering the twin-post, true horizontal bandsaw and remains a key industry leader in heavy-duty, entirely U.S.-manufactured cutting equipment.
American Manufacturing: Headquartered at 16645 Heimbach Rd, Three Rivers, Michigan, the company remains unique in the U.S. machine tool industry for manufacturing entirely in the U.S. using domestically sourced components. They commit to stocking standard machines and replacement parts for models dating back to the 1940s
Specs
Capacity: Rectangular at 90° 9″ High x 14″ Wide Round 9″ Diameter
Weight Capacity: 3,000 lbs
Blade Speed: 70-380 SFPM
Blade Size: 1″ X .035″ X 11′ 6″
Blade Guide: Roller Guides with Carbide Inserts
Vise: Air, 8½” High
Bandwheel Size: 14½”
Blade Tension: Manual
Blade Drive: 3 HP Variable Speed
Sawing Force: 30-120 lbs
Coolant Capacity: 15 Gallon
Hydraulic Capacity: ¾ Gallon
Hydraulic Drive: ¾ HP Motor
Work Height: 35″
Barfeed Projection: Hydraulic 0-25″ CNC Controlled
Projection Accuracy: +/-.002″
Shuttle Indexes: Unlimited
Remnant End: 8″
Tipoff Worktable: 19½” Wide x 15½” Deep
Shipping Weight: 2,400 lbs
Electrics: Wired to NFPA 79 Machine Tool Standards
Machine Dimensions: 82″ Length x 96″ Width x 68″ Height
CNC Programmable Controller with Color Touch Screen
Machine Diagnostics & Programming Prompting
99+ Job Selection
Automatic Kerf Compensation
Blade Break/Stall Switch
Equipped With
CNC Programmable Controller with Color Touch Screen
Machine Diagnostics & Programming Prompting
99+ Job Selection
Automatic Kerf Compensation
Blade Break/Stall Switch
Fork Lift Pockets in Base
Tipoff Worktable: 19½” Wide x 15½” Deep
Optional Accessories
Air Holddown, Saw & Barfeed Vise
Blade Tension Indicator
Electronic Auger Style Chip Conveyor
Discharge Worktable (20″ Wide x 48″ Long)
Work Light, Wired in
AC Drive Console Controlled Blade Speed
Free Standing Roller Stock Conveyors, 6″ Centers
18″ X 5′ X 2,500 lbs Cap Distributed Weight
18″ X 10′ X 5,000 lbs Cap. Distributed Weight
