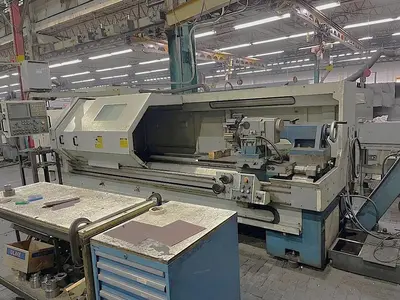

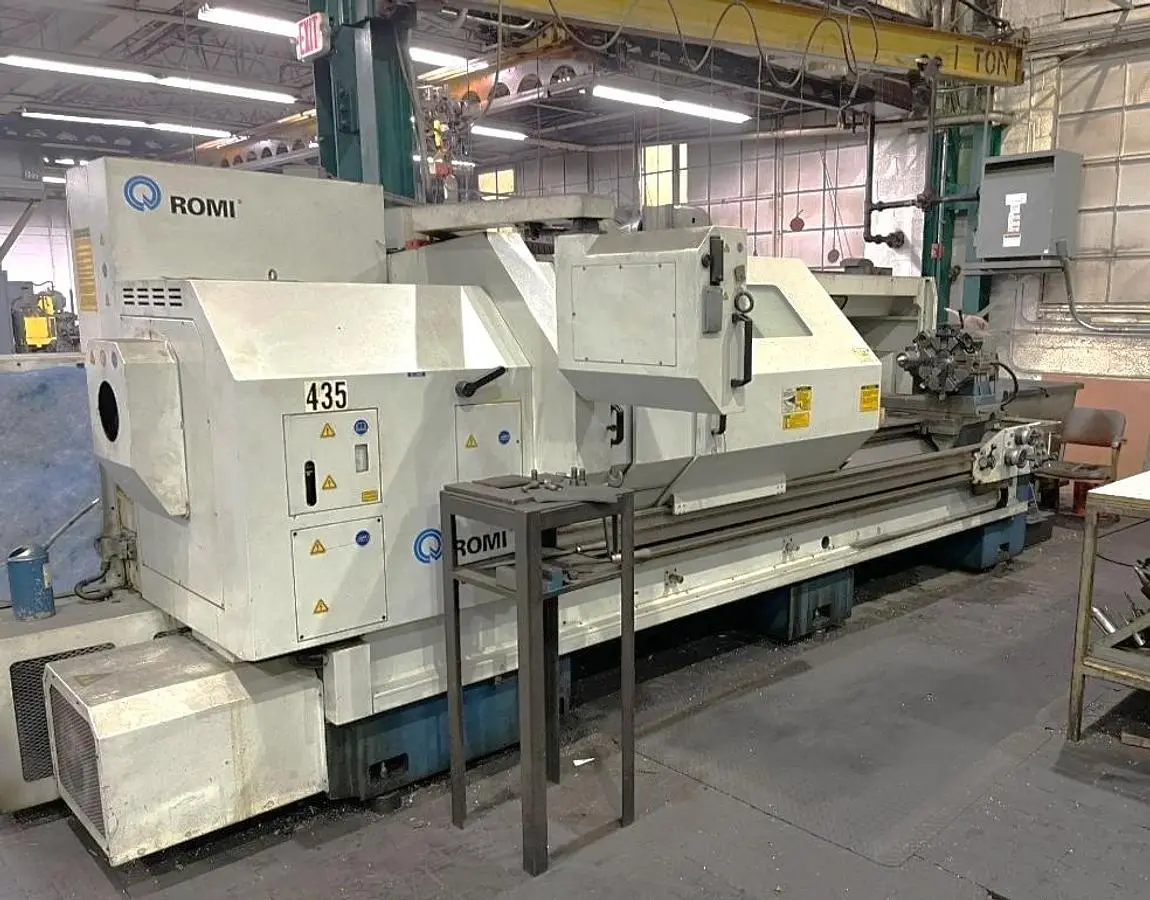

USED 2002 ROMI M27 X 120"

15" Manual Chuck
8 Station Turret
X & Z Electronic Hand Wheels
Chip Conveyor
All Available Manuals
Card Interface
RS 232 Port Interface
Full Enclosure Guarding

The 2002 Romi M27 x 120" CNC lathe is a robust and versatile machine equipped with a Fanuc 21i-T CNC Control for precision operations. Featuring a generous 15" manual chuck and a substantial 4" bar capacity, this lathe is ideal for handling medium to large workpieces. With a maximum swing of 27" over the bed and 120" distance between centers, it accommodates long parts with ease.

This model includes an 8-station turret for efficient multi-tool operations and has impressive rapid traverse rates of 295 IPM. The spindle, with an A2-8" nose and 4.1" bore, operates within a speed range of 2 to 1,800 RPM, powered by a 30 HP motor. It also features a tailstock with a 3.94" quill diameter and 7.08" travel, offering a #5MT taper for additional support during machining operations.

Rounding out its capabilities is the integrated chip conveyor for efficient debris management. With floor space dimensions of 207" x 80" x 80" and a weight of 15,430 lbs, the Romi M27 provides stable, high-performance milling suitable for a wide range of metalworking applications.

Machine Control: Fanuc 21i-T CNC Control
Chuck Size: 15" Manual Chuck
Maximum Swing over Bed: 27"
Distance Between Centers: 120"
Maximum Swing Over Cross Slide: 16.93"
X-Axis Travel: 14.17"
Z-Axis Travel: 120"
Spindle Nose / Spindle Bore: A2-8" / 4.1"
Spindle Speeds: 2 - 1,800 RPM
Spindle Motor: 30 HP
Number of Tool Positions: 8 Station Turret
Rapid Traverse Rates: 295 IPM
Tailstock Quill Diameter / Quill Travel / Taper: 3.94" / 7.08" / #5MT
Floor Space Required: 207" x 80" x 80"
Machine Weight: 15,430 lbs
