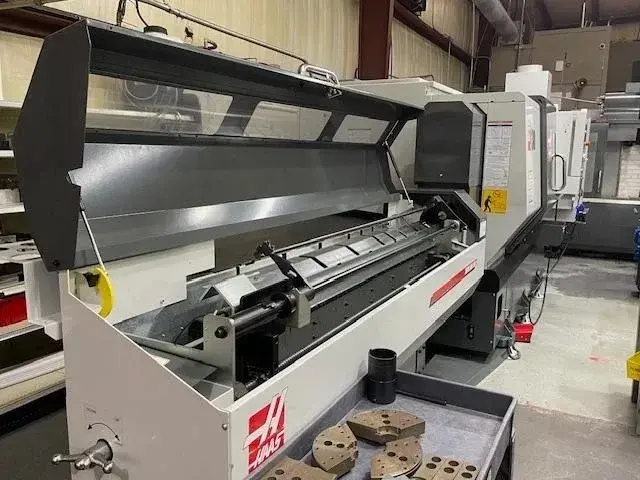

2015 HAAS ST-30 CNC Lathe in used condition. Features include 31.75" swing, 26" machining length, 10" chuck, 3" bar capacity, 30 HP, max RPM 3400, and 21" turning diameter. Ideal for enhancing your precision machining capabilities.
| Swing | 31.75" | 806.45 mm |
| Machining Length | 26" | 660.4 mm |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 3" | 76.2 mm |
| Power | 30 hp | 22.4 kW |
| Max RPM | 3,400 RPM | 3,400 RPM |
| Turning Dia | 21" | 533.4 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (HAAS) | CNC (HAAS) |
Power Requirement: 220 V
Phase: 3 phase
Frequency: 50/60 Hz
Full Load Amps: 70 A
Largest Load: 65 A
Short Circuit Interrupting Capacity: 10,000 A
Arc Flash Rating: HRC-1 (208–240 VAC models)
Control Voltage: Per Haas specifications
Date of Manufacture: 12/2015
Country of Manufacture: USA
Machine Run Time: 3,465 hours
Haas CNC Control
10″ Chuck
Collet Attachment
300 Bar Feeder
Parts Catcher
Chip Conveyor
Coolant System
Tailstock
