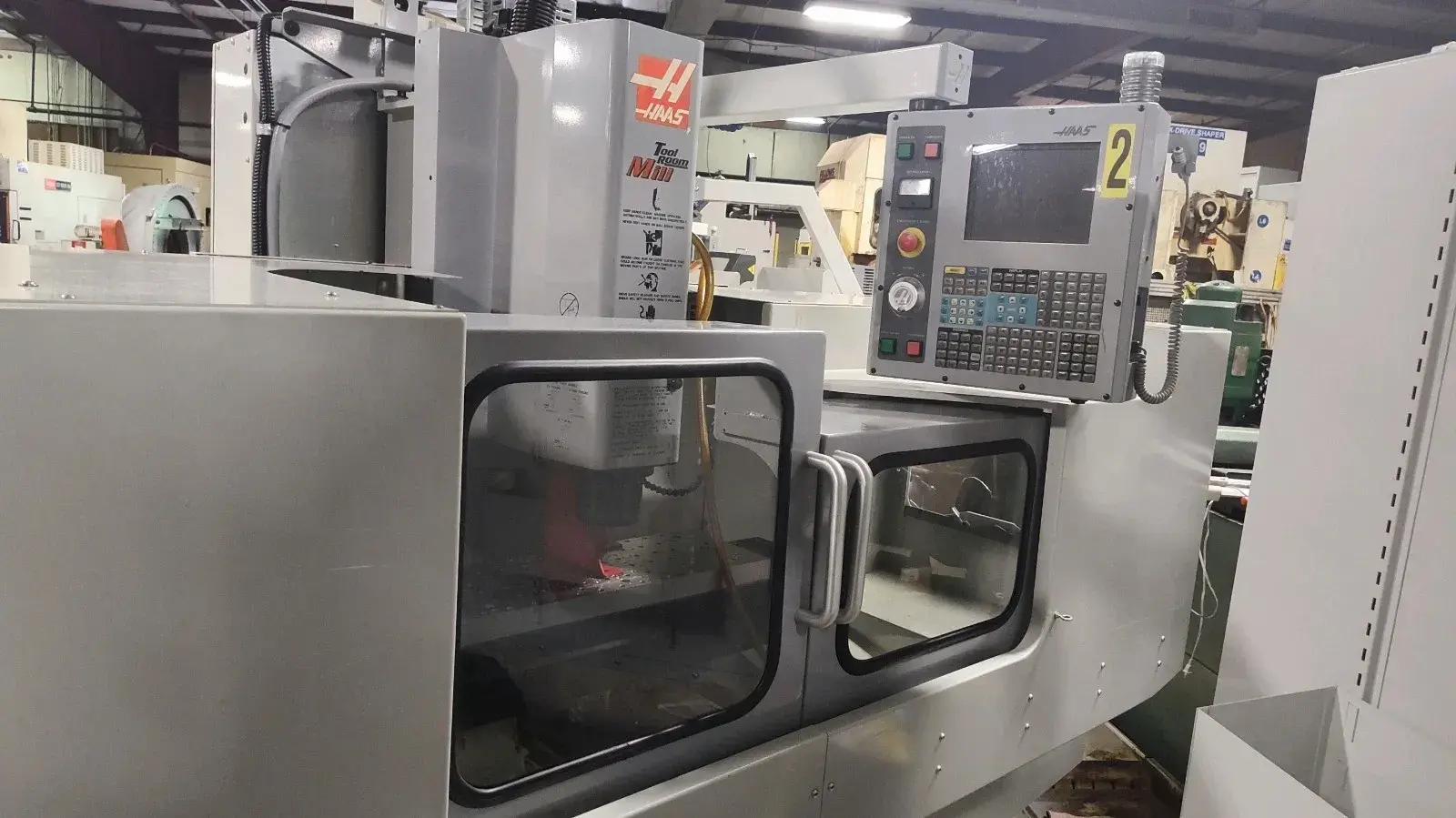

HAAS TM-1 Vertical Machining Center, 2005, used condition. Travels: X 30", Y 12", Z 16". Power: 7.5 HP, 4000 RPM, CT/BT 40 taper. Table: 10.5"W x 47.75"L. Ideal for precision jobs.
| X | 30" | 762 mm |
| Y | 12" | 304.8 mm |
| Z | 16" | 406.4 mm |
| Power | 7.5 hp | 5.6 kW |
| RPM | 4,000 RPM | 4,000 RPM |
| Taper | CT40 | CT40 |
| Table-W | 10.5" | 266.7 mm |
| Table-L | 47.75" | 1,212.8 mm |
| Control | CNC | CNC |
Power Requirement: 208 / 240 V, 1 phase, 50/60 Hz
Full Load Amps: 25 A @ 208 V / 40 A @ 240 V
Main Load Rating: 15 A
Short Circuit Rating: 10,000 A
Spindle Motor Power: 7.5 HP
Spindle Taper: CT40
Year of Manufacture: 2005 (per serial plate)
Haas CNC Control
Fully Enclosed Work Area
Coolant System
CT40 Spindle
7.5 HP Spindle Motor
