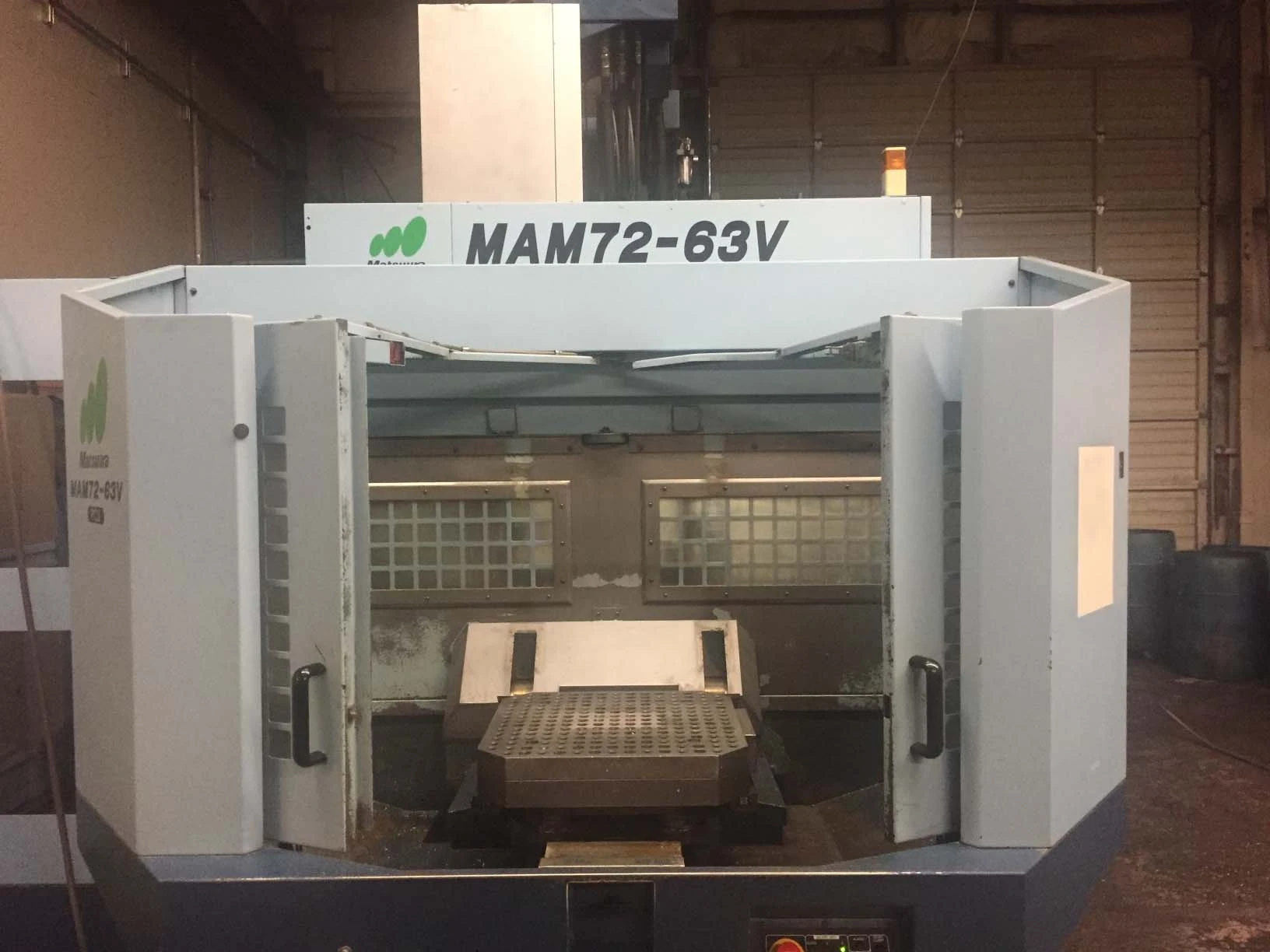

USED 2007 MATSUURA MAM72-63V
Description
FANUC 30i control, 30"X 33"Y 26"Z travels, CAT40, 12k rpm spindle, twin pallet with 2 extra pallets, LOADED Laser tool setter, 120 tools (wine rack is expandable to 240), thru tool coolant rigid tapping, tool radius comp for 5-axis machining, tolerance control, MAYFRAN conveyor
Specifications
| X Axis Travel | 29.92" | 759.97 mm |
|---|---|---|
| Y Axis Travel | 33.26" | 844.8 mm |
| Z Axis Travel | 25.98" | 659.89 mm |
| Spindle Speed | 12,000 RPM | 12,000 RPM |
| ATC Capacity | 120 | 120 |
| Spindle Taper | Cat 40 | Cat 40 |
| # Axis | 5 | 5 |
| Table dimensions | 19.68" x 19.68" | 19.68" x 19.68" |
| Control | CNC (Fanuc 30i Control) | CNC (Fanuc 30i Control) |
Equipped With
FANUC 30i control
12,000 rpm spindle
Twin pallet with 2 extra pallets (4 total pallets)
LOADED Laser tool setter
Thru tool coolant Rigid tapping
300 work offsets
1000 Tool offsets
2mb Data Server on board
Tool radius comp for 5-axis machining
Tolerance control
Tool life management
Auto tool measurement
MAYFRAN conveyor for aluminum (backflush fine swarf removal)
