USED 2014 BIG JOE S22-62-RF

2014 Big Joe S22-62-RF Walk-Behind Electric Stacker | 2,200 LB CapacityUNIT OVERVIEW This 2014 Big Joe S22-62-RF is a highly efficient, fully powered electric stacker designed for modern warehouse environments. As a "Fork-Over" model, it features a specialized design where the forks nest directly over the outriggers, providing an ultra-compact footprint for superior maneuverability in narrow aisles. This unit is the perfect "plug-and-play" solution for facilities handling skids and open-bottom pallets.TECHNICAL SPECIFICATIONSManufacturer: Big Joe (Big Lift LLC)Model: S22-62-RFSerial Number: 426151653Year of Manufacture: 2014Capacity: 2,200 lbs @ 24" Load CenterMax Lift Height: 62" (Single Stage Mono-Mast)Collapsed Height: 78.5" (Fits through standard doorways)Power: 24V DC System (Maintenance-Free)Charger: Built-in 110V AC Integral Smart ChargerKEY DEALER FEATURESSpecialized Fork-Over Design The Big Joe S22-62-RF is engineered for maximum space savings. Because the forks sit directly atop the rigid outrigger legs, this unit boasts a tight 52.5" turning radius, allowing for efficient right-angle stacking in aisles as narrow as 60 inches.Simplicity in Charging & Maintenance Designed for facilities without specialized electrical infrastructure, this unit features an on-board 110V charger that plugs into any standard wall outlet. The maintenance-free AGM batteries eliminate the need for water topping or acid management, ensuring a low cost of ownership.Intuitive Ergonomic Controls The offset steering tiller provides the operator with an unobstructed line of sight. It features easy-to-use thumb controls for travel and lift/lower, along with a safety-reversing "belly" switch and an automatic electromagnetic disc brake for enhanced operator protection.Rugged Mono-Mast Construction The single-stage mono-mast offers excellent visibility and structural rigidity. With a 2,200 lb lifting capacity, it is powerful enough for heavy skids while remaining compact enough for general work positioning and transportation.

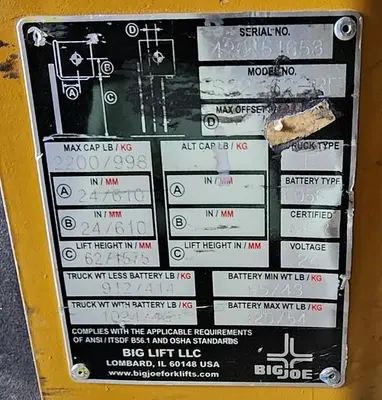

S/N: 426151653
Max Capacity: 2200 lbs
Lift Height: 62"
Truck Weight w/Battery: 1021 lbs
* Max Lift Height: 62" (Single Stage Mono-Mast)
* Power: 24V DC System (Maintenance-Free)
