USED CM MODEL E

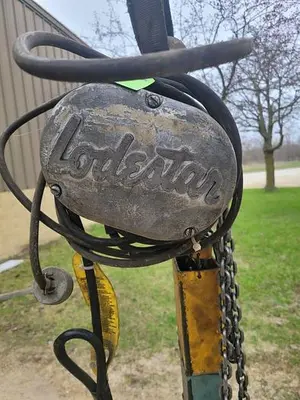

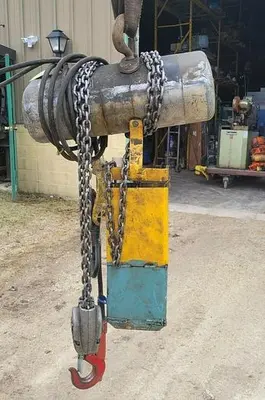

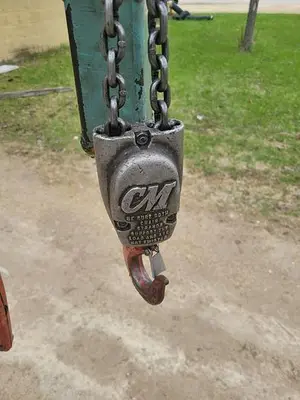

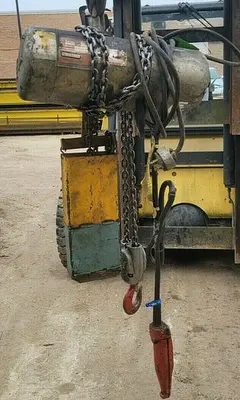

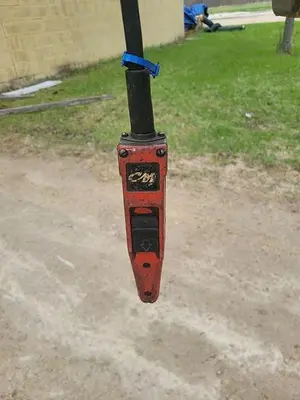

CM Lodestar Model E | 1/2 Ton High-Speed Electric Chain HoistCapacity: 1,200 lbs (1/2 Ton) | Lift Speed: 32 FPM | Power: 3-PhaseProfessional OverviewThe CM Lodestar Model E is the industry standard for reliability and speed. While standard hoists often operate at 16 FPM, the Model E doubles your productivity with a rapid 32 Feet Per Minute lift speed. Built with a rugged, self-contained housing and a precision-machined drivetrain, this hoist is designed for an H4 duty cycle, meaning it can handle nearly continuous operation without overheating.Technical SpecificationsModel: Model E (Lodestar Series)Capacity: 1,000 lbs (1/2 Ton)Lift Speed: 32 FPMVoltage: 230/460V, 3-Phase, 60HzStandard Lift: 10' Control: 2-Button Pendant Station (NEMA 4X rated)Chain: Zinc-plated Hoistsaloy® load chainDealer HighlightsHigh-Speed Throughput: The 32 FPM lifting speed makes this one of the fastest 1/2-ton hoists in its class, perfect for fast-paced assembly and loading tasks.Three-Phase Performance: The 3-phase motor provides consistent power delivery and lower amperage draw, reducing wear on electrical components during heavy use.Advanced Braking: Features a heavy-duty DC electrical brake for instantaneous load holding and a regenerative braking system that reduces heat buildup.Overload Protection: Equipped with a factory-set Protector™ overload device that prevents the hoist from lifting loads beyond its rated capacity.Lifetime Lubrication: The heavy-duty gearbox is lubricated for life with non-oxidizing grease, significantly reducing long-term maintenance requirements.
