NEW BUSCH MACHINERY BM-706
Overview
Description

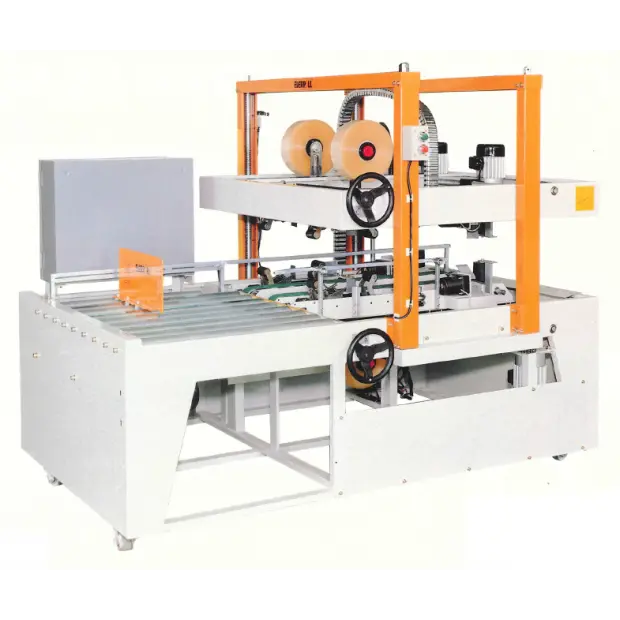

The BM-706 Top Bottom Drive Automatic Edge Sealer for cases works in conjunction with the BM-705 automatic case sealer or the BM-702 semi-automatic case sealer. First, the case is sealed by the case sealer on the center line of the top and bottom of the case. Then the case is pushed off 90 degrees into the edge sealer where it completes the “H” seal top and bottom. If you need a system that runs a straight line, we can integrate a 90-degree turntable and eliminate the shuttle.
Case Handling Specifications:
Length: 11” minimum to 23.5” maximum (custom sizes available)
Width: 9.8″ minimum to 23.5″ maximum
Height: 7.8″ minimum to 23.6″ maximum
Throughput Speed: 75 feet/minute drive belt speed
Includes:
Standard 2″ Wide Taping Heads
Casters (4)
Tool Kit
110 VAC, 60 Hz, 1P
Options:
In-feed and Discharge Roller Tables
3” Width Taping Heads
