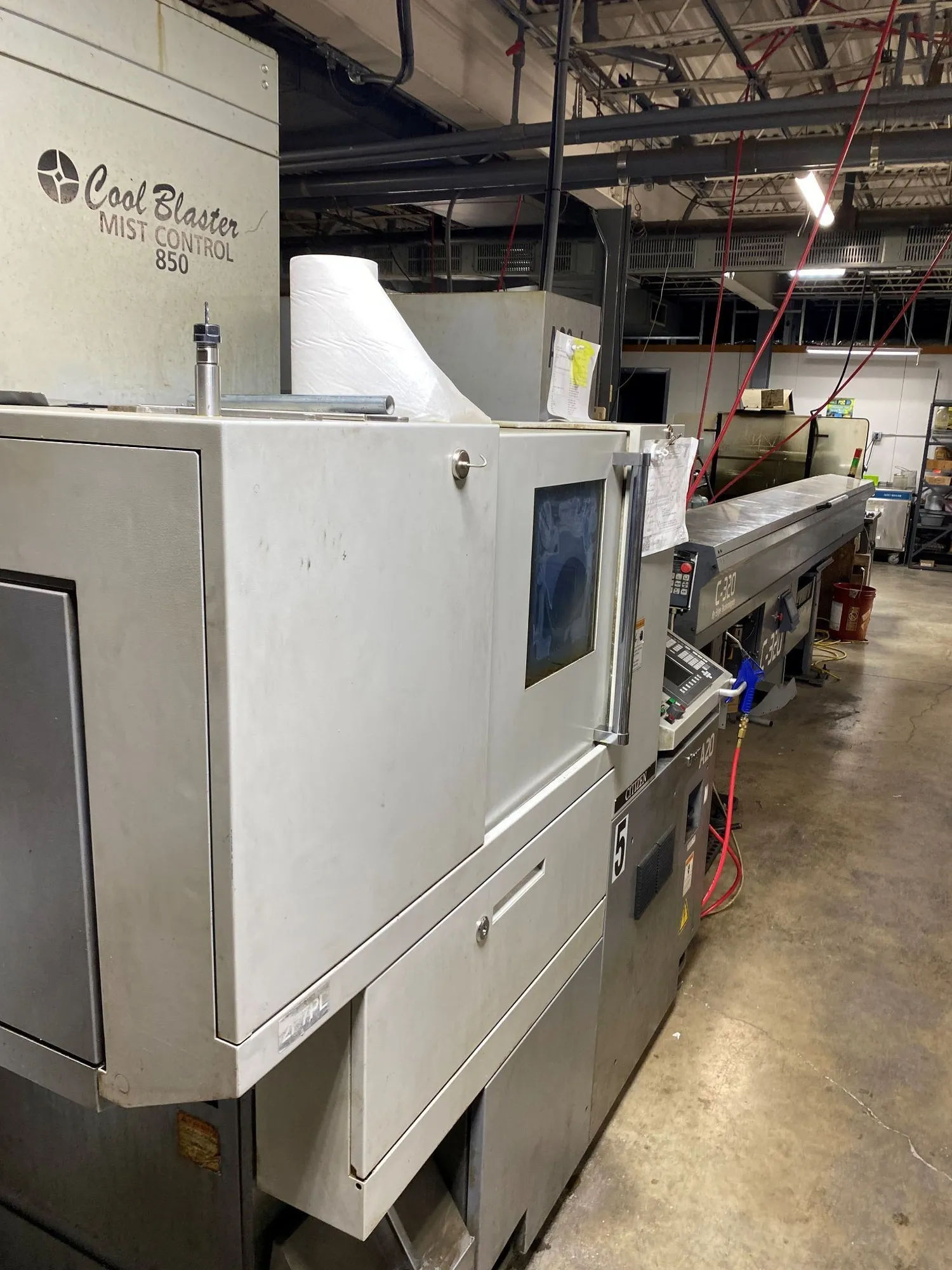

USED 2008 CITIZEN A20VIIPL

2008 CITIZEN A20VIIPL CNC Swiss Lathe, 5 hp, 8,000 RPM, 7-axis, with 0.78" capacity. Features 21 tool mounts, Edge Technologies C-320 automatic bar feeder. Ideal for precision machining tasks.

Machine Diameter: 3/4" (20 mm)
Machine Length: 6 1/2" (165 mm)
Front Drilling Diameter: 1/4" (10 mm)
Front Tapping Diameter: M8
Spindle Hole: 1 1/4" (31 mm)
Main Spindle Speed: 8,000 RPM
Live Tool RPM: 6,000 RPM
Chuck Dia (Back Spindle): 3/4" (20 mm)
Back Spindle Speed: 8,000 RPM
# of Tools Mounted: 21
Turning Tools on the Gang Post: 5
Rotary Tools for Cross Machining: 4
Tools for Front Drilling: 4
Tools for Back Drilling: 8

Edge Technologies C-320 automatic, magazine-style bar feeder
