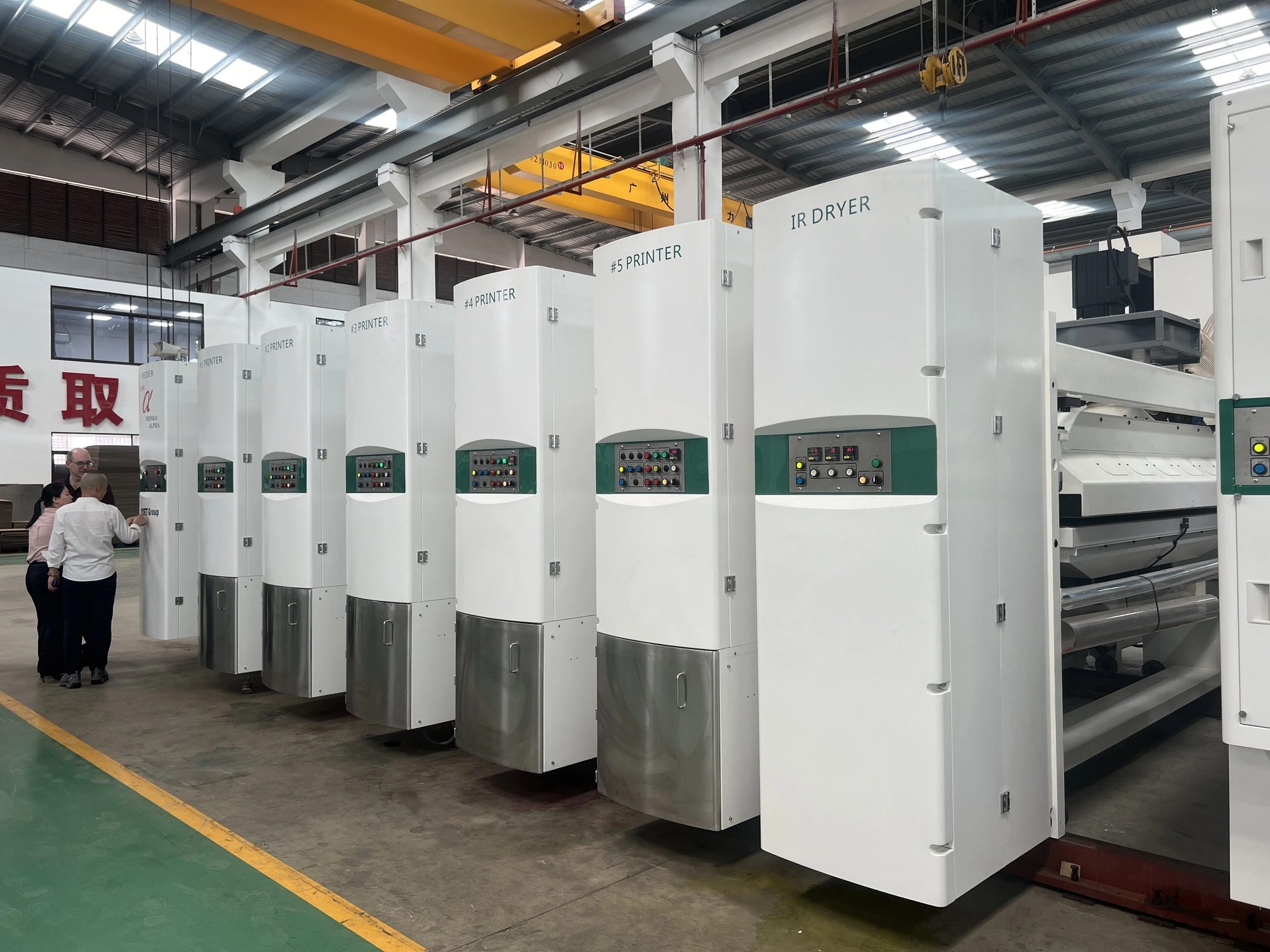

NEW 2026 SHINKO SA-1620-RDC

66" X 80" SHINKO SA1620 3/COLOR SERVO-DRIVEN FLEXO ROTARY DIE CUTTER, EQUIPPED WITH:

FEED SECTION
SERVO DRIVEN LEAD EDGE FEEDER
AUTO RETURN TO “0” POSITION
BACK GUIDE AUTO-SET
LEAD EDGE AUTO-SET
PAPER DUST REMOVER (SHINKO’S ORIGINAL DESIGN)
SHEET JAM DETECTOR
BATCH COUNTER
SIDE TAMPER
LEAD EDGE TABLE GRATE-LESS MECHANISM
FEEDING PERFORMANCE AND RELIABILITY ARE INCREASED DRAMATICALLY BY ADOPTING A LEAD EDGE FEEDER THAT IS CAPABLE OF HANDLING WARPED BOARD BY INDEPENDENTLY DRIVING EACH AXIS BY AN INDEPENDENT SERVO MOTOR.
THE FEEDER IS DESIGNED TO DECREASE NOISE AND VIBRATION WHEN RUNNING AT HIGH SPEEDS, CREATING A SAFER, QUIETER ENVIRONMENT FOR OPERATORS AND PLANT PERSONNEL. AN ADDED REGISTRATION COMPENSATOR GREATLY INCREASES THE ACCURACY OF THE FEEDER.

PRINTING UNITS ( 0 TOP PRINT), (3 BOTTOM PRINT UNITS)

THE USE OF A CHAMBERED DOCTOR BLADE SYSTEM COVERS INK UNIFORMLY REGARDLESS OF MACHINE SPEED OR SHEET SIZE, ELIMINATING UNEVEN OR FADED COLORS. PRINT CYLINDER MOTORIZED LATERAL ADJUSTMENT
PRINT CYLINDER AUTO RETURN TO “ 0 ” POSITION
SHINKO INKING SYSTEM
INK FLOW MONITORING BUZZER
CERAMIC ANILOX ROLL, CHAMBERED DOCTOR BLADE INKING SYSTEM
VACUUM TRANSFER
THREE SERVO MOTORS CONTROL THE PRINT CYLINDER, VACUUM BOX, AND ANILOX ROLL SEPARATELY

DIE-CUTTING UNIT

AUTOMATIC LATERAL ADJUSTMENTS
ANVIL COMPENSATION SYSTEM
ANVIL GRINDING SYSTEM
SERRAPID SYSTEM (OPTIONAL)

30” DWELL SECTION (OPTIONAL)

VACUUM TRANSFER
MOTORIZED BOARD CALIPERS WITH READOUT
ZONE CONTROLLED HEATING
JAM DETECTORS
SAFETY WIRE STOP SWITCH FOR EMERGENCY
LED TEMPERATURE READOUT
COOLING FANS

VARNISH UNIT: (OPTIONAL)
ROLL TO ROLL VARNISH UNIT

CNC:

TOUCH PANEL
MAIN CONTROL PANEL
UNIVERSAL POWER SUPPLY
TEACHING FUNCTION
DIAGNOSTIC SYSTEM
