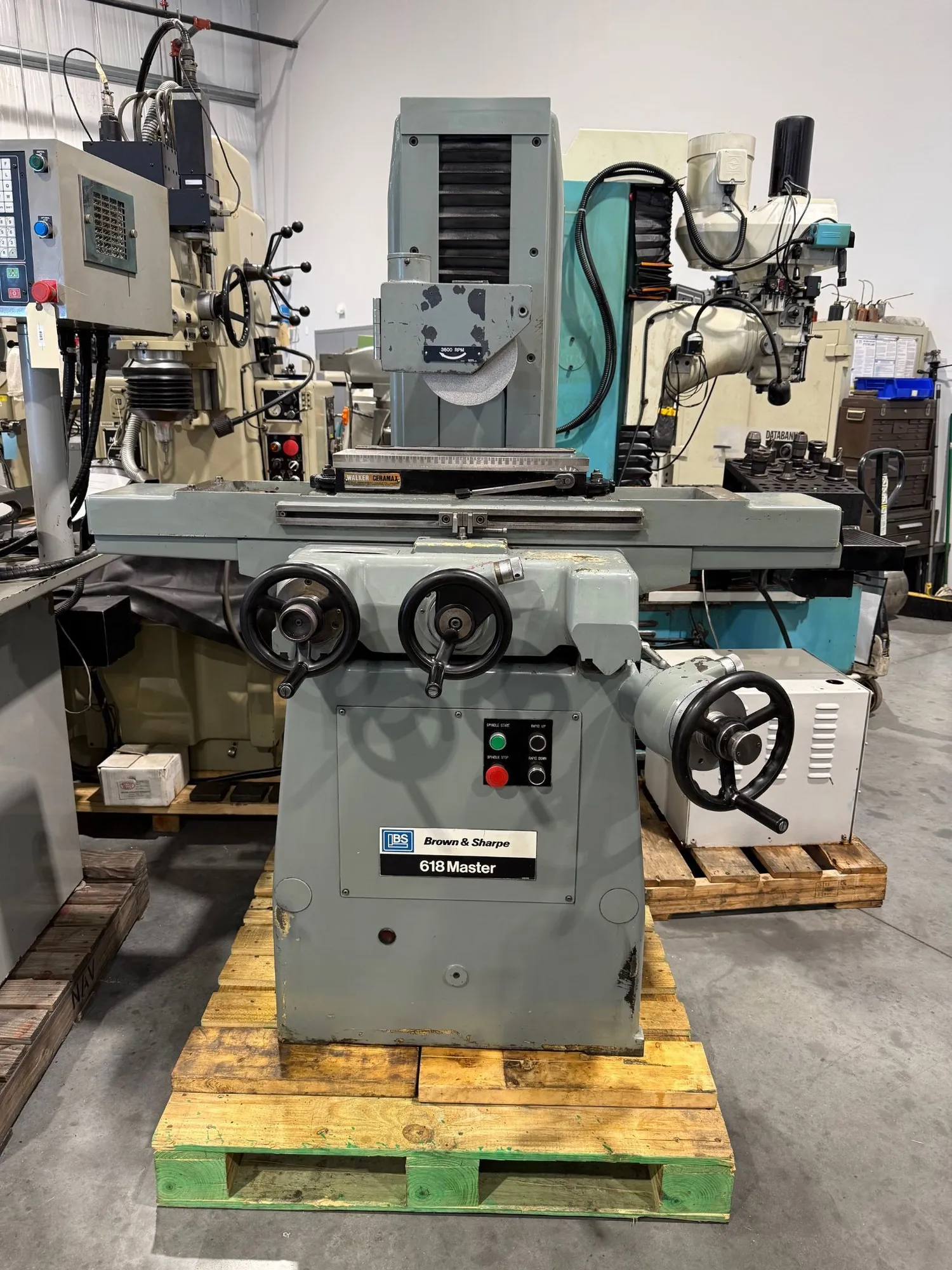

Brown & Sharpe 618 Master Surface Grinder 1984’ USA #8140
| Table-W | 6" | 152.4 mm |
| Table-L | 18" | 457.2 mm |
| Power | 2 hp | 1.5 kW |
| Grinding Wheel Width | 1.25" | 31.75 mm |
| Grinding Wheel Dia. | 8" | 203.2 mm |
| Dimensions | 40” x 46” x 69” H | 40” x 46” x 69” H |
| Weight | 1980 Lbs. | 1980 Lbs. |
Brown & Sharpe 618 Master Surface Grinder 1984’ USA #8140
Reference #8140
Model # 618 Master
Serial # 523-45-217
Year of manufacture- 1984’
Table size- 6” x 18”
Max height under wheel- 18”
Wheel size- 8” x ½” x 1-1/2”
Longitudinal travel- 19”
Cross travel- 7”
Cross handwheel graduation- 0.0005”
Cross fine handwheel graduation- 0.0001”
Vertical handwheel graduation- 0.00025”
Vertical fine handwheel graduation- 0.00005”
Spindle speed- 2,850 R.P.M.
Power elevation
Roller bearing style table
Fine feed knobs on Cross & Vertical
6” x 18” Walker Fine pole magnetic chuck
Bijur lube system
2 H.P. Spindle
Machine is wired for 230 volt / 3 phase / 60 H.Z.
Machine weight- 1,980 Lbs.
Machine dimensions- 40” x 46” x 69” H
Machine location- F.O.B. Sarasota, Florida
