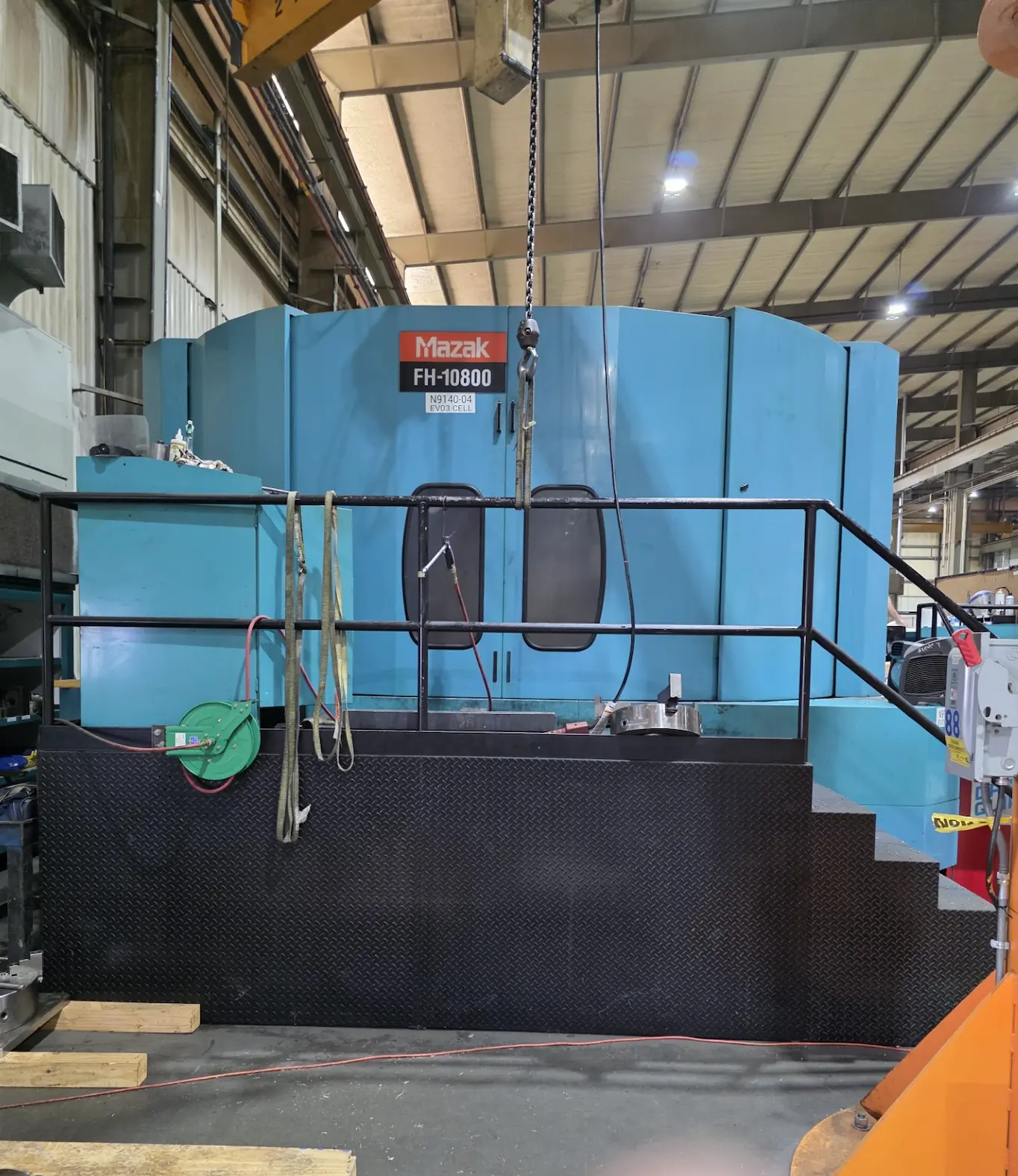

Used Horizontal Machining Center, 4-axis, 66.9" X, 55.1" Y/Z travel, 50 HP, 7,000 RPM, 40 ATC, CAT 50 Taper, NC rotary table, hi-torque spindle, Mazatrol PC-Fusion-CNC 640M.
| X | 66.9" | 1,699.3 mm |
| Y | 55.1" | 1,399.5 mm |
| Z | 55.1" | 1,399.5 mm |
| Power | 50 hp | 37.3 kW |
| RPM | 7,000 RPM | 7,000 RPM |
| # ATC | 40 | 40 |
| Taper | CAT 50 | CAT 50 |
| Pallet-W | 39.3" | 998.22 mm |
| Pallet-L | 39.3" | 998.22 mm |
| # Axis | 4 | 4 |
| Control | CNC (MAZATROL PC-FUSION 640M) | CNC (MAZATROL PC-FUSION 640M) |
Top of Pallet 3.94"Min/59.06"Max
Pallet Center 7.87"Min/62.99"Max
Tool Capacity 40
Table Index NC Rotary 360,000 pos
Spindle Horsepower (30 Min/Cont) 50/40 HP
Spindle Torque 867.6ft/lbs (Hi-Torque Package)
Spindle RPM 7,000
Number of Ranges 2 Range
Machine Weight 66,138 lbs.
Mazatrol PC-Fusion-CNC 640M
Windows 2000 Operating System
Performance CNC
Inch/Metric Conversion
213PSI Thru Spindle Coolant w/Hi-Pressure prep 1000psi
Prep for MMS-B OMP60
Hinge type Chip Conveyor for Steel
Hi-Torque Spindle 7000rpm
NC Rotary Table 360,000 Position
2 Pallets
