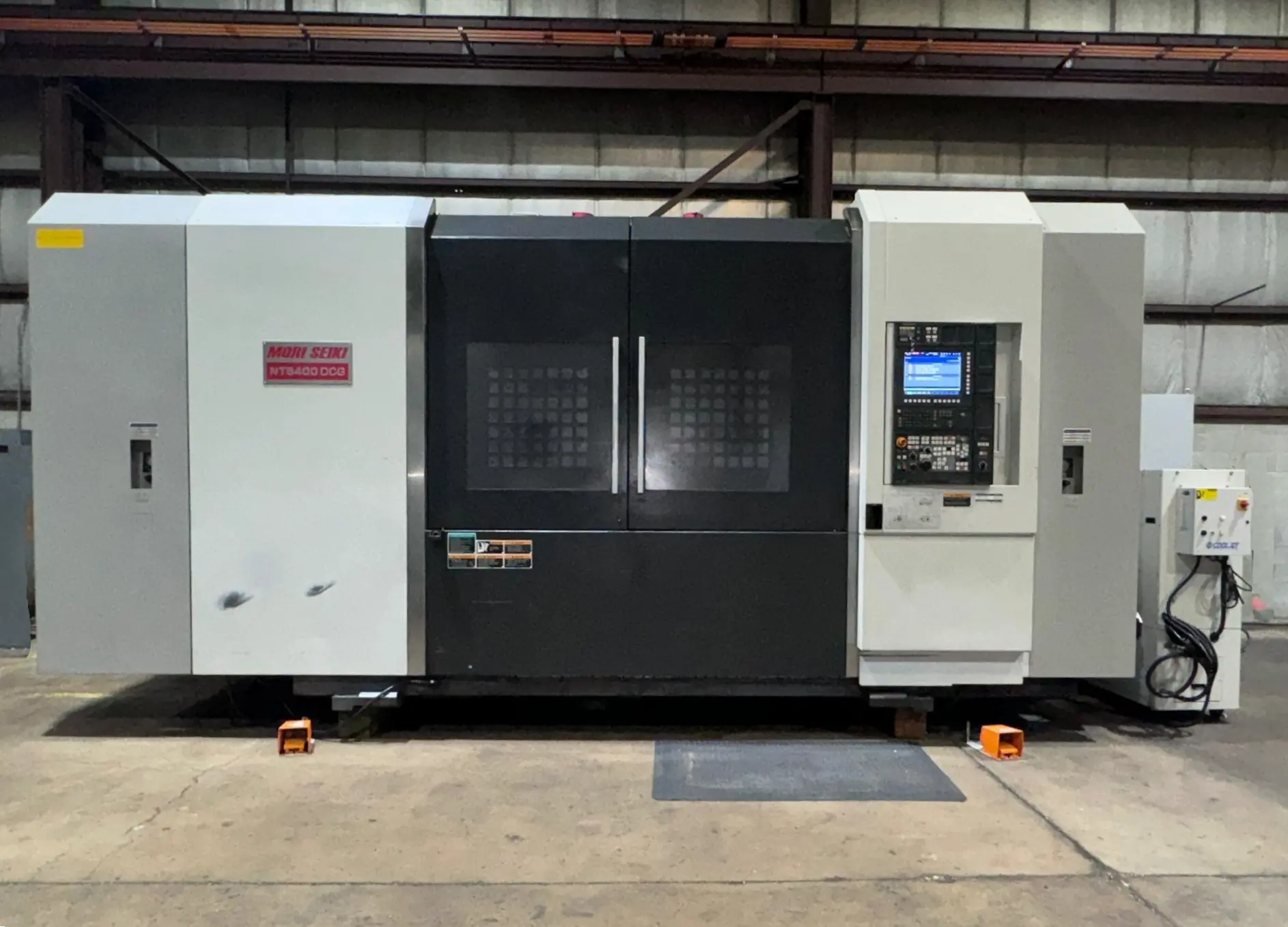

USED 2007 MORI SEIKI NT-5400 DCG-1800SZ
Overview
Description
MXS-711 III CNC control, 36.2” max. turning dia., 75.6” max. turning length, 2,400 RPM integrated spindle motor w/ C-axis, 6,000 RPM max. rotational speed of turning/milling spindle, 80-tool pockets, Capto C8 tooling, simultaneous 5-axis machining, 1,000 PSI Chip Blaster high pressure coolant, dual 15" power chucks, milling on Turret 1, CoolJet coolant pump, 8,956 spindle hours
Specifications
| Swing | 36.2" | 919.48 mm |
|---|---|---|
| Machining Length | 75.6" | 1,920.2 mm |
| Max. Turning Diameter | 36.2" | 919.48 mm |
| X-Axis | 40.9" | 1,038.9 mm |
| Y-Axis | 10" | 10" |
| Z-Axis | 76.4" | 1,940.6 mm |
| B-Axis | .0001° | .0001° |
| C-Axis | .001° | .001° |
| ATC | 80 | 80 |
| # Axis | 5 | 5 |
| Spindle Taper | Capto C8 | Capto C8 |
| Chuck Size | 15" | 381 mm |
| Bar Capacity | 4" | 101.6 mm |
| Spindle Bore | 4.5 in | |
| Spindle Nose | A2-11 | A2-11 |
| Power | 50 hp | 37.3 kW |
| Max RPM | 2,400 RPM | 2,400 RPM |
| Turret Stations | 10 | 10 |
| Live Tooling | Yes | Yes |
| Live Milling Power | 40 hp | |
| Live Milling Max RPM | 6000 rpm | 6,000 RPM |
| Sub Spindle | Yes | Yes |
| Sub Spindle Power | 50 hp | |
| Sub Spindle Max RPM | 2400 rpm | 2,400 RPM |
| Sub Spindle Chuck | 15 in |
Equipped With
MXS-711 III CNC Control
Simultaneous 5-Axis Machining
1,000 PSI Chip Blaster High Pressure Coolant
Dual 15" Power Chucks
Milling On Turret 1
Cooljet Coolant Pump
Tool Center Point Control
Part Program Strage (2MBYTE)
Number of Stored Programs: 1000
Remote Communication Function: Fast Data Server [100BASE-TX]
User Memory Area (Built-In MAPPS): 50 MB
Number of Tool Offset Pairs: 240
Tool Offset for 5-Axis Machining: Provided
Number of Work Coordinate System Pairs: 6
Programmable Data Input: Provided
Number of Custom Macro Common Variables: 600
AI Contour Control: 2
Diameter/Radius Dynamic Exchange: Provided
Tilted Working Plane Command: Provided
Nano Smoothing: Provided
Tool Life Management: B
Number of Tool Life Management (MORI): Max. 120 Pairs* 8
Load Monitor: B
