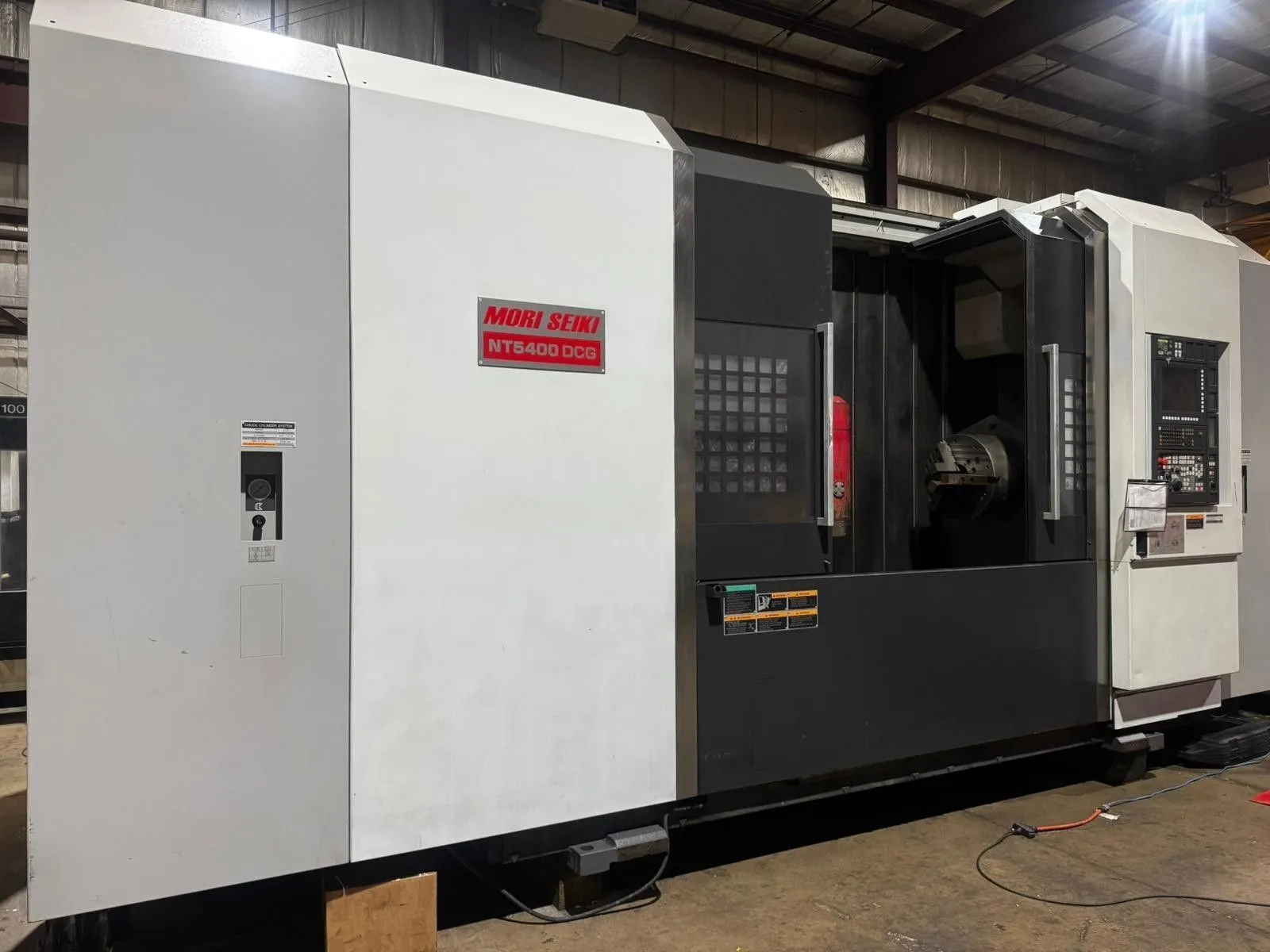

USED 2007 MORI SEIKI NT-5400 DCG-1800SZ
Overview
Description
MXS-711 III CNC control, 36.2” max. turning dia., 75.6” max. turning length, 2,400 RPM integrated spindle motor w/ C-axis, 6,000 RPM max. rotational speed of turning/milling spindle, 80-tool pockets, Capto C8 tooling, simultaneous 5-axis machining, 1,000 PSI Chip Blaster high pressure coolant, dual 15" power chucks, milling on Turret 1
Specifications
| Swing | 36.2" | 919.48 mm |
|---|---|---|
| Machining Length | 75.6" | 1,920.2 mm |
| Max. Turning Diameter | 36.2" | 919.48 mm |
| X-Axis | 40.9" | 1,038.9 mm |
| Y-Axis | 10" | 10" |
| Z-Axis | 76.4" | 1,940.6 mm |
| C-Axis | .001° | .001° |
| ATC | 80 | 80 |
| # Axis | 5 | 5 |
| Spindle Taper | Capto C8 | Capto C8 |
| Chuck Size | 15" | 381 mm |
| Bar Capacity | 4" | 101.6 mm |
| Spindle Bore | 4.5 in | |
| Spindle Nose | A2-11 | A2-11 |
| Power | 50 hp | 37.3 kW |
| Max RPM | 2,400 RPM | 2,400 RPM |
| Turret Stations | 10 | 10 |
| Live Tooling | Yes | Yes |
| Live Milling Power | 40 hp | |
| Live Milling Max RPM | 6000 rpm | 6,000 RPM |
| Sub Spindle | Yes | Yes |
| Sub Spindle Power | 50 hp | |
| Sub Spindle Max RPM | 2400 rpm | 2,400 RPM |
| Sub Spindle Chuck | 15 in | |
| Control | CNC (MXS-711 III CNC control) | CNC (MXS-711 III CNC control) |
Equipped With
CAPTO C8 TOOLING
SIMULTANEOUS 5-AXIS MACHINING
1,000 PSI CHIP BLASTER HIGH PRESSURE COOLANT
DUAL 15" POWER CHUCKS
MILLING ON TURRET 1
COOLJET COOLANT PUMP
TOOL CENTER POINT CONTROL
PART PROGRAM STRAGE (2MBYTE)
NUMBER OF STORED PROGRAMS: 1000
REMOTE COMMUNICATION FUNCTION: FAST DATA SERVER [100BASE-TX]
USER MEMORY AREA(BUILT-IN MAPPS): 50 MB
NUMBER OF TOOL OFFSET PAIRS: 240
TOOL OFFSET FOR 5-AXIS MACHINING: PROVIDED
NUMBER OF WORK COORDINATE SYSTEM PAIRS: 6
PROGRAMMABLE DATA INPUT: PROVIDED
NUMBER OF CUSTOM MACRO COMMON VARIABLES: 600
AI CONTOUR CONTROL: 2
DIAMETER/RADIUS DYNAMIC EXCHANGE: PROVIDED
TILTED WORKING PLANE COMMAND: PROVIDED
NANO SMOOTHING: PROVIDED
TOOL LIFE MANAGEMENT: B
NUMBER OF TOOL LIFE MANAGEMENT (MORI): MAX. 120 PAIRS * 8
LOAD MONITOR: B
