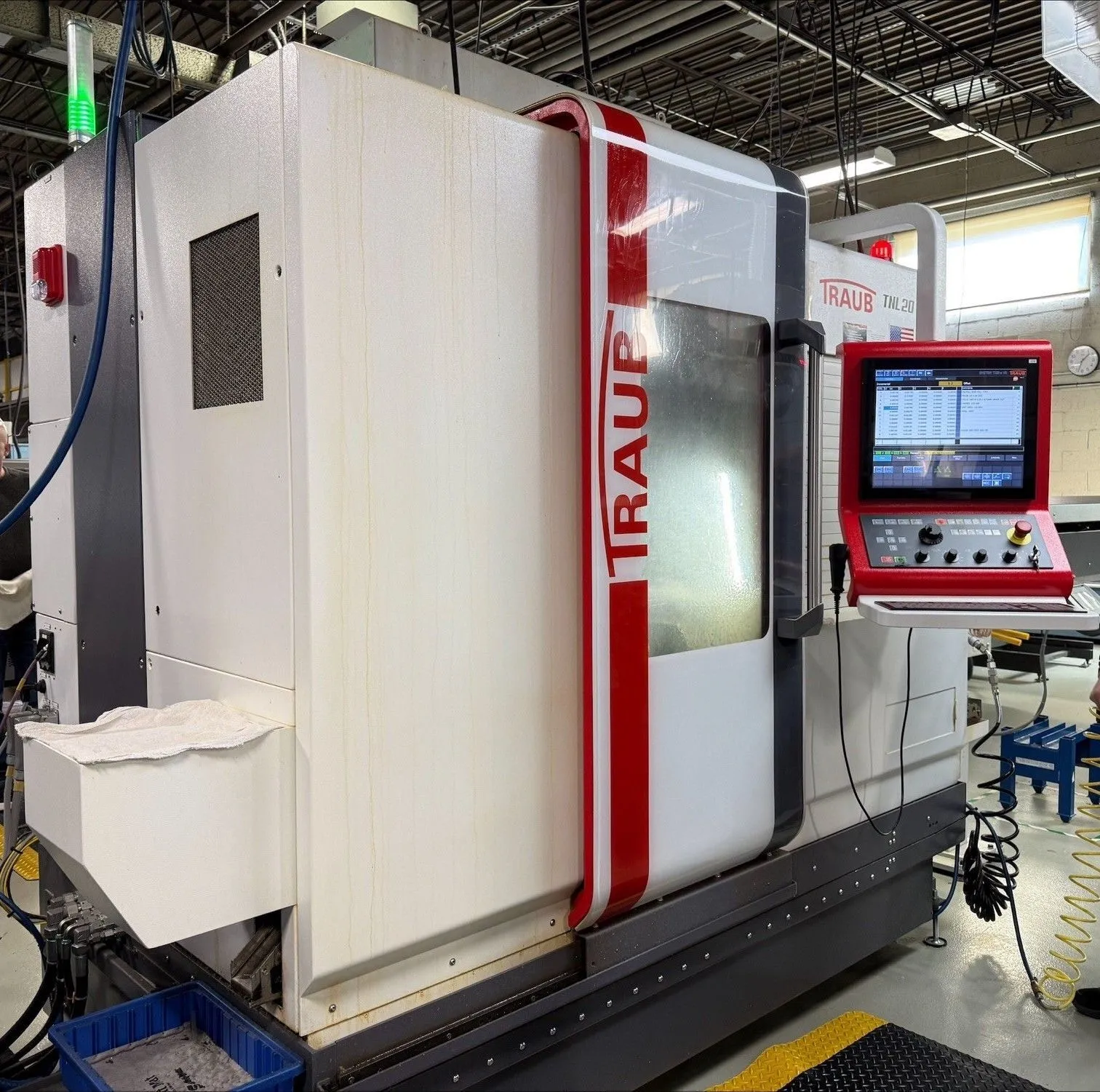

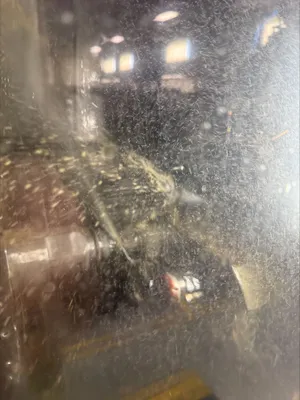

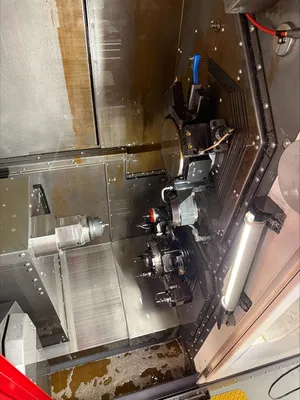

USED 2018 TRAUB TNL20-9

Simultaneous and precise manufacturing with up to three tools in the cut!

Technical data TNL20-9
Main spindle Bar capacity 20mm
Speed max. rpm 10,000
Power at 100% / 40% kW 3.0 / 5.5
Torque at 100% / 40% Nm 5.73 / 10.5
C axis resolution degree 0.001
Slide travel Z (swiss / non-swiss type) mm 205 / 80
Rapid traverse Z m/min 20

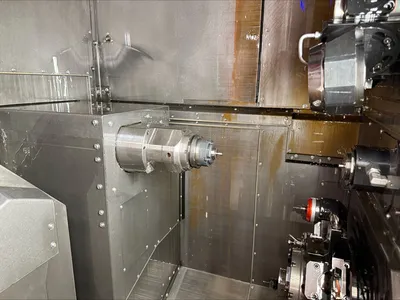

Counter spindle:
Bar capacity mm 20
Speed max. rpm 10,000
Power at 100% / 40% kW 3.0 / 5.5
Torque at 100% / 40% Nm 5.7 / 10.5
C axis resolution degree 0.001
Slide travel X, rapid traverse mm / m/min 235.5 / 20
Slide travel Z, rapid traverse mm / m/min 258 / 40

Tool carrier 1
Number of stations 8
Speed max. rpm 12,000
Power at 100% / 40% kW 1.0 / 2.0
Slide travel X, rapid traverse mm / m/min 120 / 20
Slide travel Y, rapid traverse mm / m/min +/- 25.4 / 20
Slide travel Z, rapid traverse mm / m/min 254 / 40

Tool carrier 2
Number of stations 8
Speed max. rpm 12,000
Power at 100% / 40% kW 1.0 / 2.0
Slide travel X, rapid traverse mm / m/min 120 / 20
Slide travel Y, rapid traverse mm / m/min +- 25.4 / 20
Slide travel Z, rapid traverse mm / m/min 155 / 40

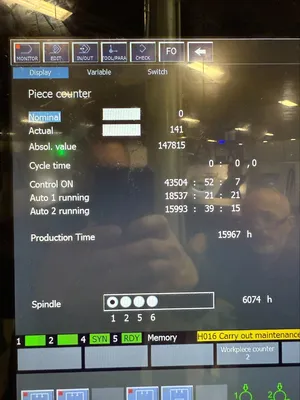

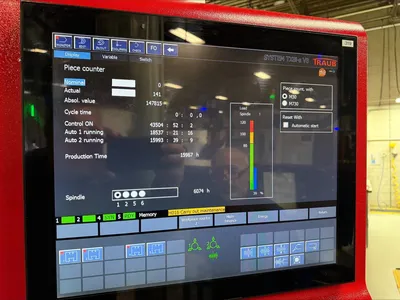

Controls: TRAUB TX8i-s V8
