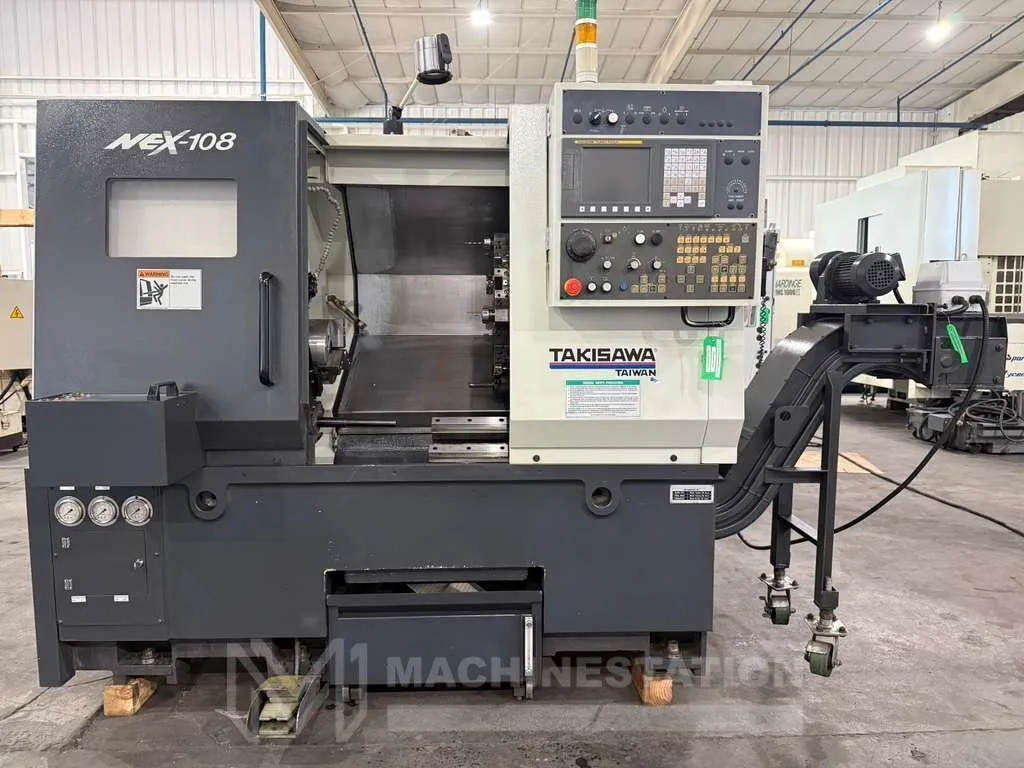

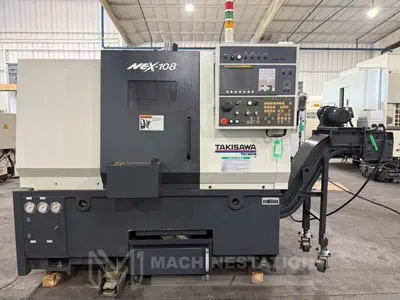

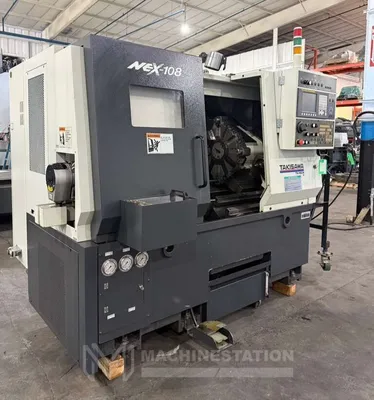

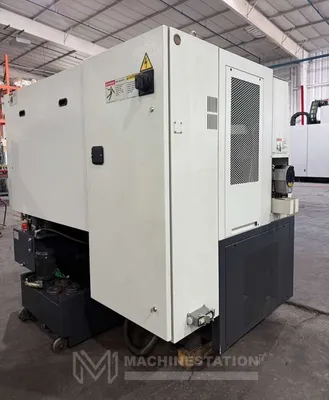

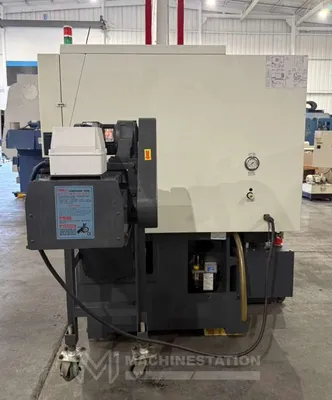

USED 2010 TAKISAWA NEX 108
Overview
Specifications
| Swing | 15.75" | 400.05 mm |
|---|---|---|
| Machining Length | 18.93" | 480.82 mm |
| # Axis | 2 | 2 |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2.04" | 51.816 mm |
| Power | 15 hp | 11.2 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Turning Dia | 12.6" | 320.04 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (Takisawa Turn-i Fanuc CNC Control) | CNC (Takisawa Turn-i Fanuc CNC Control) |
| Dimensions | 86″ x 65″ x 70″ High Approx. | 86″ x 65″ x 70″ High Approx. |
| Weight | 8,377 lbs Approx. | 8,377 lbs Approx. |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:

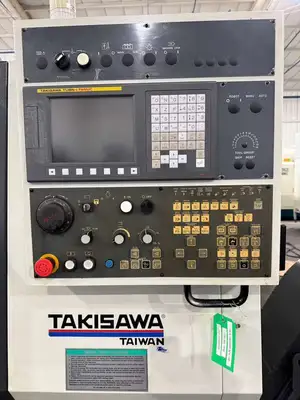

Takisawa Turn-i Fanuc CNC Control
Linear Ways Construction
PCMCIA Card Interface
Rigid Tapping
Coolant System
Automatic Lubrication system
Capacity:
Max Turning Diameter: 12.60″
Max Turning Length: 18.93″
Swing Over Bed: 15.75″
Swing Over Cross Slide: 12.60″
Max Bar Capacity: 2.04″
Travels:
X Axis Travel: 7.08″
Z Axis Travel: 20.87″
Rapid Traverse X Axis: 945 IPM
Rapid Traverse Z Axis: 945 IPM
Spindle:
Spindle Nose: A2-6
Spindle Bore: 2.48″
Spindle Speed: 4,000 RPM
Spindle Motor: 15 HP

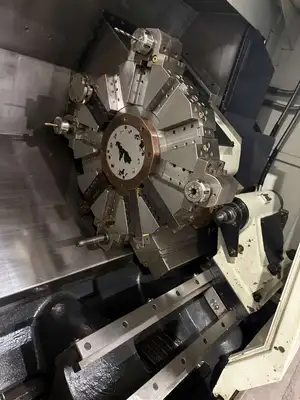

Turret:
Turret Capacity: 12 Stations
Turning Tool Shank: 1.0″
Boring Bar Shank Diameter: 1.57″
Tool Holders Type: Bolt Mounted
Tailstock:
Tailstock Taper: MT-4
Tailstock Body Travel: 16.73″
Tailstock Quill Diameter: 2.95″
Tailstock Quill Travel : 3.93″
General:
Power Source: AC 220 V, Three Phase, 50/60 Hz
Power Requirement: 21 kva
Overall Dimensions: 86″ x 65″ x 70″ High Approx.
Weight : 8,377 lbs Approx.
Equipped With
8″ 3-Jaw Hydraulic Chuck
12-Station Automatic Turret
Tool Presetter
Tailstock
Foot Switch

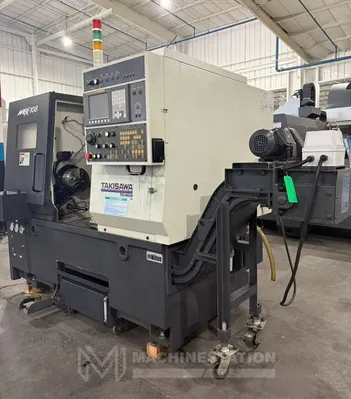

Chip Conveyor
