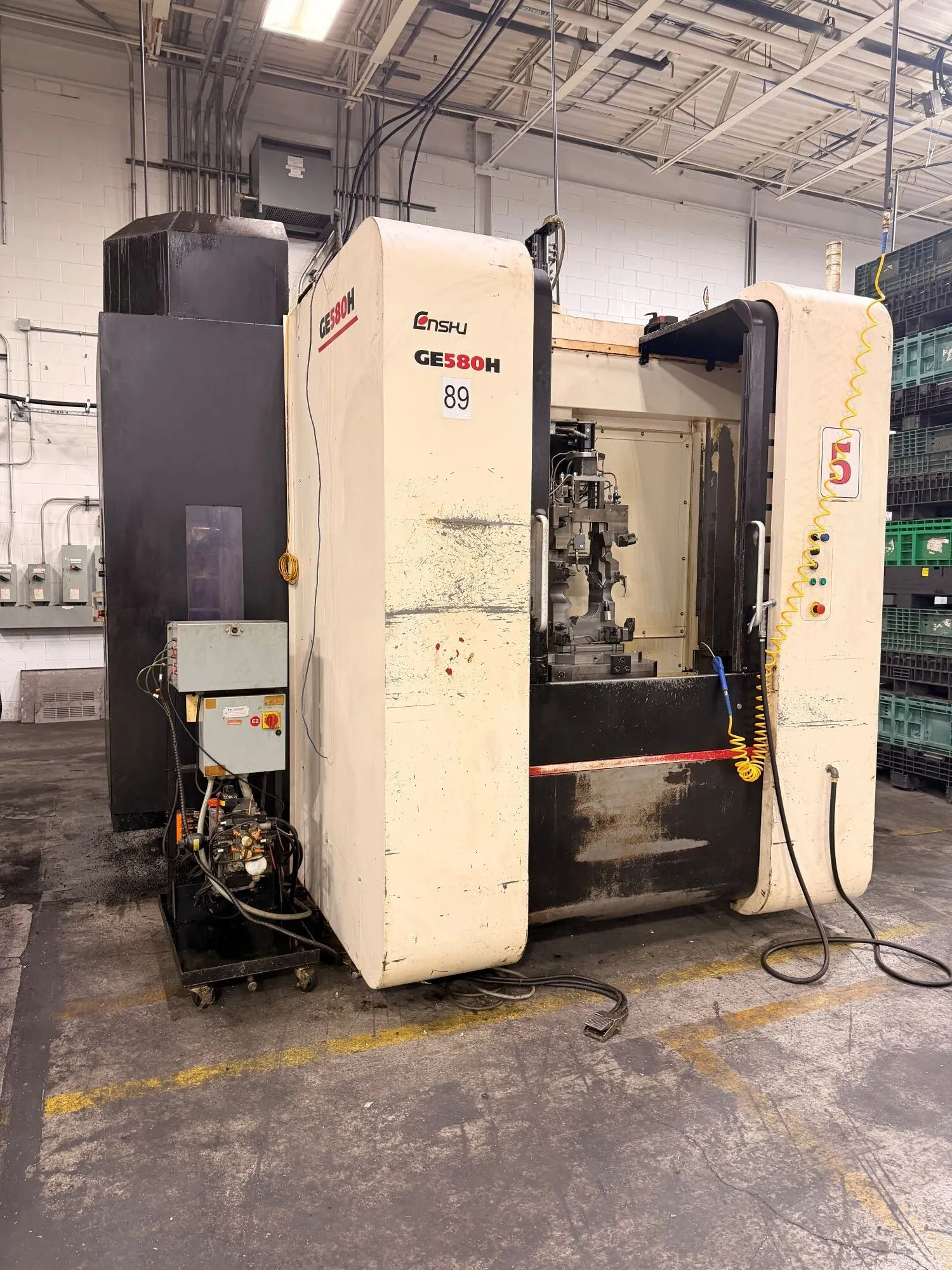

Enshu CNC Horizontal Machining Center
Model GE580H
Year 2014
Condition Used and in good running condition.
Dual-Pallet 19.7” x 19.7” (500mm x 500mm)
| X | 31.5" | 800.1 mm |
| Y | 31.5" | 800.1 mm |
| Z | 32.7" | 830.58 mm |
| Power | 60 hp | 44.7 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 40 | 40 |
| Taper | CAT-50 | CAT-50 |
| Pallet-W | 19.7" | 500.38 mm |
| Pallet-L | 19.7" | 500.38 mm |
| # Axis | 4 | 4 |
| Control | CNC (Fanuc 31i) | CNC (Fanuc 31i) |
| Dimensions | 232 x 129 x 123 | 232 x 129 x 123 |
Enshu CNC Horizontal Machining Center
Model GE580H
Year 2014
Condition Used and in good running condition.
Technical Specifications
Dual-Pallet 19.7” x 19.7” (500mm x 500mm)
Spindle Taper CAT-50
X Travel 31.5"
Y Travel 31.5"
Z Travel 32.7"
Rapid Traverse 2362 IPM
Pallet Capacity 1763 lbs
Spindle HP 60 HP
Spindle RPM 10000 RPM
ATC Magazine 40
Dimensions 232" x 129" x 123"
Equipped With
• Controller: Fanuc 31i - Model B
• Chip Conveyor
• High-pressure spindle through coolant
• Full 4th Axis
• Coolant tank
• Coolant motor
• Spindle Chiller
• Pallet Changer
• Hydraulic clamping unit
