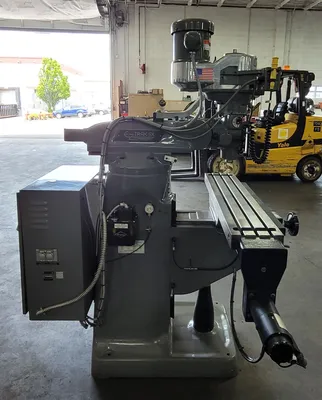

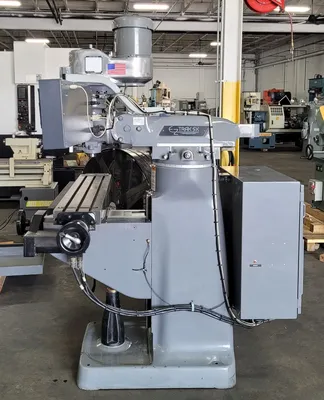

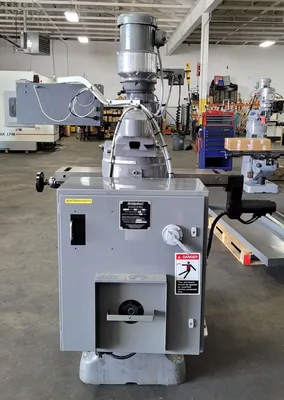

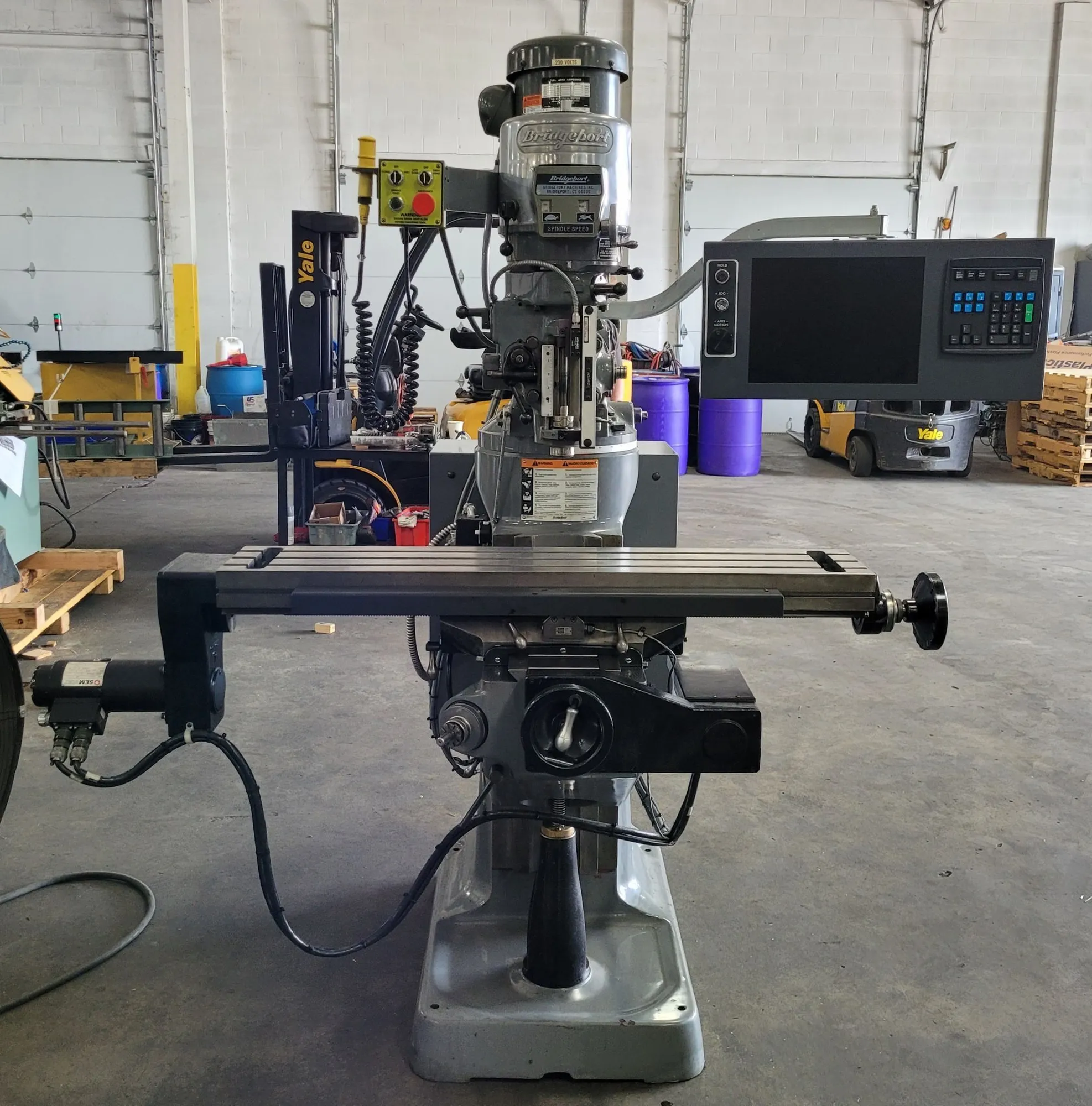

USED BRIDGEPORT EZ TRAK SX

Bridgeport Series 1 EZ Trak SX Vertical Mill,
Rebuilt 2HP Variable Speed Head,
R8 Taper Spindle,
Chrome Ways,
New Console,
New Led Screen,
New Keypad,
New USB Drive,
New Motherboard
New Static Hard Drive
New USB Drive
Bujir Auto Lube System,
R8 Collets
Table size: 9" x 48"
Longitudinal travel: 33.5"
Cross travel: 12"
Vertical travel of knee: 14"
Quill travel: 5"
Spindle speeds: 60 to 4200 RPM (infinitely variable)
Spindle quill feeds: 0.0015" – 0.003" – 0.006"
Ram travel: 12"
Positioning speed (X-Y axis): 100 inch / minute
Feed rate range (X-Y axis): 0.1 to 100 inch / minute
Throat: 6-3/4" to 18-3/4"
Distance table to spindle nose: 2-1/2" to 18-1/4"
Motor: 2 HP/1735 RPM

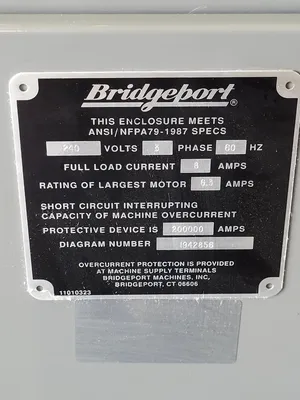

Volts: 230/460 Currently wired for 230V 3 phase
Phase: 3
Cycles: 60
Full load amps: 6.2/3.1
Approximate dimensions: 70" x 77" x 87" high
Approximate weight: 3,000 lbs.
