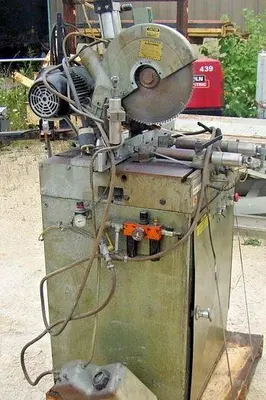

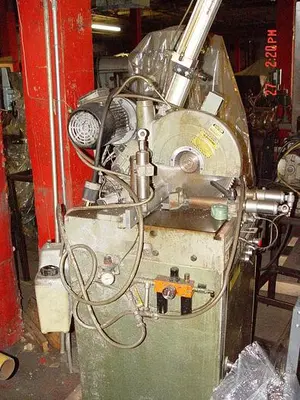

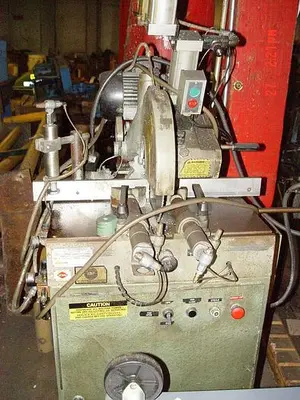

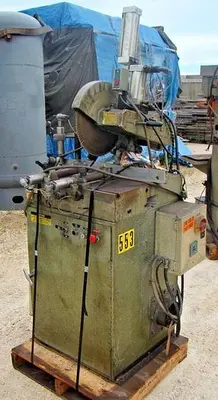

USED 1998 EMEGGI 350-S

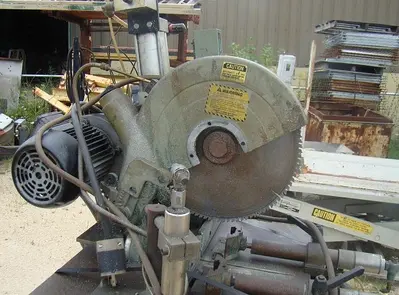

14" MG EMMEGi #350-S Semi-Automatic Cold SawTilting Head | Pneumatic Elevation & Clamping | 2-Speed MotorOverviewThe MG EMMEGi 350-S is a high-performance, Italian-engineered circular cold saw designed for heavy-duty fabrication and production environments. This Semi-Automatic variant is built to maximize throughput by automating the most labor-intensive parts of the cutting cycle. With pneumatic control over both the head descent and the material clamping, it ensures repeatable, burr-free cuts with minimal operator fatigue.🚀 Key Performance HighlightsSemi-Automatic Cycling: Features a pneumatic system that synchronizes head elevation and vise clamping for a fast, efficient production flow.Tilting Head Versatility: The robust saw head swivels 45° Left to 45° Right, allowing for precise miter cuts on a wide range of profiles.High-Torque Drive: Equipped with a 2-speed motor and an oil-bath reduction gearbox, providing the necessary power for cutting solids and heavy-walled tubing.Burr-Free Finish: Unlike abrasive saws, this HSS (High-Speed Steel) blade technology produces clean, cool-to-the-touch cuts that require no secondary finishing.📋 Technical SpecificationsBlade Diameter: 14" (350 mm)Spindle Speeds: 2 Speeds (Typically 40/80 RPM for steel or 500/1000 RPM for non-ferrous, depending on motor configuration)Motor: 2.1 - 3.0 kW (Approx. 2.8 - 4.0 HP)Power Requirements: 230V / 3-Phase / 60 HzMax Vise Opening: 4.7" (120 mm)Cutting Capacity (90°): 4.3" Round | 3.15" Square | 4.7" x 3.1" RectangleMachine Weight: ~618 lbs (280 kg)Footprint: Approx. 40" W x 47" D x 58" H🛠️ Included Features & EquipmentPneumatic Control System: Foot-pedal or push-button actuation for the clamping and cutting cycle.Double Locking Vise: Ensures maximum material stability on both sides of the blade for increased safety and accuracy.Integrated Coolant System: High-flow pump or mist lubrication unit to extend blade life and clear chips.Cast Iron Construction: Heavy-duty base and head casting for superior vibration dampening.Steel Pedestal Stand: Includes an integrated storage shelf and chip tray.Dealer Note: This MG EMMEGi 350-S is a "smart" step up for shops moving from manual pull-down saws to automated production. Known for its rigidity and simple maintenance, it is a reliable workhorse for structural steel, aluminum extrusions, and piping.

Machine type: Basic Miter Saw
Power source: Electric
Custom bundle: No
Bevel angle right: 45 degrees
Bevel: 45*
Modified item: No
Max blade diameter: 350mm / 14"
Bevel angle left: 45 degrees
Control: Semi-Automatic
Slide: No
Voltage: 230
* Blade Diameter: 14" (350 mm)
* Max Vise Opening: 4.7" (120 mm)
* Machine Weight: ~618 lbs (280 kg)
