USED WILTON 15''

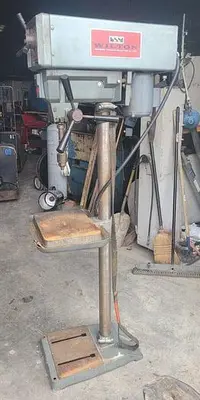

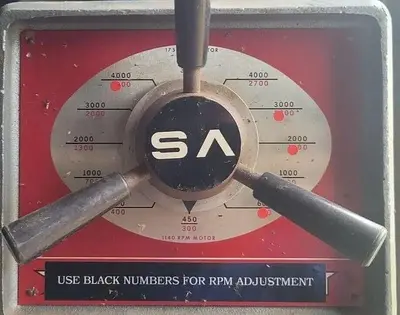

Wilton 15" VS Series Variable Speed Drill PressInfinitely Variable RPM | 6" Stroke | Heavy-Duty Industrial BuildOverviewThe Wilton 15" VS Series is a premier industrial drill press, prized for its mechanical variable speed drive and robust cast-iron construction. Designed for high-precision metalworking, this machine allows operators to change speeds instantly with the turn of a handwheel—no belt swaps required. Its standout feature is a massive 6-inch spindle travel, nearly double the stroke of standard 15-inch models, making it ideal for deep-hole drilling and heavy jigs.Technical SpecificationsSwing: 15" (Drills to center of 15" circle)Variable Speed Range: 400 – 5,000 RPM (Adjustable under power)Spindle Travel (Stroke): 6" (Extra-long for deep bores)Spindle Taper: MT-2 (Morse Taper #2)Column Diameter: 3" Heavy-walled steelMotor: 1 HP (Available in 115/230V or 230/460V 3-Phase)Table Size: 11" x 16" Ground surface with integrated rack-and-pinion raiserWeight: Approx. 346 lbsKey Performance HighlightsOn-the-Fly Speed Control: The Vari-Disk drive system provides constant torque and allows for precision RPM tuning to match specific drill diameters and material hardness.Precision Spindle Assembly: Supported by permanently lubricated, high-grade ball bearings for minimal runout and long-term accuracy.Rigid Construction: The heavy-duty cast iron head and oversized column provide excellent vibration dampening, ensuring cleaner holes and longer tool life.Production-Ready Table: Large work surface with T-slots and a tilting mechanism for versatile workpiece positioning.

Spindle speed: 4000 RPM
Machine type: Drill & Tap Press
Stand type: Floor
Power source: Electric
Battery included: No
Custom bundle: No
Drill travel: 6.00 in
Country of manufacture: United States
Drive type: Belt
Number of speed: Variable

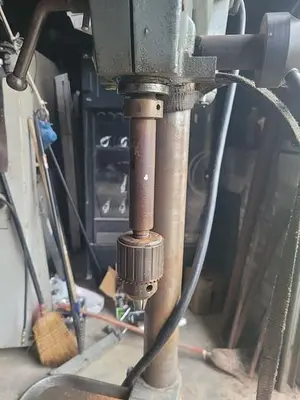

Spindle taper: 2MT
Modified item: No
Chuck size: 0.50 in
Control: Manual
Swing: 15.00 in

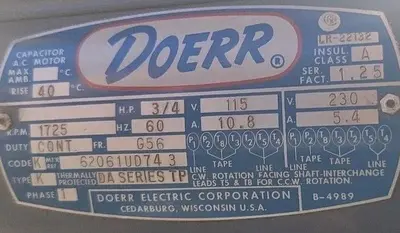

Voltage: 115/230V
Amperage: 5.4
Power: 0.75 hp
