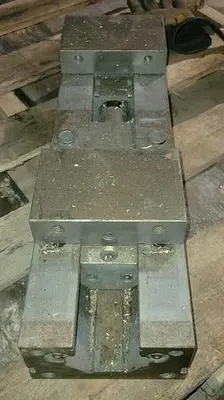

USED TOOLEX DS SERIES

Toolex DS600 Series Double Lock 6" Machine ViseManufacturer: TE-CO (Toolex) | Type: Double-Station | Model: DS600Professional OverviewThe Toolex DS600 is a premium, American-made workholding solution engineered for high-density CNC machining and production environments. Its "Double Lock" design allows operators to secure two workpieces simultaneously with a single handle, significantly increasing spindle uptime. Built with a unibody 80,000 PSI ductile iron frame, this vise provides extreme rigidity and the precision required for today’s tightest manufacturing tolerances.Technical SpecificationsJaw Width: 6.00" (Nominal 5.94").Jaw Opening: Up to 4.00" per station (8.00" total capacity).Clamping Force: 0 to 12,000 lbs of repeatable pressure.Bed Accuracy: Ways flame-hardened to 40 R/C; ground to +/- .0005".Body Dimensions: 20.5" L x 6.0" W x 3.25" H.Weight: 68 lbs (Unibody construction).Key Performance FeaturesSnapLock Technology: The exclusive SnapLock Knuckle system allows carrier and soft jaws to be attached, removed, or indexed in seconds without specialized tools, virtually eliminating downtime during setup changes.Automatic Offset Mechanism: Allows for nonsimultaneous clamping of two parts that differ in size by up to .250", ensuring both workpieces are held with equal security regardless of raw material variations.Optimized Table Space: The compact, modular unibody design allows multiple DS600 units to be mounted side-by-side with zero gap, maximizing the work zone on vertical and horizontal machining centers.Three-Piece Chip Shields: Unique telescoping shields wrap around the internal mechanism, preventing swarf and coolant debris from fouling the clamping screw for reduced maintenance.Precision Locating: Features four precision dowel pin holes on the bottom surface for rapid, accurate mounting to grid plates and pallets.

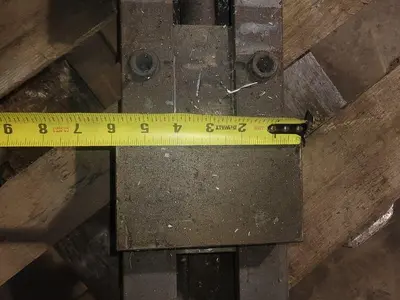

Jaw width: 6 in
Jaw opening capacity: 4 in
