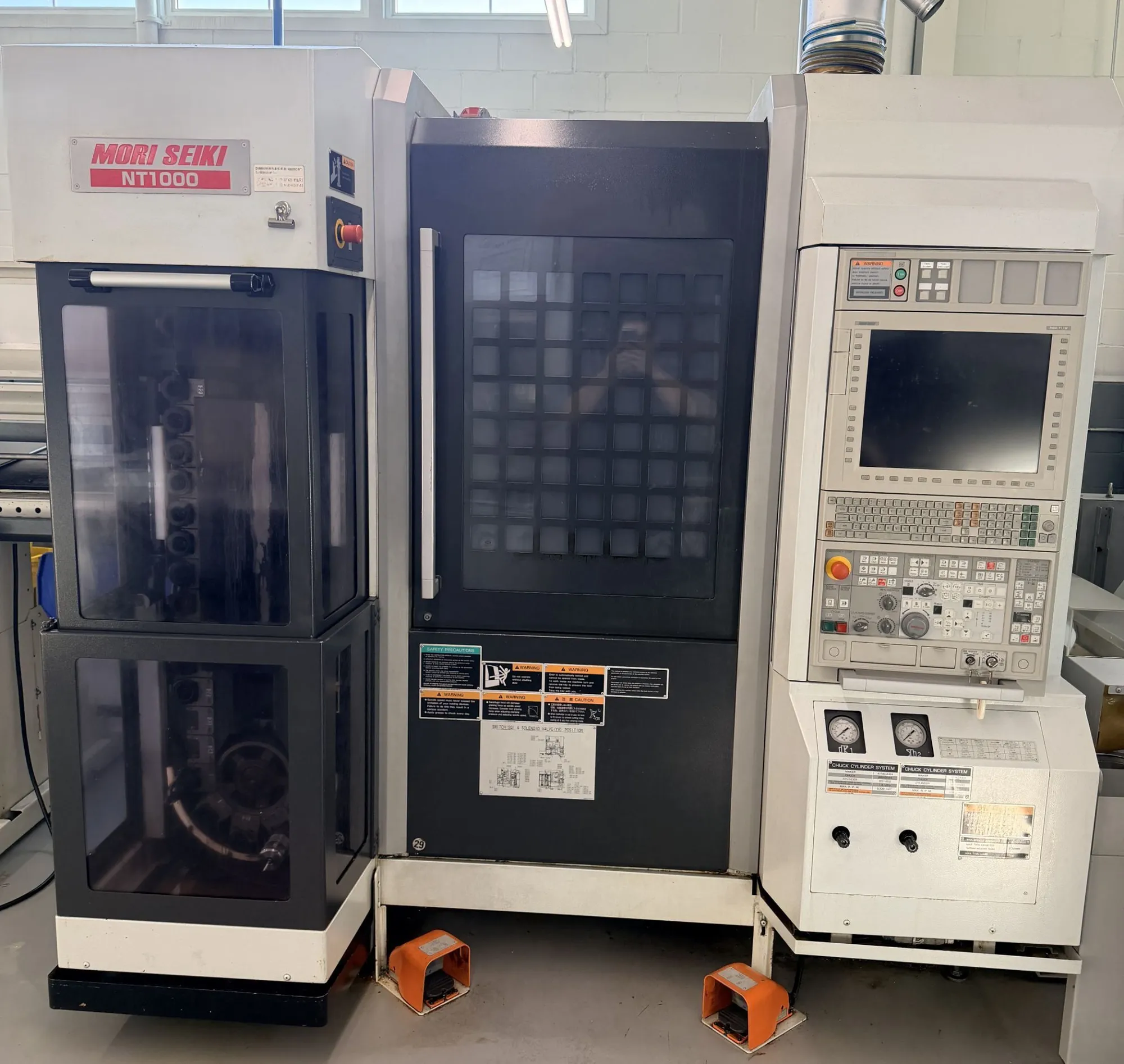

USED 2010 MORI SEIKI NT 1000 SZ

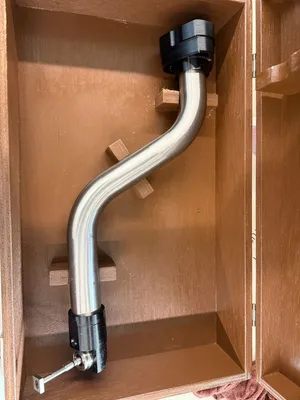

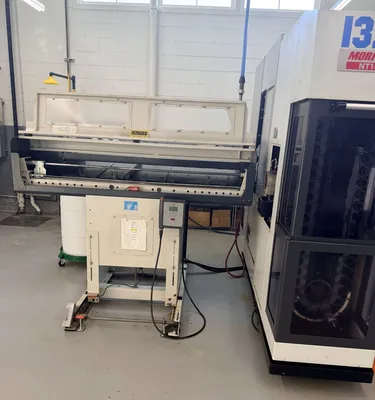

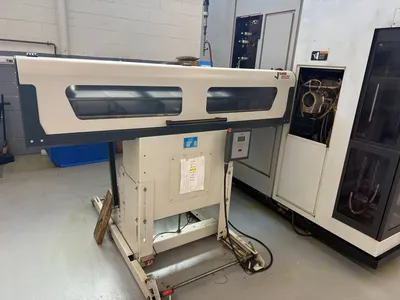

MORI SEIKI NT-1000/SZ B-AXIS MILL-TURN Center (used) New 2010 w/LNS Quick Load Servo S2 magazine bar loader, Renishaw Probe, air blast.

Maximum Swing Of Work Piece: 14.5″
Swing Over Cross Slide: 14.5”, Turret 2 11.8”
Maximum Turning Length: 16.6”
X – Axis Travel: 15″
Y – Axis Travel: + / – 4.1”
Z – Axis Travel: 18.1″ + 6.1″
X – Axis Travel: TRT 2 6.1″
Z – Axis Travel: TRT 2 24″
C – Axis Travel: Main / Sub .0001 Deg.
B – Axis Min. Index Angle / Index Range: -120 – +120 DEGREE
B – Axis Spindle Speed: HSC 20,000 RPM
Tool Spindle: 12 HP
Number Of Tool For Tool Spindle: 38 ATC
Spindle Nose: No 1, No 2 A2-5 / G6 Flat Nose
Hole Through Spindle: No 1, No 2 2.4” / 2.2”
Bar Work Capacity: No. 1, No 2 2.0″/1.5”
Main Spindle Motor: 15 HP
Sub Spindle Motor :10 HP
Spindle Speeds: No 1, No 2 6000 / 1000 RPM
Rapid Traverse Rate: X, Y, Z, A 945, 945, 629, 300 IPM
Turret Configuration: 10
Turret Indexing Time: .26 Sec.
Machine Weight: 19,690 LBS.
MORI SEIKI NTX1000/SZ
5-Axis CNC Mill-Turn Center
Year: 2010
Control: FANUC FS31i-A5 (MAPPS IV)
________________________________________
GENERAL SPECIFICATIONS

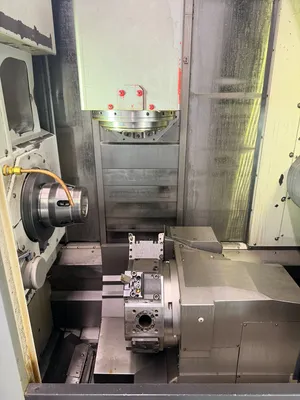

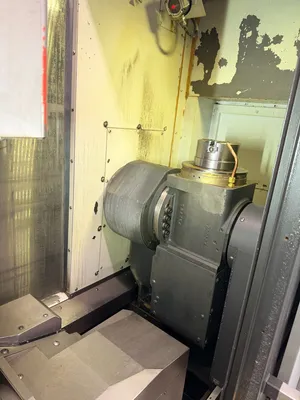

• Machine Type: Multi-Tasking CNC Turning Center with B-Axis Milling Head
• Simultaneous Axis Capability: 5-Axis
• Sub-Spindle: Yes
• Lower Turret: Yes (10-Station)
• Tool Interface: Capto C5
________________________________________
CAPACITY
• Max Turning Diameter: Ø 14.5" (370 mm)
• Max Turning Length: 16.7" (424 mm)
• Bar Capacity: 2.05" (52 mm)
• Chuck Size: 8" Main & Sub
________________________________________
AXIS TRAVELS
• X-Axis: 15.0" (380 mm)
• Y-Axis: ±4.1" (±105 mm)
• Z-Axis: 31.5" (800 mm)
• B-Axis: ±120° (0.0001° Indexing)
• Lower Turret Travel: X 6.3" / Z 28.7"
________________________________________
SPINDLES
Main Spindle
• Speed: 6,000 RPM
• Spindle Bore: 2.87" (73 mm)
• Power: 15 HP (11 kW)
Sub Spindle
• Speed: 6,000 RPM
• Power: 10 HP (7.5 kW)
Milling Spindle
• Speed: 12,000 RPM
• Power: 12 HP (9 kW)
• Tool Taper: Capto C5
________________________________________
TOOLING SYSTEM
• Tool Magazine Capacity: 76 Stations
• Max Tool Diameter:
o 2.75" (70 mm) with adjacent tools
o 5.1" (130 mm) without adjacent tools
• Max Tool Length: 9.8" (250 mm)
• Max Tool Weight: 11 lbs (5 kg)
________________________________________
RAPID TRAVERSE RATES
• X / Y: 1,575 IPM (40 m/min)
• Z: 1,970 IPM (50 m/min)
________________________________________
MACHINE DIMENSIONS
• Approx Weight: 19,000 lbs (8,600 kg)
• Floor Space: Approx. 8.2' x 8.2'
• Power Requirement: Approx. 48 kVA
________________________________________
STANDARD FEATURES
• MAPPS IV Control
• Full 5-Axis Interpolation
• Sub-Spindle
• Lower Turret
• Automatic Tool Changer
• Chip Conveyor

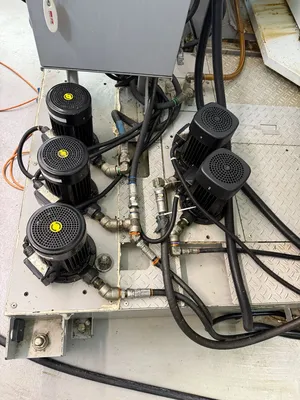

• Coolant System
• Parts Catcher
• Foot Pedal Controls

8" KITAGAWA CHUCK ON MAIN SPINDLE yes
5" KITAGAWA CHUCK ON SUB SPINDLE Yes
COLLET CHUCKS Yes Royal

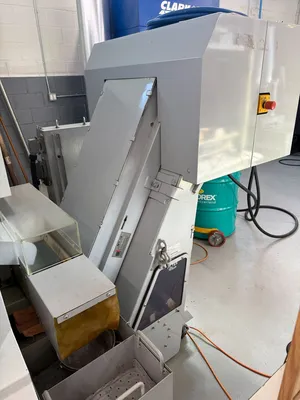

STANDARD COOLANT FILTRATION WITH CHIP CONVEYOR Yes
TOOL PRESETTER Yes
PARTS CONVEYOR Yes
